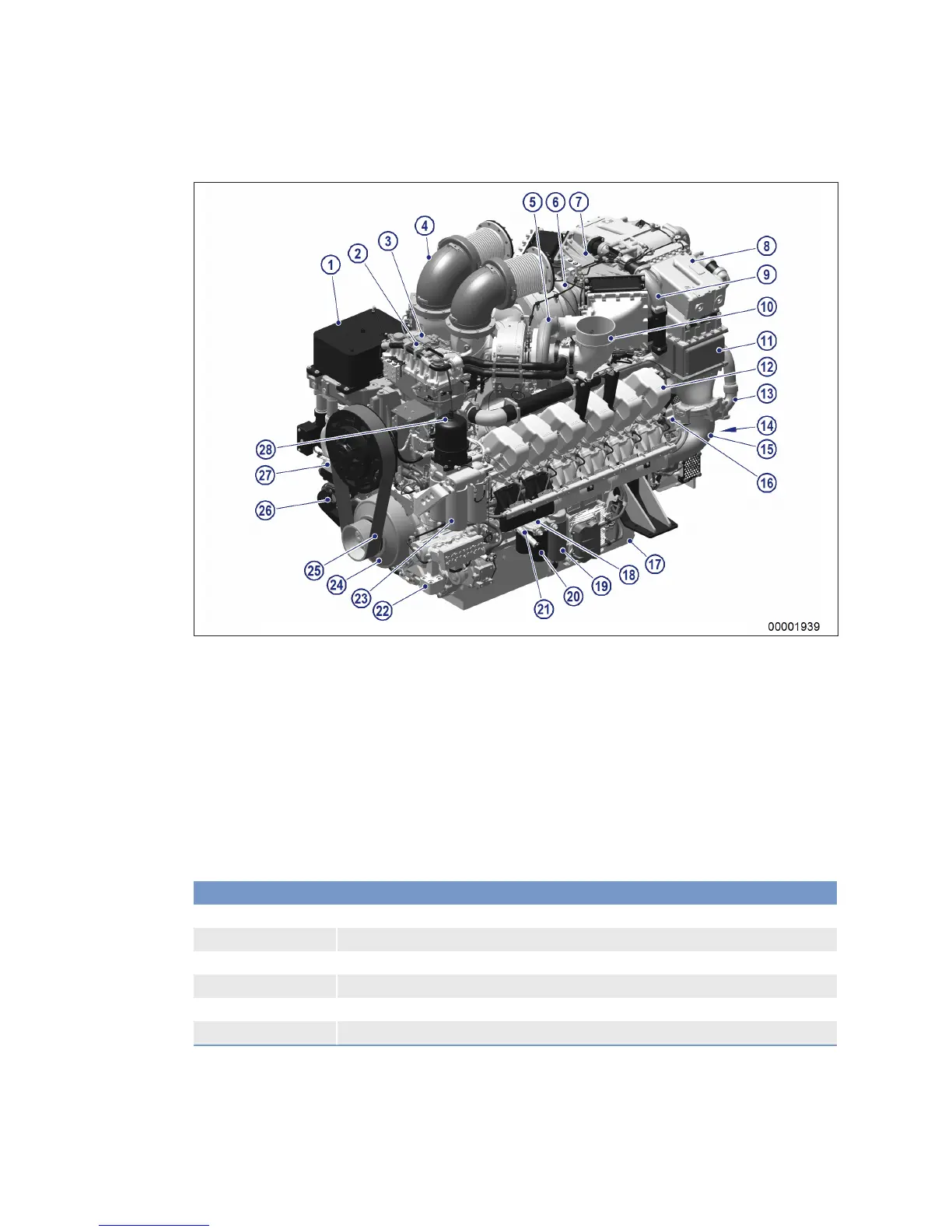

2.2 Engine – Overview
1 Oil heat exchanger
2 Crankcase breather
3 Cable harness holder
4 Exhaust outlet
5 Exhaust turbocharger (LP)
6 Exhaust turbocharger (HP)
7 Charge-air cooler (low
pressure)
8 EGR cooler
9 Engine coolant line
10 Air intake
11 Engine mounting
12 Cylinder head
13 EGR line
14 Flywheel
15 Charge-air line
16 Starter
17 Oil pan
18 Fuel filter head
19 Supplementary fuel filter
20 Fuel filter
21 Fuel priming pump
22 Engine mounting
23 Lube oil filter
24 Vibration damper
25 Fan drive
26 Auxiliary PTO
27 Battery-charging generator
28 Centrifugal oil filter
Engine model designation
Explanation of engine model designation 12 V 4000 C64
12 Number of cylinders
V Cylinder arrangement: V engine
4000 Series
C Application: Construction and Industrial, mobile
6 Application segment: 6
4 Design index
