Item Findings Action

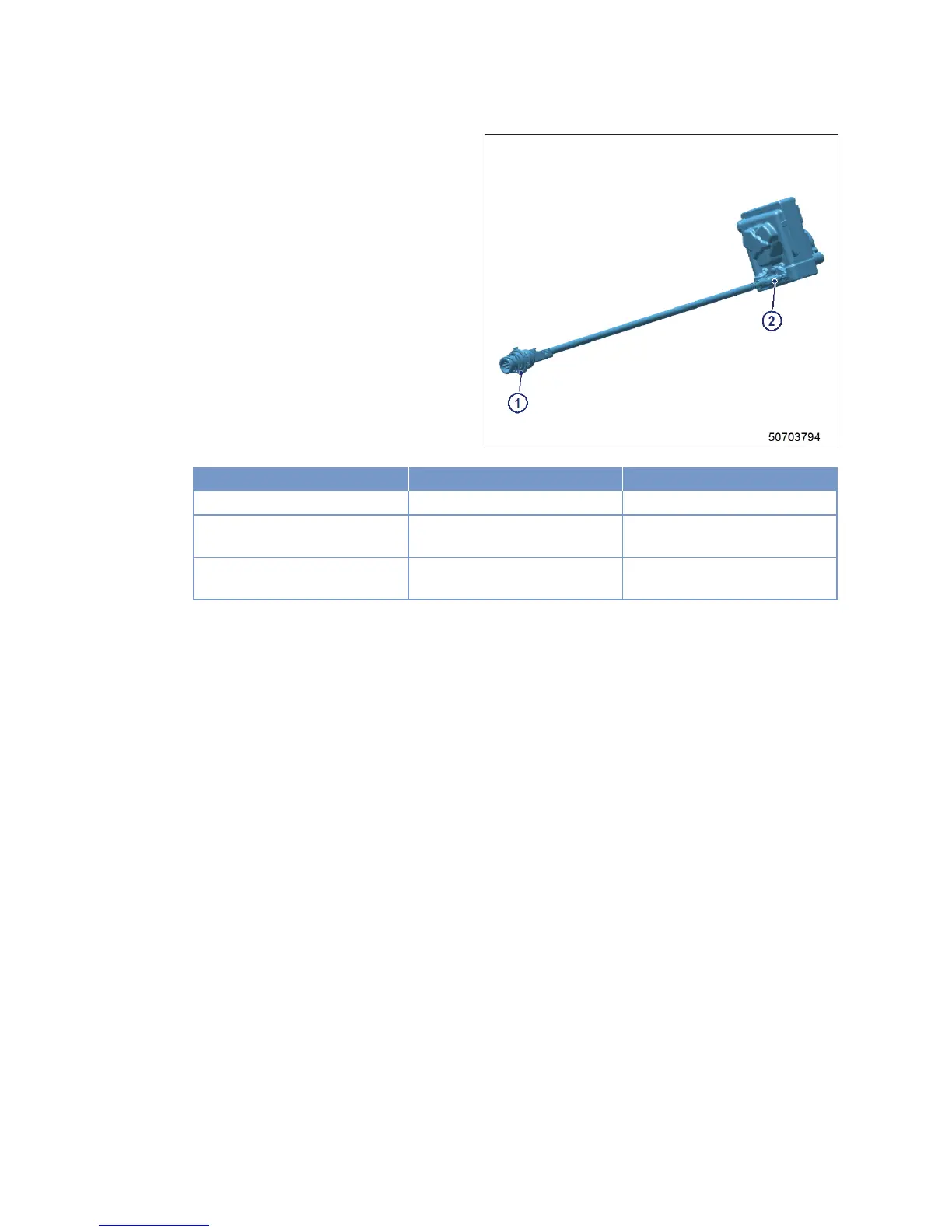

Connector (1) Damaged Replace
Actuator cable connection (2) Damaged, protective cap not seat-
ed correctly.
Replace, fit protective cap correct-
ly.
Actuator general condition Heavily contaminated by black ex-
haust.
Replace
Checking actuators with DiaSys®
Note: For installation position of exhaust flaps, refer to overview (→ Page 144).
1. Switch on ECU.
2. Carry out actuator test with DiaSys® (teach-in routine) (→ manufacturer's documentation).
