TRANSPORTATION AND TOWING OF THE TRACTOR
The tractors shall be transported by rail-
way transport, on trucks and their trailers
as well as by towing and under its own
power.
When transporting the tractors:
Set the gearbox levers to the first gear;
Apply the parking/reserve brake;
Fasten the tractor to the platform with
the wire 0.3-5 mm, chains and guy
lines.
When handling the tractors, use the hoist
mechanisms with the lifting capacity of at
least 10 tf.

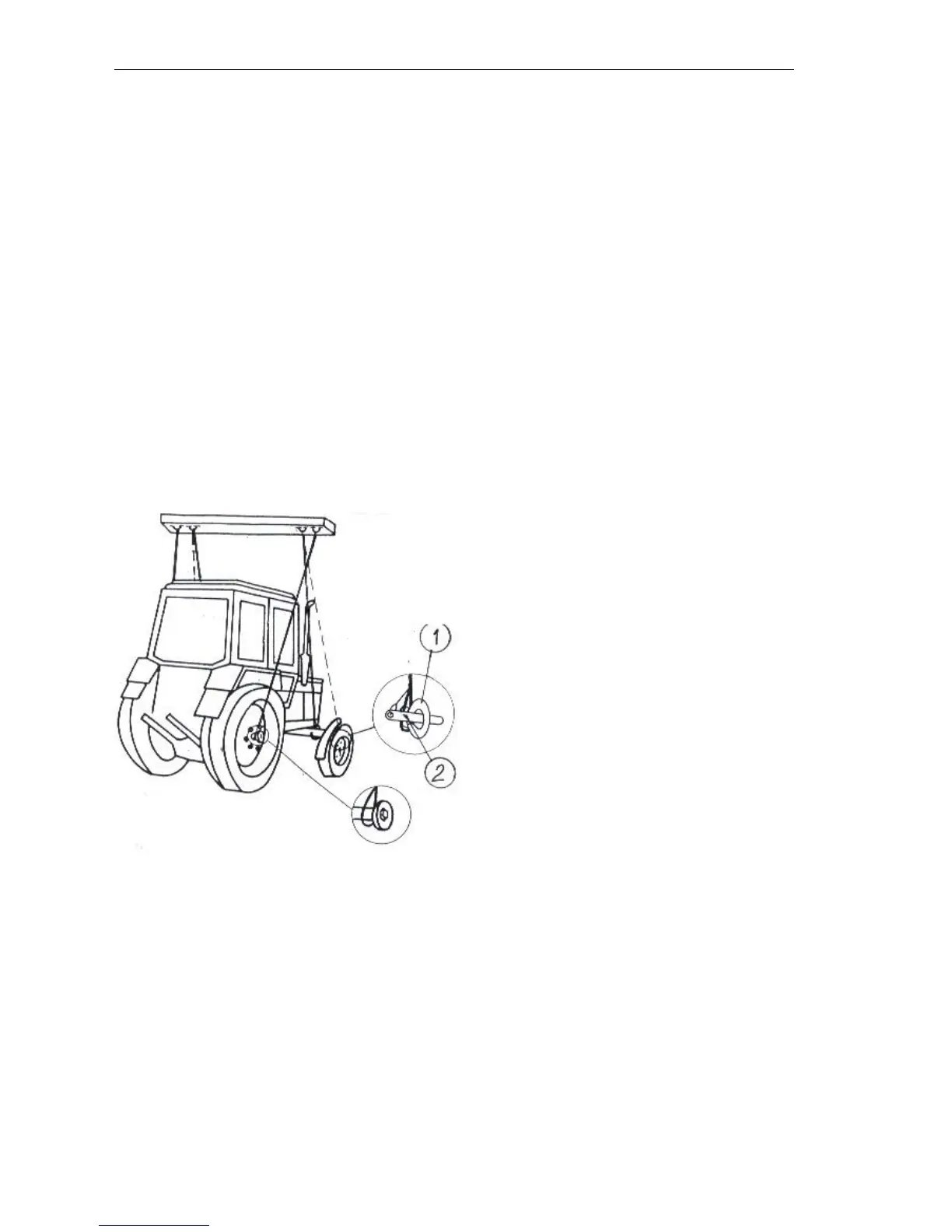

The ropes should be fastened at the front
axle beam or eye-nut (1) and at the half-
axles of the rear wheels as shown in the
diagram below. When fastening the ropes
by the eye-nut (1), draw the harness onto
the eye-nut body and fix it by means of a
stopper (2) through the eye of the eye-
nut.
It is allowed to tow the tractor with inop-
erative HPS pump at the speed of not
more than 10 km/h speed to a distance of
up to 5 km.
The eye fastened to the front ballast
weights and to the bracket of the weights
is provided for fastening the towing rope.
When towing the tractor, observe strictly
road regulations.
Attention! When being lifted by the
eye nuts, the tractor can move for-
ward (backward) to the distance of up
to 1.5 m.
It is forbidden to use tow clamp for lifting
the tractor.
It is strictly forbidden to tow FDA tractor
with the front wheels lifted.
