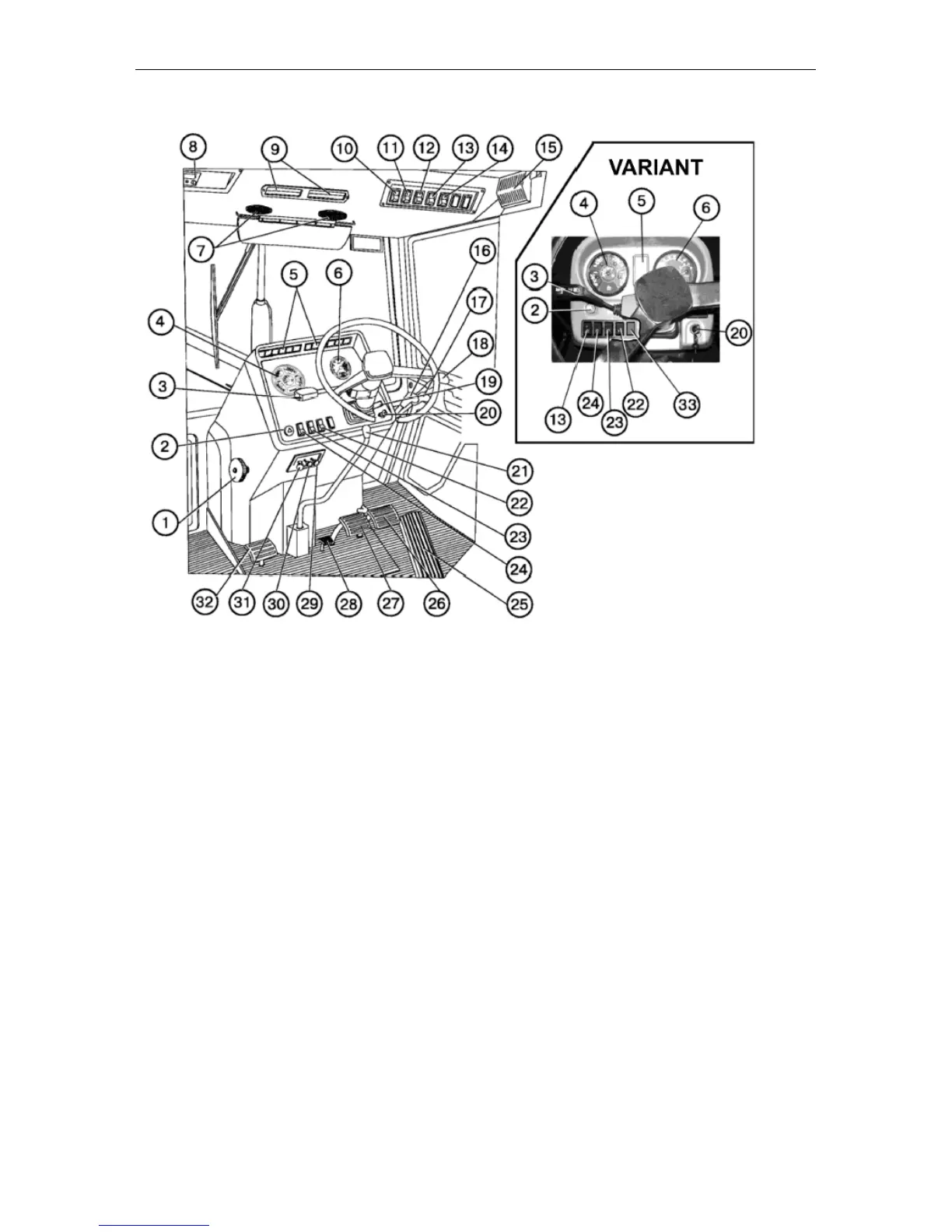

CONTROLS AND INSTRUMENTATION
1. Cooling system radiator shutter con-
trol.
2 . Emergency control lamps switch.
3 . Steering-wheel-mounted multifunction
switch (turn, turn indicators, up-
per/lower beam) .
4. Combination meter.
5. Control lamps block.
6 . Electric tachospeedometer.
7 . Air distributors.
8 . Radio receiver (if installed) .
9 . Recirculation shutters.
10. Windscreen wiper switch.
11. Cab fan and heater switch.
12. Rear working lights switch.
1 3 . Front working lights switch.
1 4 . Road-train sign lighting switch.
15. Cab light switch.
16. Control of the left-side outputs of the
hydraulic system.
17. Control of the right-side outputs of
the hydraulic system.
18. Control of the left rear outputs of the
hydraulic system.
1 9 . Tachospeedometer control board.
2 0 . Starter and instrumentation switch.
21. Control of the step-down reduction
gear and shuttle gear (if installed) .
2 2 . Starting aid switch (for tractors
equipped with an electric torch pre-
heater).
2 3 . Windscreen washer switch.
2 4 . Clearance lights and headlights
switch.
2 5 . Fuel feed control pedal.
2 6 . Right service brake pedal.
2 7 . Left service brake pedal.
2 8 . Rear axle differential lock control.
29. Steering column inclination control.
30. Engine shutdown cord handle
31. Cab heater valve control (if installed).
32. Clutch pedal.
33. Plug.
