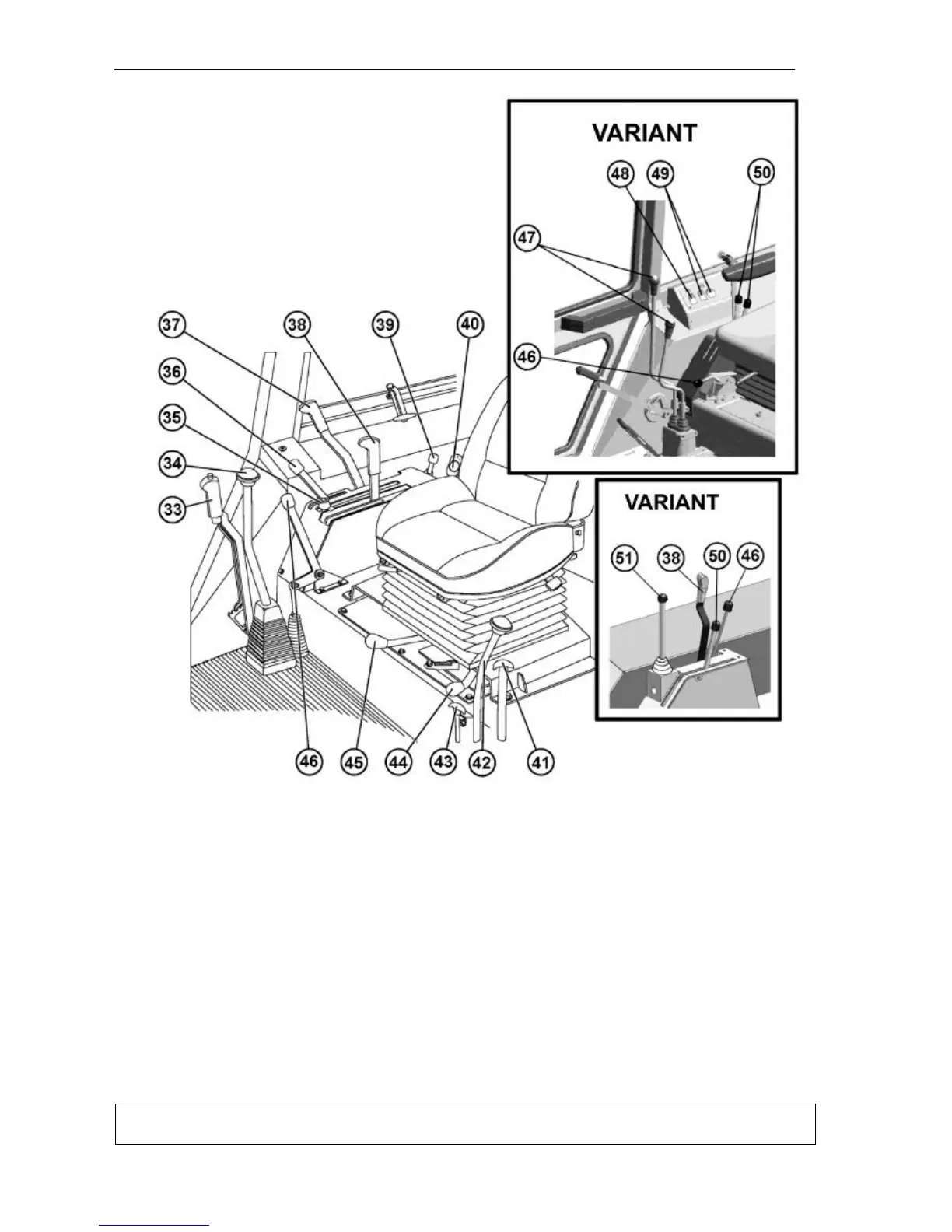

33. Parking brake lever.
34. Gearbox control lever.
35. Stop bumper of power governor con-
trol lever.
36. Fuel feed control arm.
37. PTO control lever.
38. Power governor control arm.
39. Signal switch arm of power and posi-
tion control sensors (if installed).
40. SB switch (on the MTZ-
900.3/920.3/950.3/952.3 tractors, the SB
switch is located under the bonnet in the
SB zone)
41. Speed-reducer gear switch arm (if
installed) .
42. Speed-reducer gear range switch
arm (if installed).
43. Control handle of the hydraulic hook
claws.
44. PTO switch arm (independ-
ent/synchronized).
45. Arm for fixing the hinging mechanism
in the lifted position (version with a power
governor) .
46. FDA drive control arm.
47. Gearbox control levers.
48. Rear axle differential lock control
49. PTO control
50. Hydraulic hoist control levers
51. Joy stick for remote control of the hy -
draulic system distributor (if installed)
