Fuses

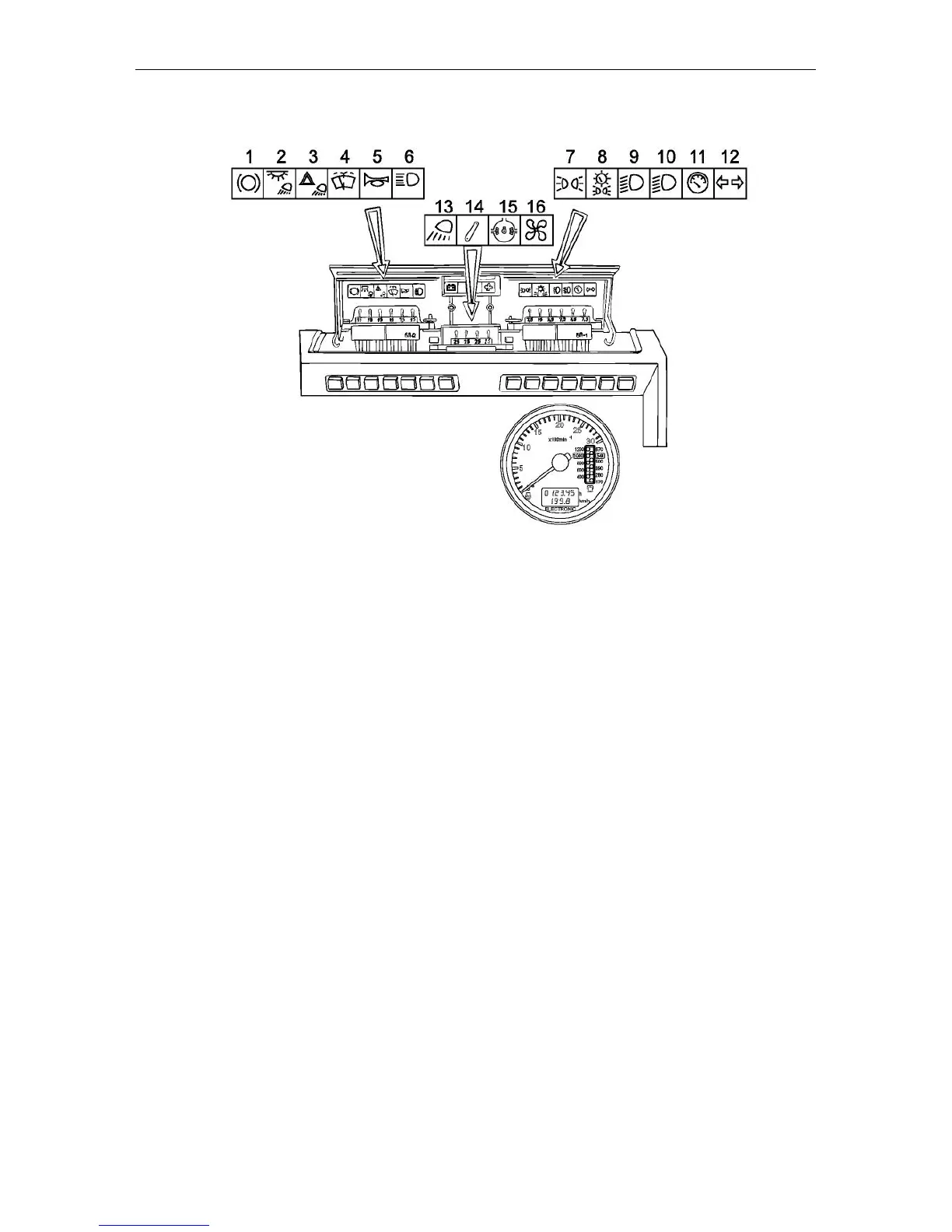

Three electric circuit fuse boxes are in-
stalled in the dashboard. To get access
to the fuses, remove the screw on the
dashboard cover and open it.
The fuses protect the following electric
circuits of the tractor against overloads:
1 – Braking signal (15 A);
2 – Cab light and rear working lights ( 1 5
A) ;
3 – Fault signalling (15 A);
4 – Windscreen wiper and washer ( 15
A) ;
5 – Horn (7.5 A);
6 – Upper beam of the road headlights
(15 A);
7 – Left clearance lights (7.5 A);
8 – Right clearance lights and backlights
of the dashboard and registration plate
(15 A) ;
9 – Lower beam of the left road head-
light (7.5 A) ;
10 – Lower beam of the right road head-
light (7.5 A) ;
11 – Instrumentation, control lamps
block, parking brake indicator (7.5
A);
1 2 – Turn indicator relay (7.5 A) ;
13 – Front working lights (25 A);
14 – HMS supply (25 A);
15 – Side board supply (PTO, DL) (15
A) ;
16 – Heating system fan (25 A).
The storage battery charging circuit is
protected with the fuse rated at 60 A.
WARNING! To prevent the electric wir-
ing from burning, never apply fuses of
higher current rating than specified
above. If the fuse blows often, detect
the reason and eliminate it.
