Controls and Instrumentation
Rear PTO control
Switch of the independent and syn-
chronized drive of the rear PTO

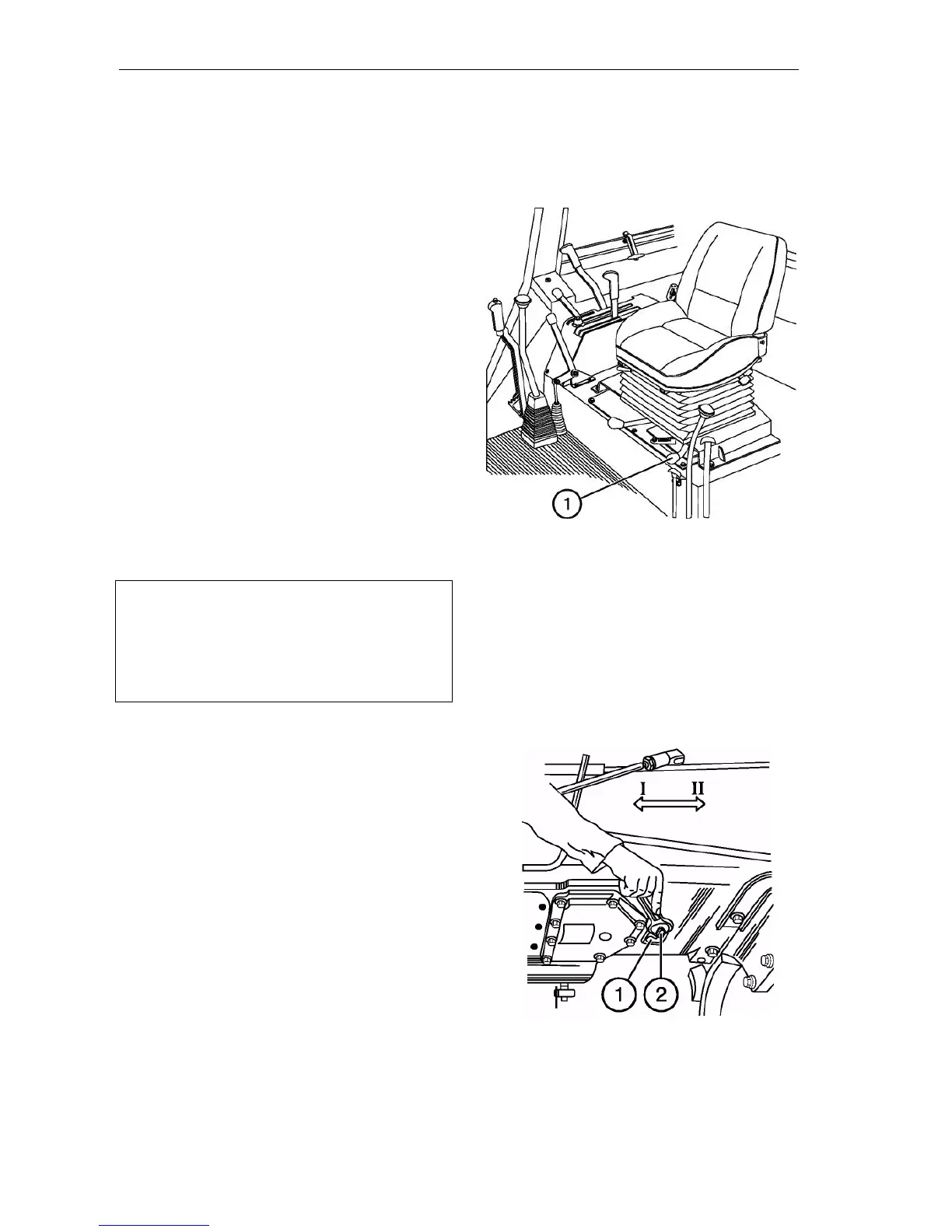

Lever (1) has three positions:
• “PTO independent drive ON” – right-
most position;
• “PTO synchronized drive ON” – left-
most;
• “OFF” – mid position.
To engage the synchronized drive, pro-
ceed as follows:
• Start the engine;
• Step on the clutch pedal up to the
stop and put in the 1
st
or 2
nd
gear;
• release slowly the clutch pedal and
move simultaneously the lever (1) to
the leftmost position.
IMPORTANT! Use the synchronous
PTO drive in lower gears in the lowest
gears of the 1
st
and 2
n d
gearbox ranges
at the tractor motion speed not more
than 8 km/h. Otherwise power transmis-
sion can be damaged.
Switch of the 2-speed independ-
ent drive of the PTO (2)
The shifter arm (2) of PTO independ-
ent drive has two positions:
• I – 540 rpm – extreme, counter-
clockwise;
• II – 1000 rpm – extreme, clockwise.
To set the required PTO speed, release
bolt (1), rotate the shifter arm (2) to the I
or II position and retighten the bolt (1).
