Compressor control

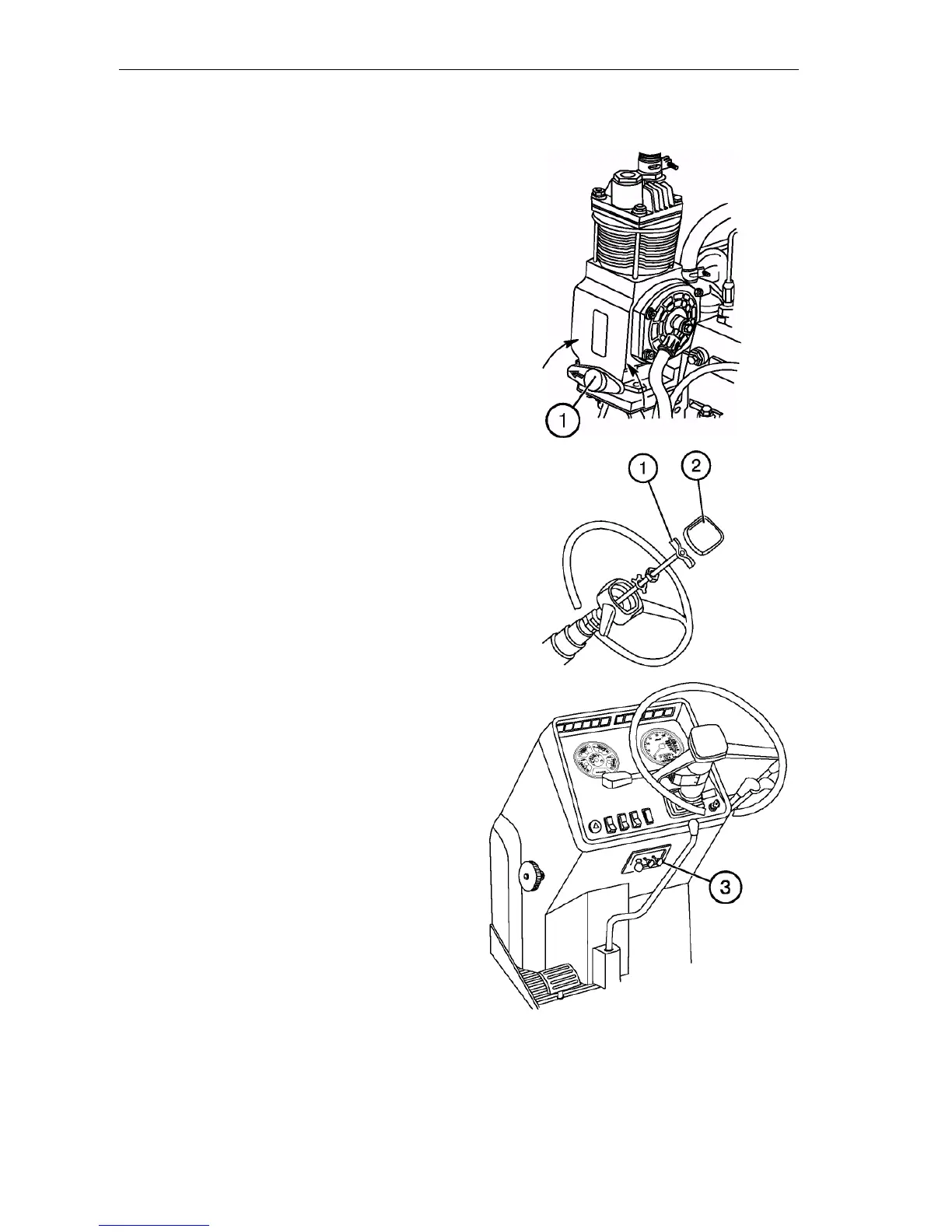

The handle (1) has two positions:
• “Compressor ON” – when turning
the handle so that the arrow on the
arm would be directed backwards
with respect to tractor motion;
• “Compressor OFF” – when turning
the handle to 180 so that the arrow
would be directed forward with re-
spect to tractor motion.
Changing the steering wheel position
To change the position of the steering
wheel by height:
• Remove the cover (2);
• Unscrew the clamp (1) by 3…5 turns;
• Move the wheel to the required posi-
tion;
• Tighten the clamp (1) by hand and
refit the cover (2).
NOTE: The steering wheel adjustment
range by height is 100 mm.
The steering column can be inclined to
four different positions from 25 to 40
with the step of 5. To incline the steering
column, pull the rod (3).
