PRODUCT OVERVIEW
Side Panels
The device has connectors on either side. The figure that follows shows the side which has a SIM card holder, as
well as Wi-Fi, Auxiliary, GPS and cellular antenna connectors. It also has a reset button. Depending on the model of
your device, the following items may or may not appear:
■ Aux connector
■ GPS connector
■ Wi-Fi connector
■ SIM card slot.

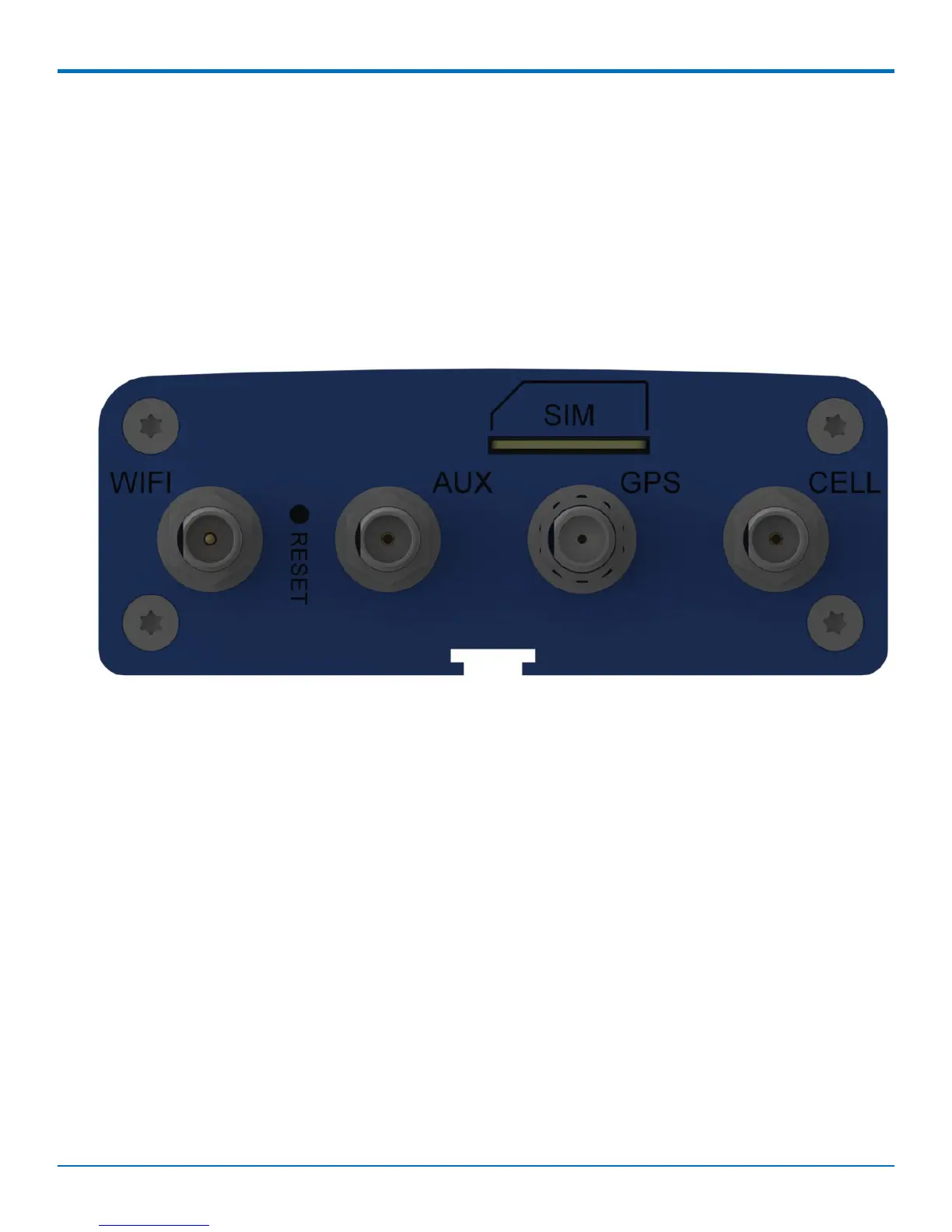

A side panel of the device follows:
Not all models have a GPS connector.
The figure that follows shows the other side of the device.
8 MultiConnect
®
rCell 100 Series Router User Guide
