M120

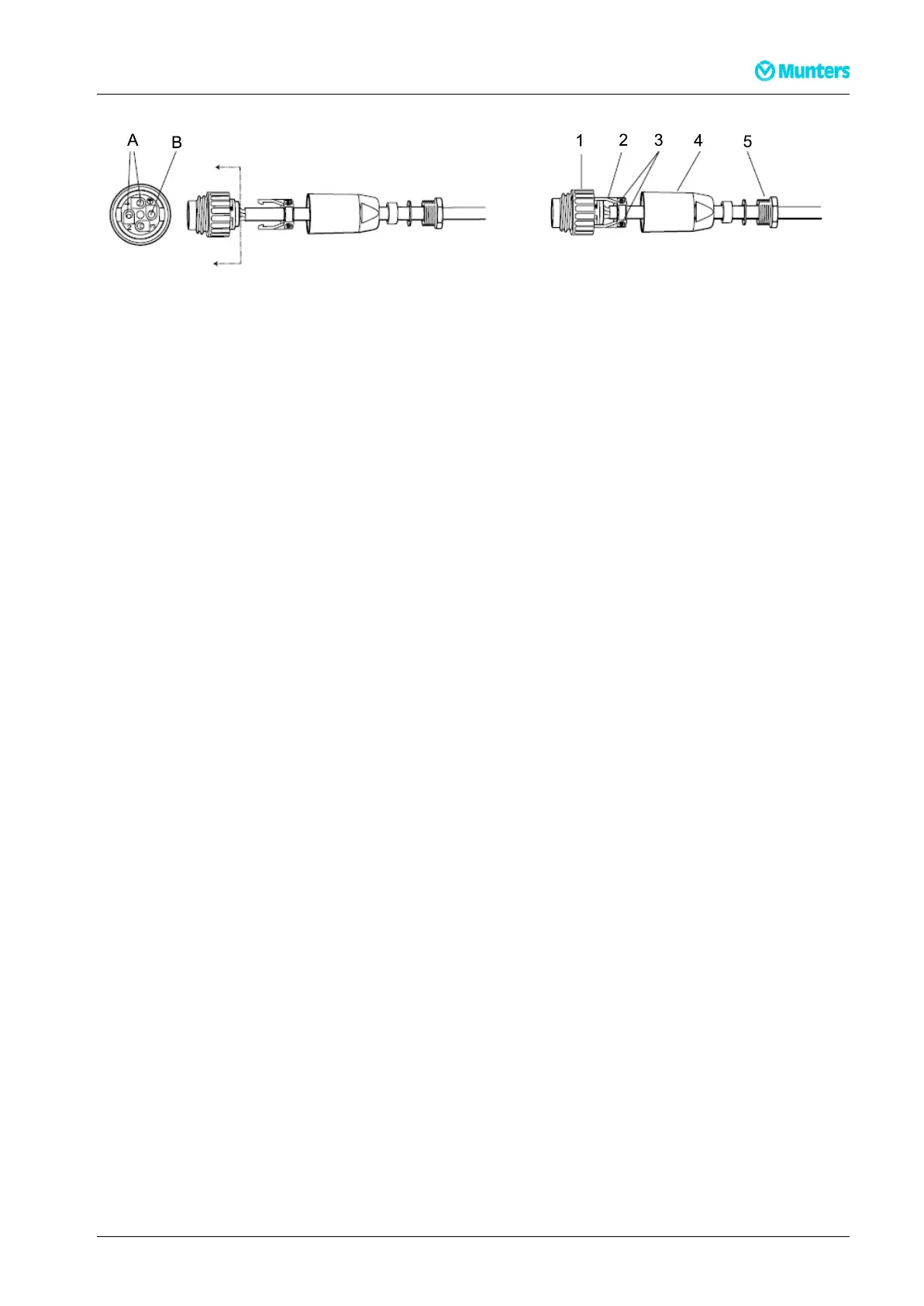

Figure4.7Connectionofleadsandhumidistatconnectionkitassembly
A-LeadconnectionsB-Screenconnections
1.Connecttheleadstopins1and2,andthescreentotheearthpin.Leadconnections
2.Afxtheterminal(2)totheplug(1)
3.Tightentheterminalscrews(3)
4.Afxthecover(4)totheplug(1)
5.Afxtheange(5)tothecover(4)
190TGB-1008-H1402Installation10
