Munters M120 - Filter Replacement

M120
6.3Filterreplacement
A
B
A.Screw
B.Cover
C.Grating
D.Retainer
E.Filter(articleno.19013498)
F.Faninletcone
B
C
D
E
F
C

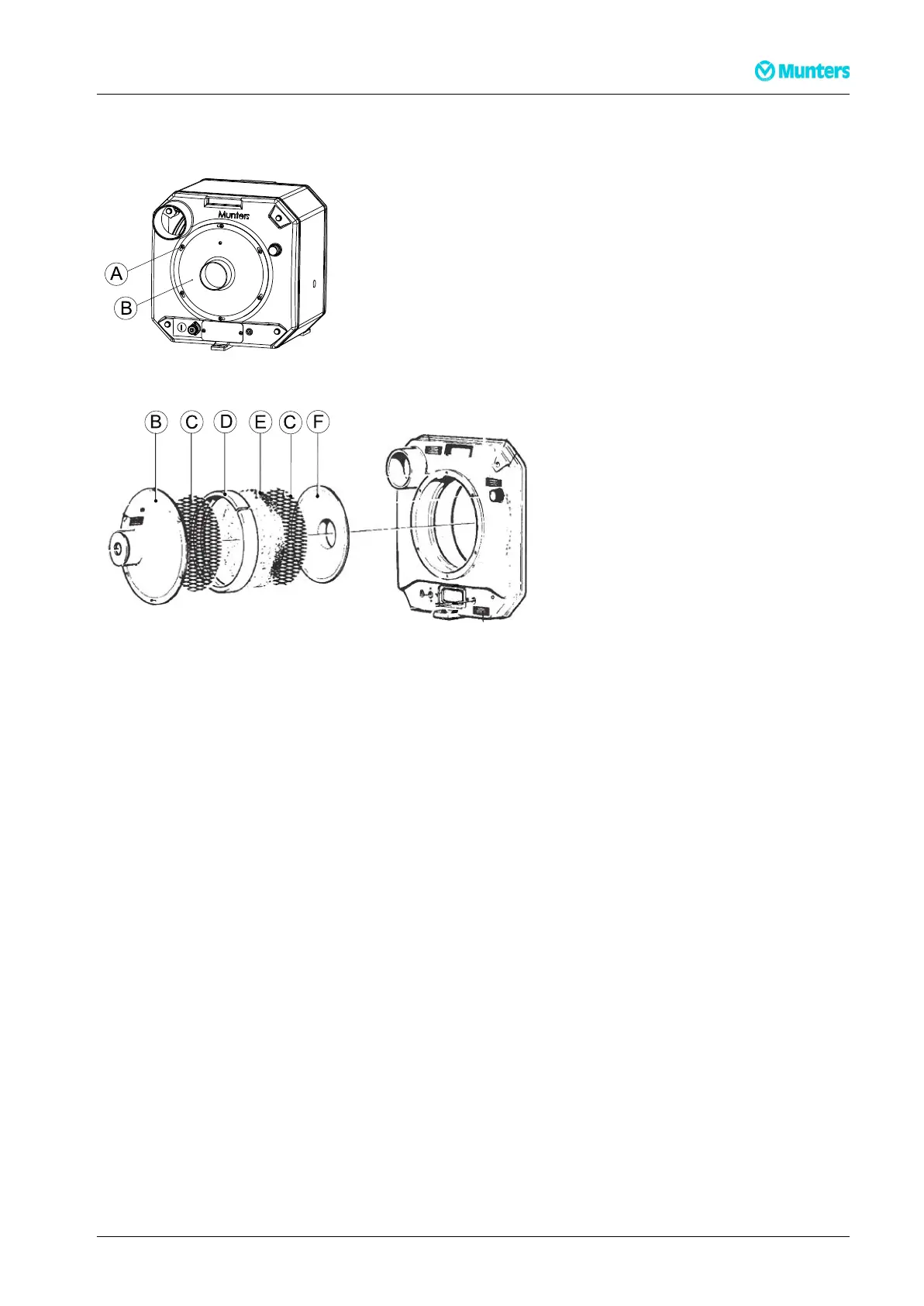

Figure6.1Filterassembly(reactivationside)
1.Removethescrews(A)holdingthecover.
2.Removethecover(B)andtakeouttheltercassette(C,D,E).
3.Releasetheretainer(D)andremovethelter(E)fromthegrating(C).
4.Cleanthegrating,retainerandcover.
5.Mountthenewlterandgratingintheretainer.
6.Mounttheltercassetteandtightenthescrews(A).
7.Repeattheprocedurefortheprocesslter.
