6.9 Airfilterreplacement
MX² 30
MX² 35-95

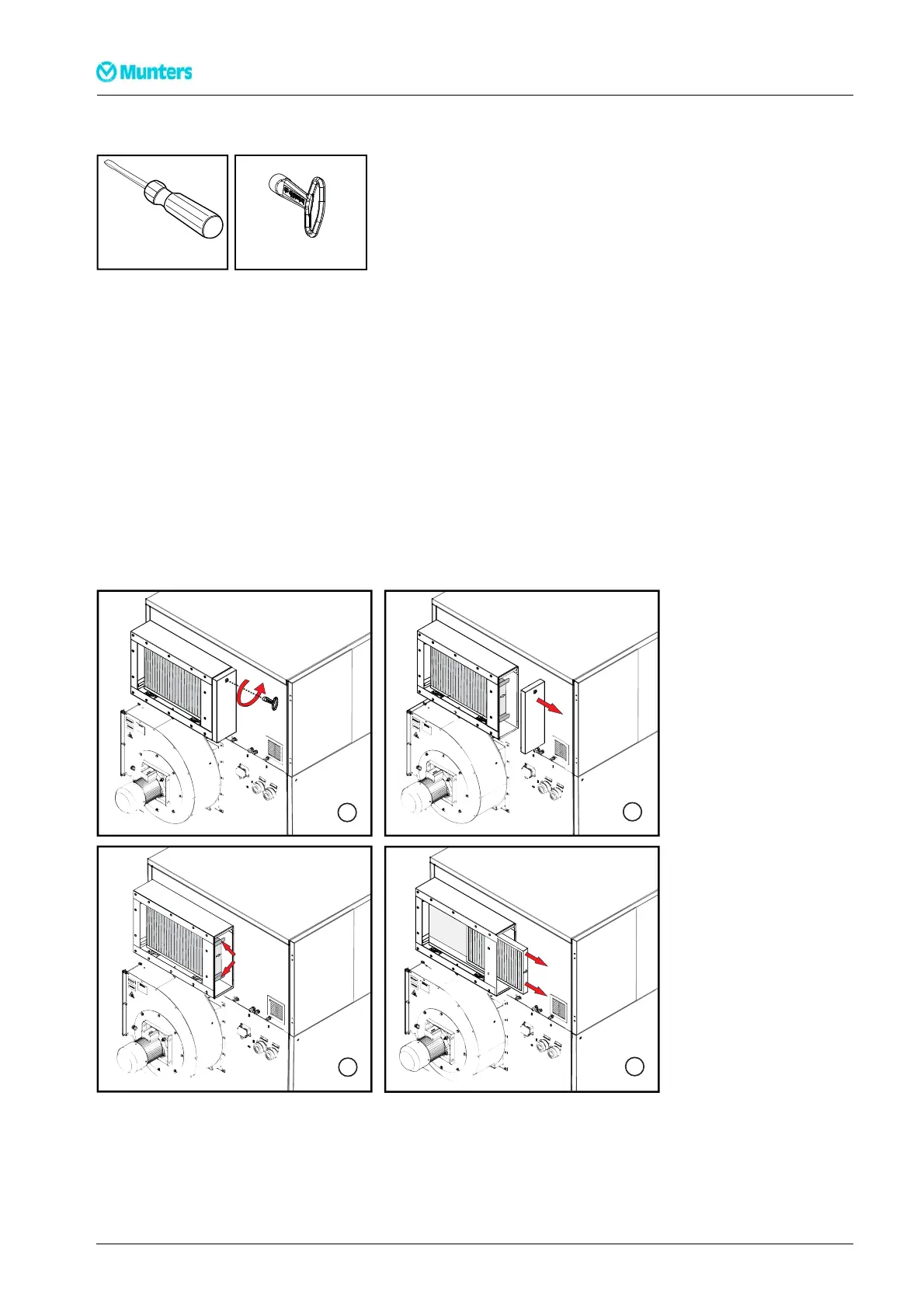

Figure 6.1 Tools required
Theprocedure for filter replacement is the same for process filter and reactivation filter. Replacement of
reactivation filter on MX² 55 shown as an example. T he numbers within brackets refer to Figure 6.2 and
Figure 6.3 .
1. Set the mode switch to position 0.
2. Wait 60 seconds for the heater to cool down.
3. Set the main power s wit ch to position 0 and lock the switch.
4. Open the filter box door by t u rning the lock counter clockwise (1).
5. Lift off the door (2).
6. Push the upper and lower filter clamp to release the filter (3).
7. Pull out the filte r (4).
1
2
3
4
Figure 6.2
