o Neutral
o Inlet Line (L1)
o Power to Inlet
o Open1 and Open2
o Tunnel Line (L1)
o Power to Tunnel
o Tunnel Open
o Heat Line
o Thermostat common (TC)
o Thermostat normally closed (TNC)
A similar order applies for other heaters and fans.
During normal operation the Platinum Inlet/Tunnel curtain is connected through the RBU-27 SE PWR output (L1). In case
of a Platinum failure or in case the RBU-27 SE thermostat reaches the set point (Main Controller failure), the RBU-27 SE
takes control and cuts the PWR output to the Platinum and opens Inlet/Tunnel curtain. This feature prevents conflicting
commands between RBU-27 SE and Platinum.
NOTE: Other powered devices (for example heaters or fans) are powered normally.

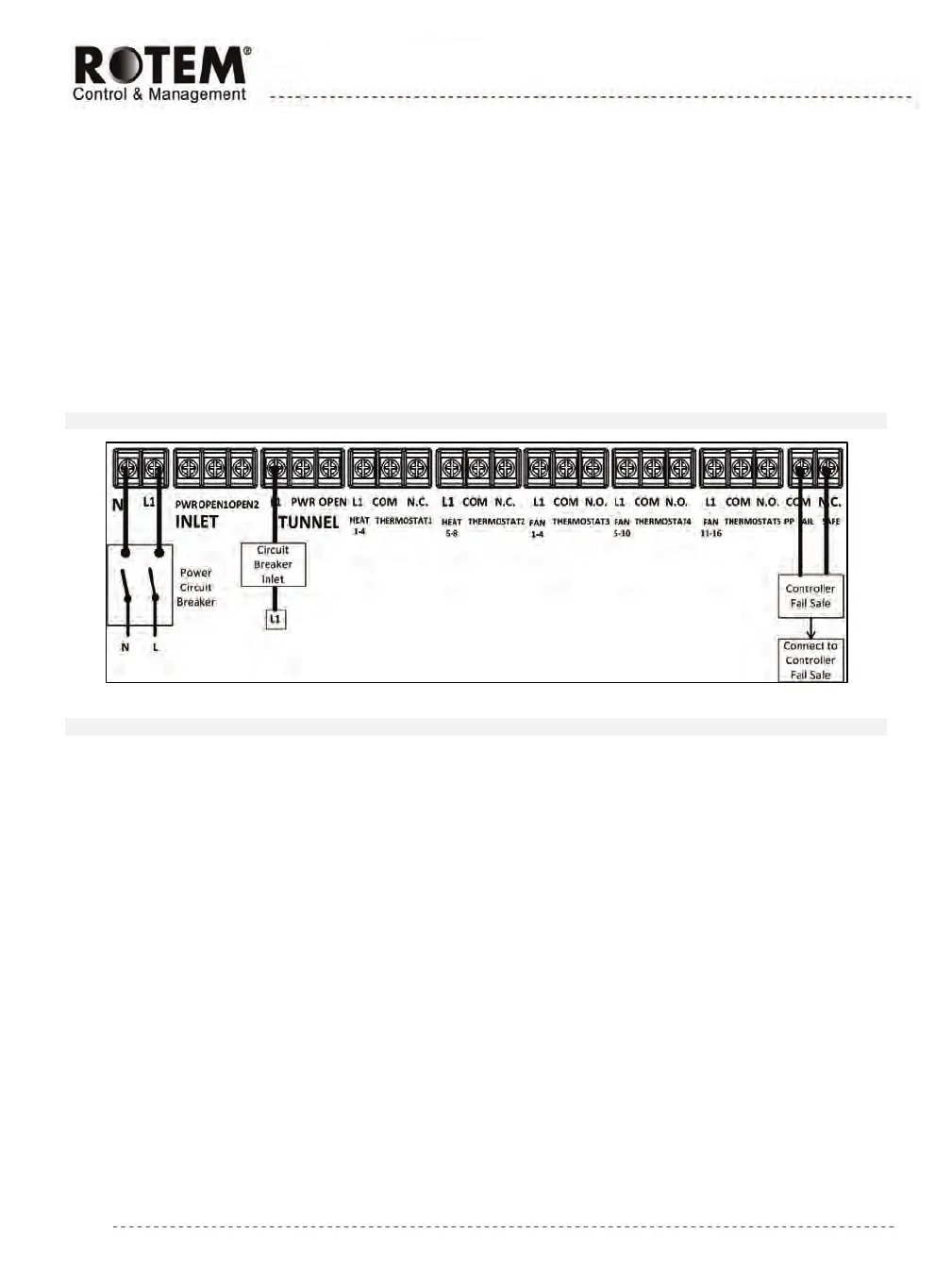

Figure 5: Relay Connections to Controller – Section 3
NOTE: The following drawings illustrate installation examples. In an actual installation the relays used can differ.

Munters Rotem RBU-27 SE Specifications

General

Brand	Munters
Model	Rotem RBU-27 SE
Category	Controller
Language	English
