12 | © Munters AB, 2019

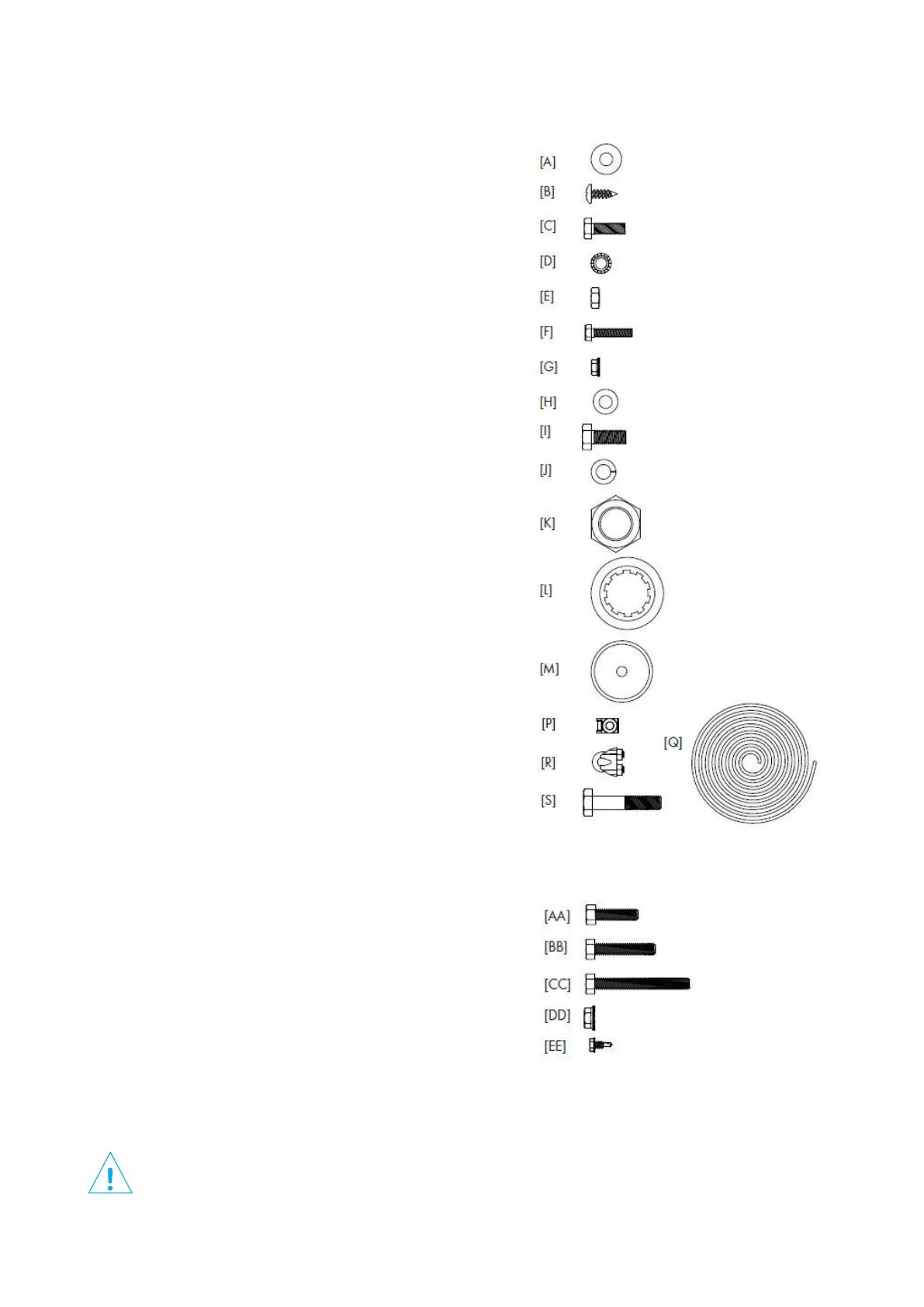

Bolts and nuts for 1 – WM54F Fan Installation
[A]…. 28 – Ø8x32 Washer
[B]…. 2 – Ø6.3x19 Self-tapping Screw
[C]…. 4 – M8x25 Hex Screw
[D]…. 4 – Ø8 Ext Toothed Washer
[E]…. 4 – M8 Hex Nut
[F]…. 4 – M6x30 Hex Screw
[G]…. 4 – M6 Hex Nut with Flange
[H].... 4 – Ø8x24 Washer
[I]…. 1 – M10x25 Hex Screw
[J].... 1 – D10 Spring Washer
[K]…. 1 – M25 Hex Nut
[L]…. 1 – Waterproof distence piece
[M]…. 1 – Cup Cover Nut
[P]…. 12 – Plastic Clip
[Q]…. 1 – Cable
[R]…. 4 – Cable Clamp
[S]…. 1 – M10x50 Hex Screw
[AA]…. 18 – M8x30 Hex Screw
[BB]…. 4 – M8x45 Hex Screw
[CC]…. 7 – M8x65 Hex Screw
[DD]…. 33 – M8 Hex Nut with Flange
[EE]….. 8 – Ø4.8x13 Self-tapping Screw
WARNING
Unauthorized tampering/replacement of one or more parts of the machine, or the use of accessories,
tools or materials other than those recommended by the manufacturer, are prohibited and release the
manufacturer from all liability.
