5. INSTALLATION INSTRUCTIONS
5.1 Install
Step 1
Construct framed opening to correct size according to the Wall Opening listed in chart A below. See Figure 1. When
installing exterior sheet metal before fan, leave 50mm of the framing exposed on all sides so the orifice can mount flush to
the frame.
Wall Opening
Minimum Spacing
Center To Center
Fan Diameter
(W. x H.)
“Z”
Dimension
54”
1435 x 1435
305 recommended; 90 minimum
1524 Minimum
NOTE
Damper doors should be carefully set aside out of direct sunlight until needed.

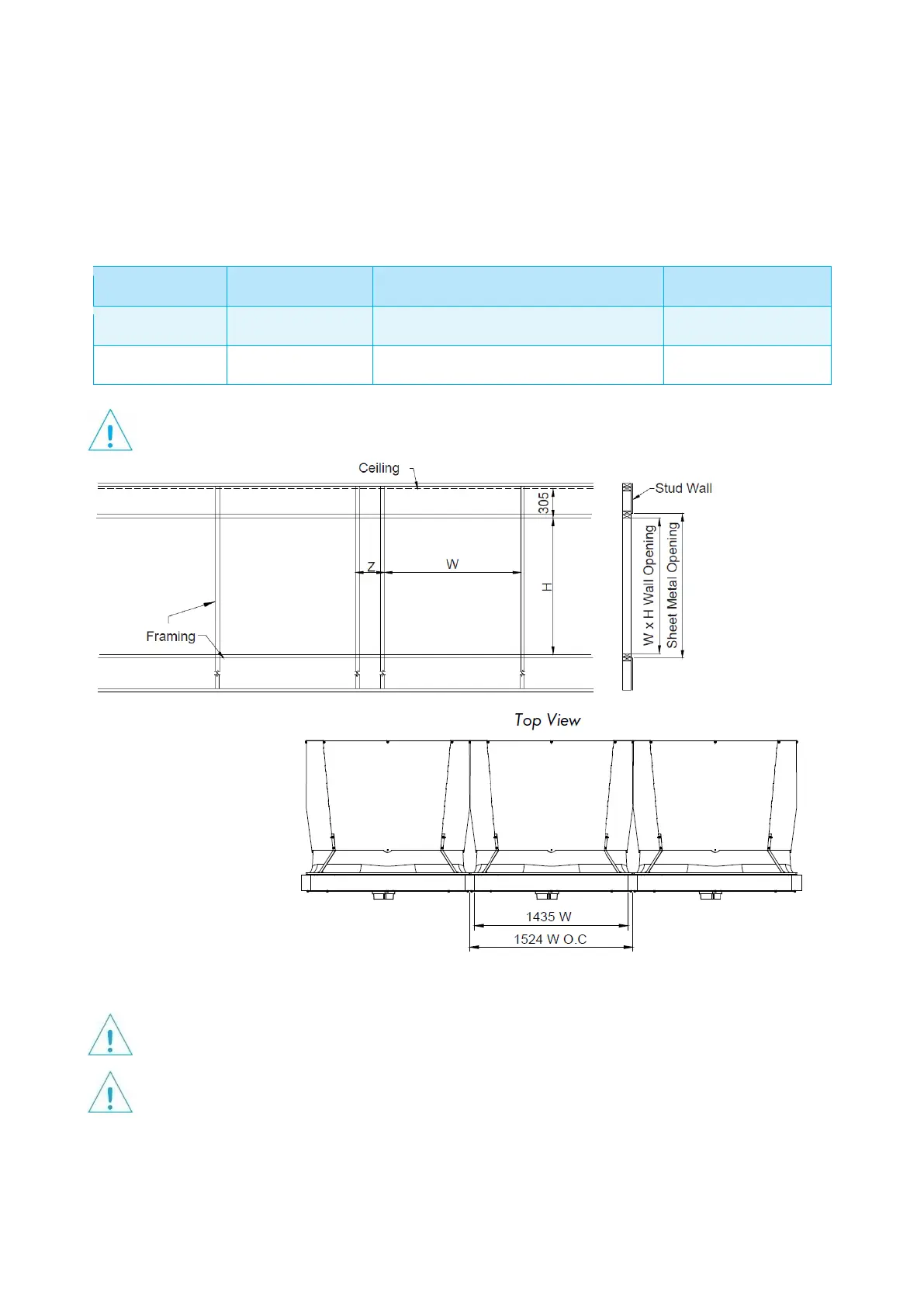

Figure 1
Frame Construction
WARNING
In case of a sandwich panel installation, the fans cannot be fixed directly on the "foam" sidewall, but
a proper metal supporting structure shall be used for steadily holding the fans in place as shown in Figure 1.
WARNING
There must be no obstacle neither in front or behind the fans. The outgoing airflow must be kept
free at least of a length of 3-times fan diameter and the ingoing airflow must be kept free at least in a radius of
1.5 m distance in front of the fan.
