Munters WM54 - Support and Tensioner Assembly (Steps 2 & 2 B)

15 | © Munters AB, 2019

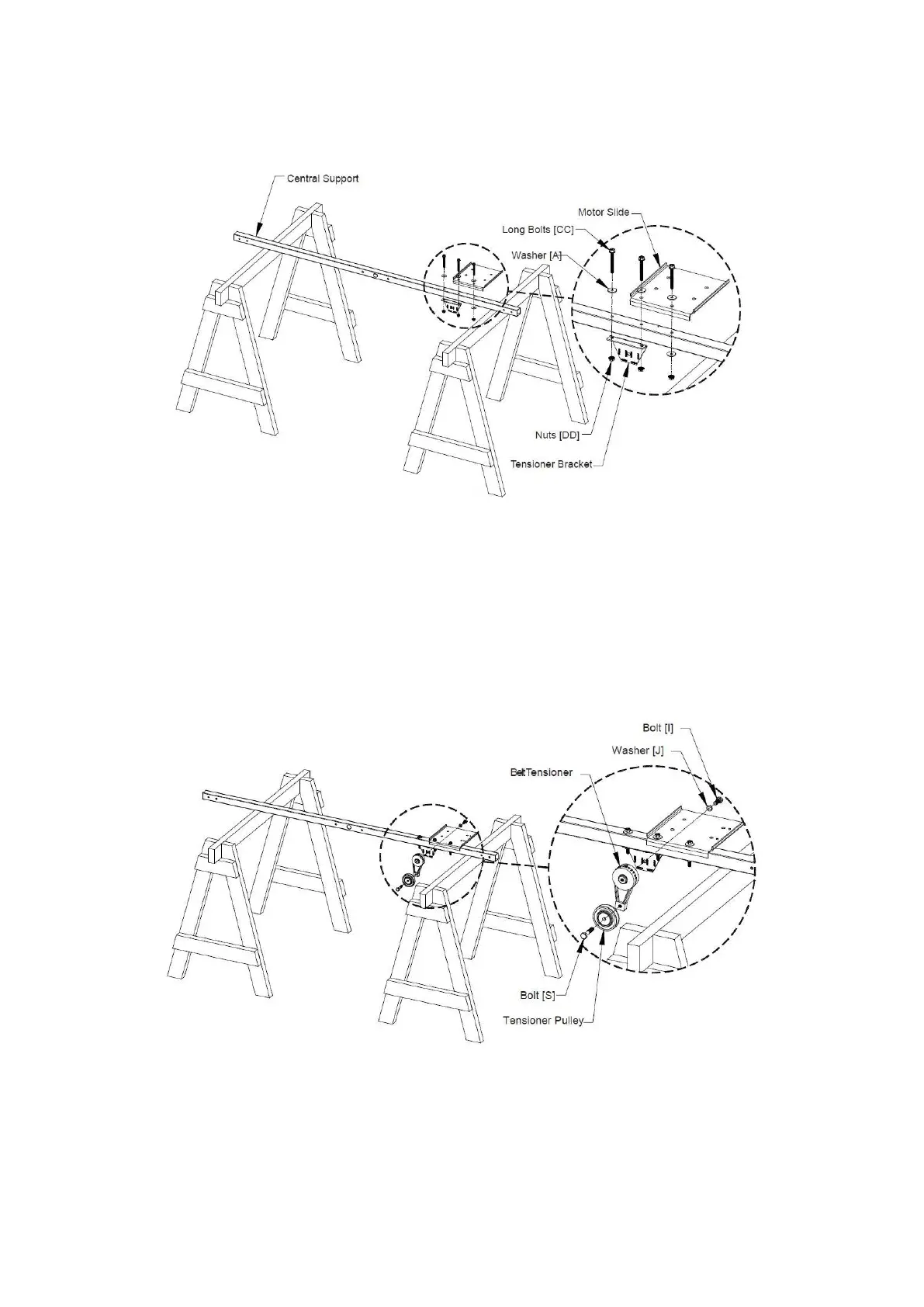

Step 2
Place the Central Support on saw horses or a flat work surface. The large center hole should be pointing horizontally.
Attach the Motor Slide and the Tensioner Bracket to the Central Support using (3) Long Bolts [CC], (4) Washers [A] and
(3) Nuts [DD]. The Motor Slide and the Tensioner Bracket share the middle hole. See Figure 2.
Figure 2
Step 2B
Attach the 3” Tensioner Pulley to the Belt Tensioner using Bolt [S]. Then attach the Belt Tensioner assembly to the
Tensioner Bracket using Bolt [I] and Washer [J]. The Belt Tensioner has to be perpendicular to the Central Support. Hold
tensioner at this setting and tighten the 10mm bolt to 50 Nm. See Figure 2B.
Figure 2B
