Step 11
Carefully remove folded Butterfly assembly from box. Open doors and lay them flat on solid surface with the Munters Logo
down. The Bottom of the doors has the Hinge Pin with the Nylon Washers. The Wing sits down in the Groove of the upper
right and lower left doors. The Wing will start just after the last spring mounting dimple and follow the Groove. Make sure
Wing is seated in bottom of Groove and fasten in place using (3) Seal-Washer Screws per wing present in the butterfly
package. Make sure Hinge Pins do not fall out. See Figure 11.

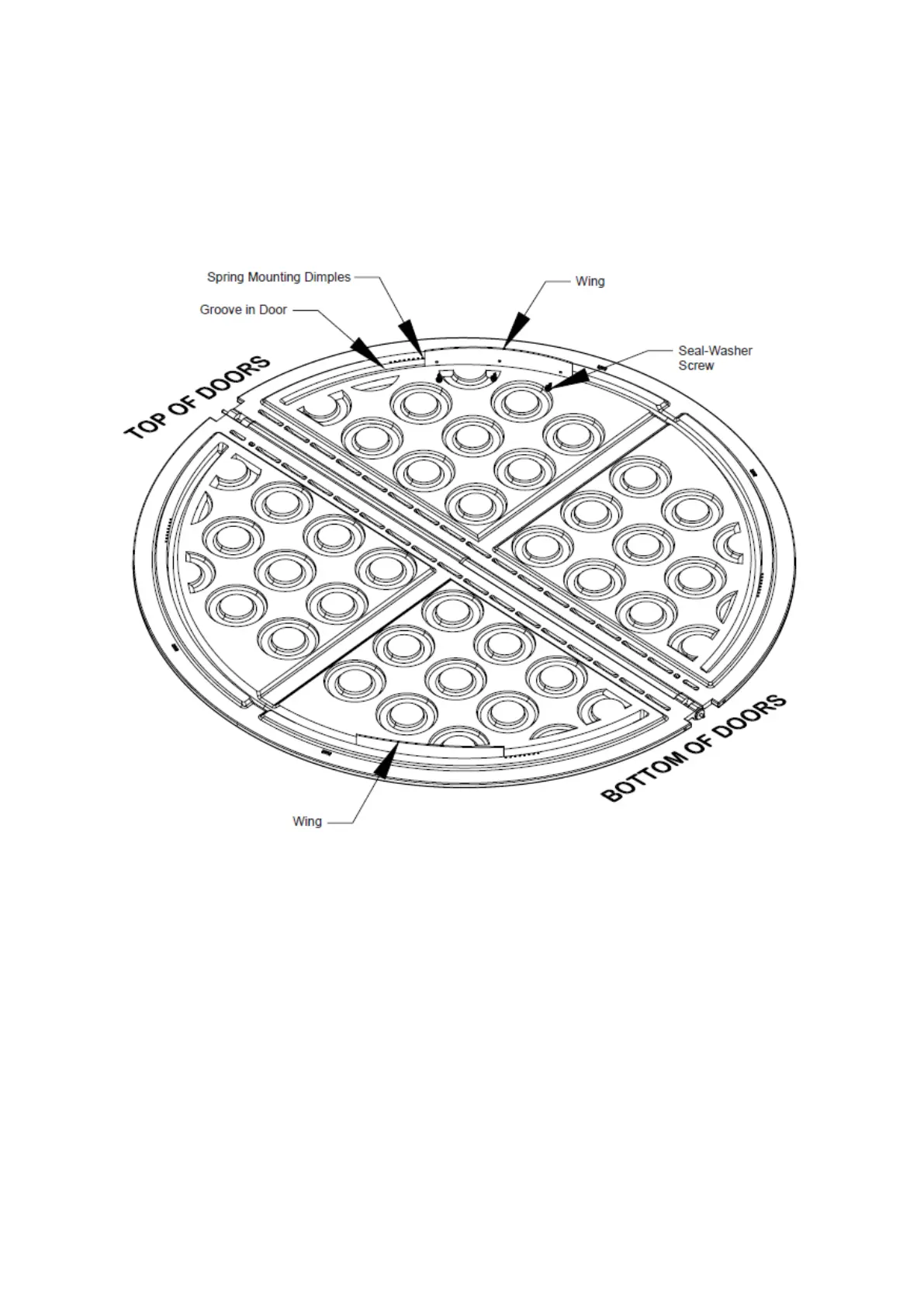

Figure 11
