74 _Troubleshooting

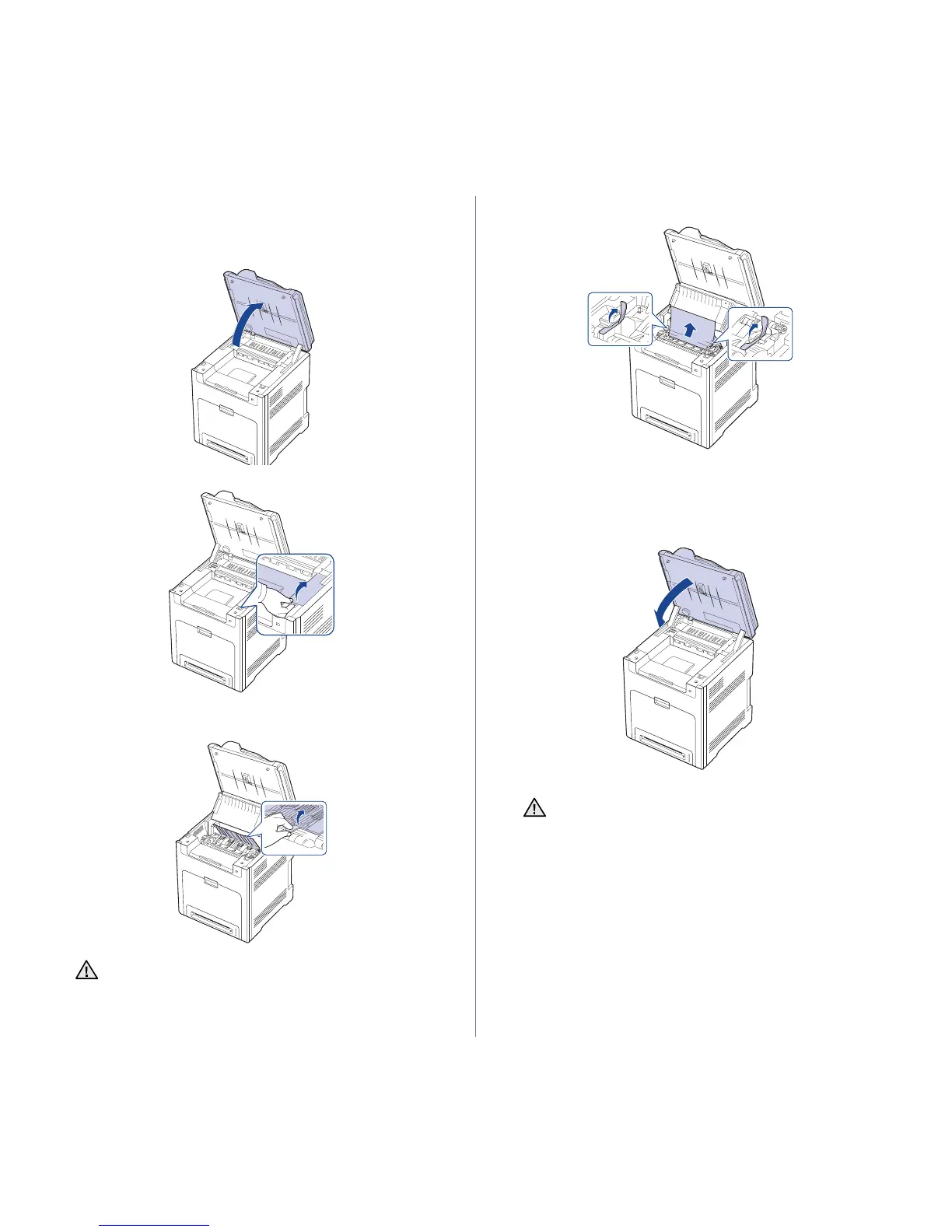

In the fuser unit area
If paper is jammed in the fuser unit area, follow the next steps to release the
jammed paper.
1. Open the scan unit.
2. Open the inner cover using the handle.
3. Open the inner cover using the handle on it and carefully take the
jammed paper out of the machine.
4. Pull up the paper jam lever to loose the fusing part of the fuser unit and
carefully take the jammed paper out of the machine.
5. Press down the paper jam lever to fasten the fusing part.
6. Close the inner cover.
7. Lowering down the scan unit gently and slowly until it is completely
closed. Make sure that it is securely latched.
Be careful not to pinch your fingers!
Do not touch the fuser inside the inner cover. It is hot and could
cause burns! The fuser's operating temperature is 180
°
C (356
°
F).
Take care when removing paper from the machine.
If the scan unit is not completely closed, the machine will not
operate.
