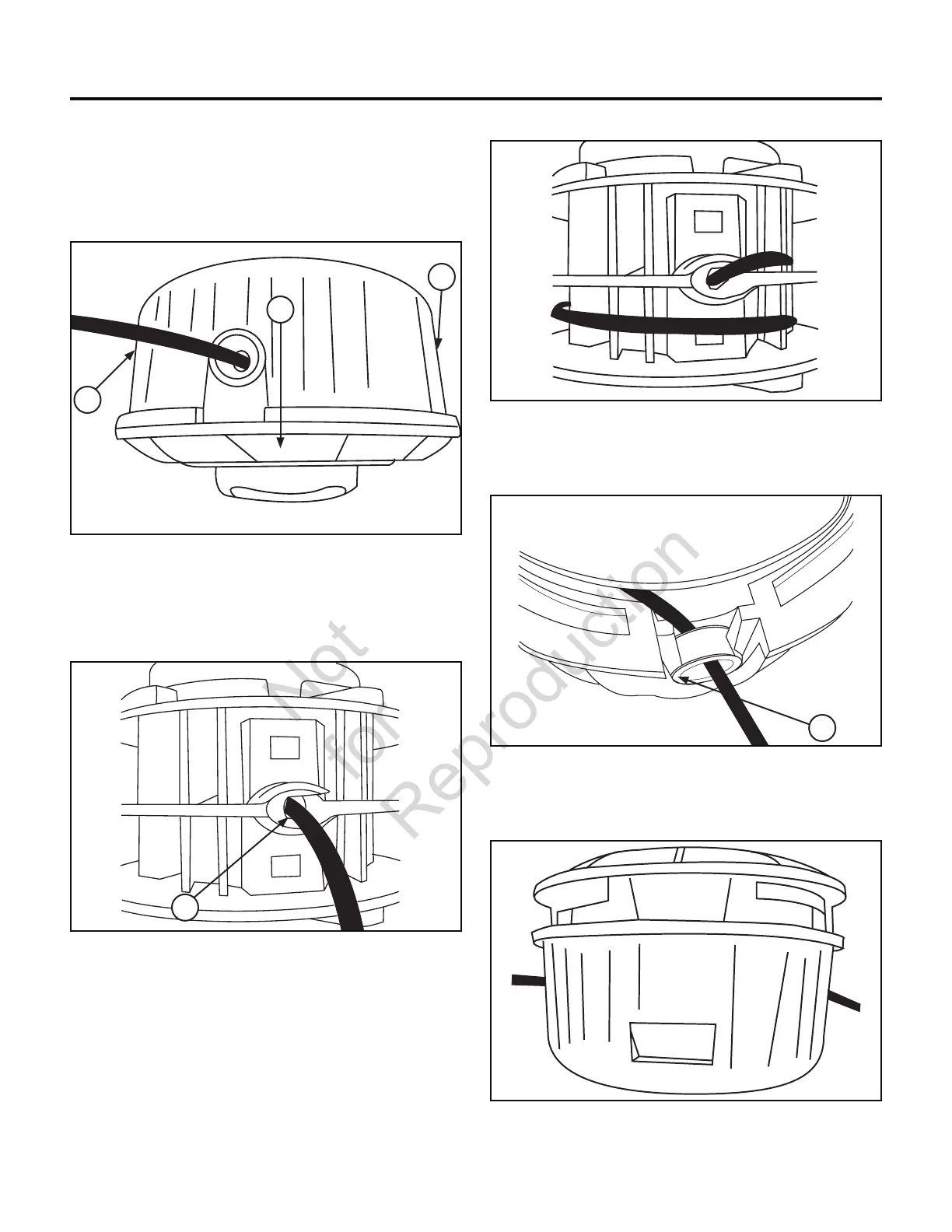

3. Evenly wind both lines around the spool in the
direction of the arrow on the spool cover (Figure 9).
One line is wound on the top half of the spool and the
other is wound on the lower half of the spool.
4. Fit the ends of each line through the brass eyelets (D,
Figure 10) in the trimmer head base.
5. Place the spool in the base and press until the tabs
lock in place (Figure 11).
Install Trimmer Head Line
1. Press in the tabs (A, Figure 7) on the side of the
trimmer head base to remove the cover of the trimmer
head and the spool (B).
2. Cut a 3 meter length of 2.4 mm trimming line. Thread
half the cut line (1.5 meters) through the center of the
spool (C, Figure 8).
Figure 7
B
A
A
Figure 8
C
D
ASSEMBLY
