Spitfire – Maintenance Manual
67
AP-74096, Rev. 1.0, 09/06/05

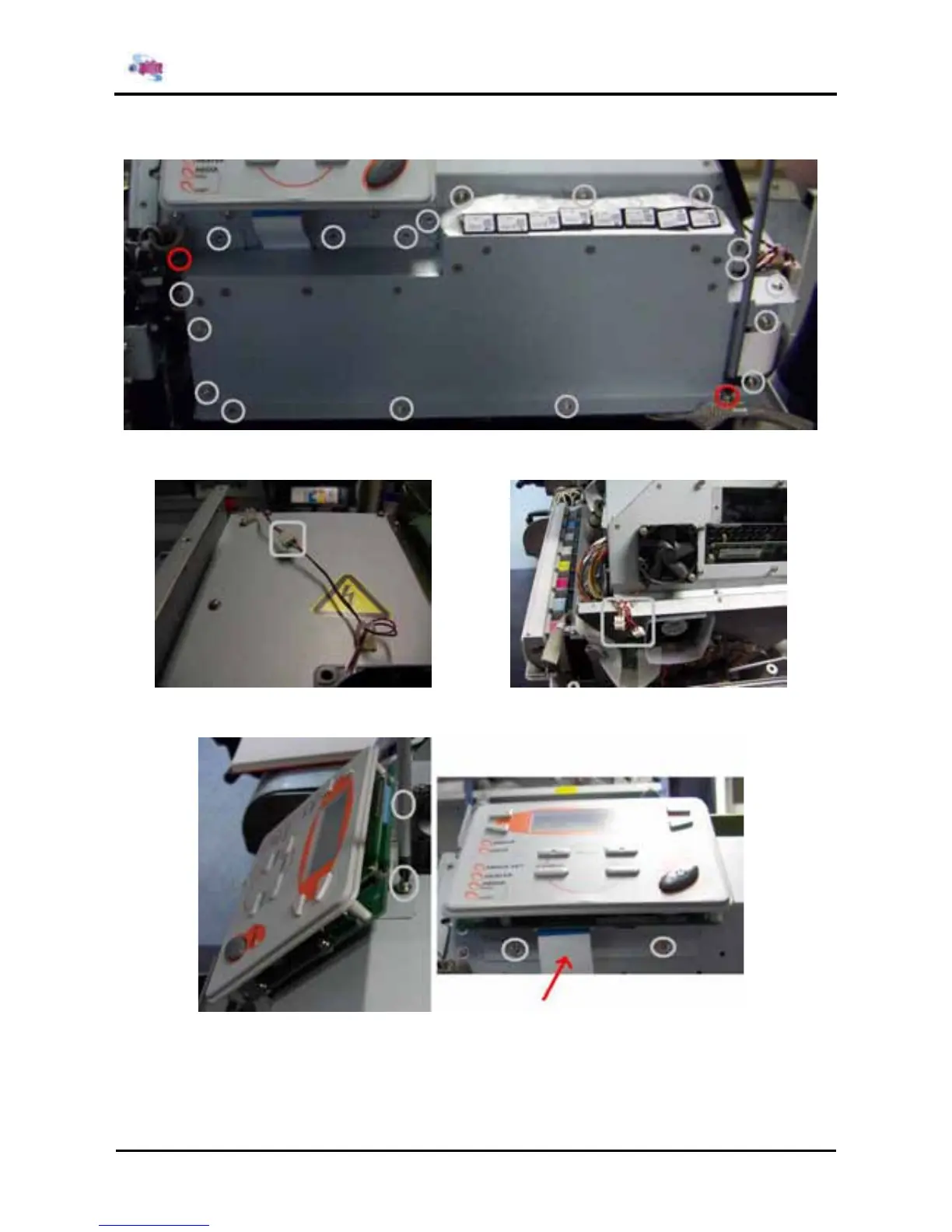

Step 4 :
Remove the mainboard cover 3
by loosening the 20 screws.
Step 5 :
Disconnect the cooling fan cables.
Step 6 :
Remove the display panel (4screws) and flatcable.
66
68
