8 Main components of your printer
y
1Introduction

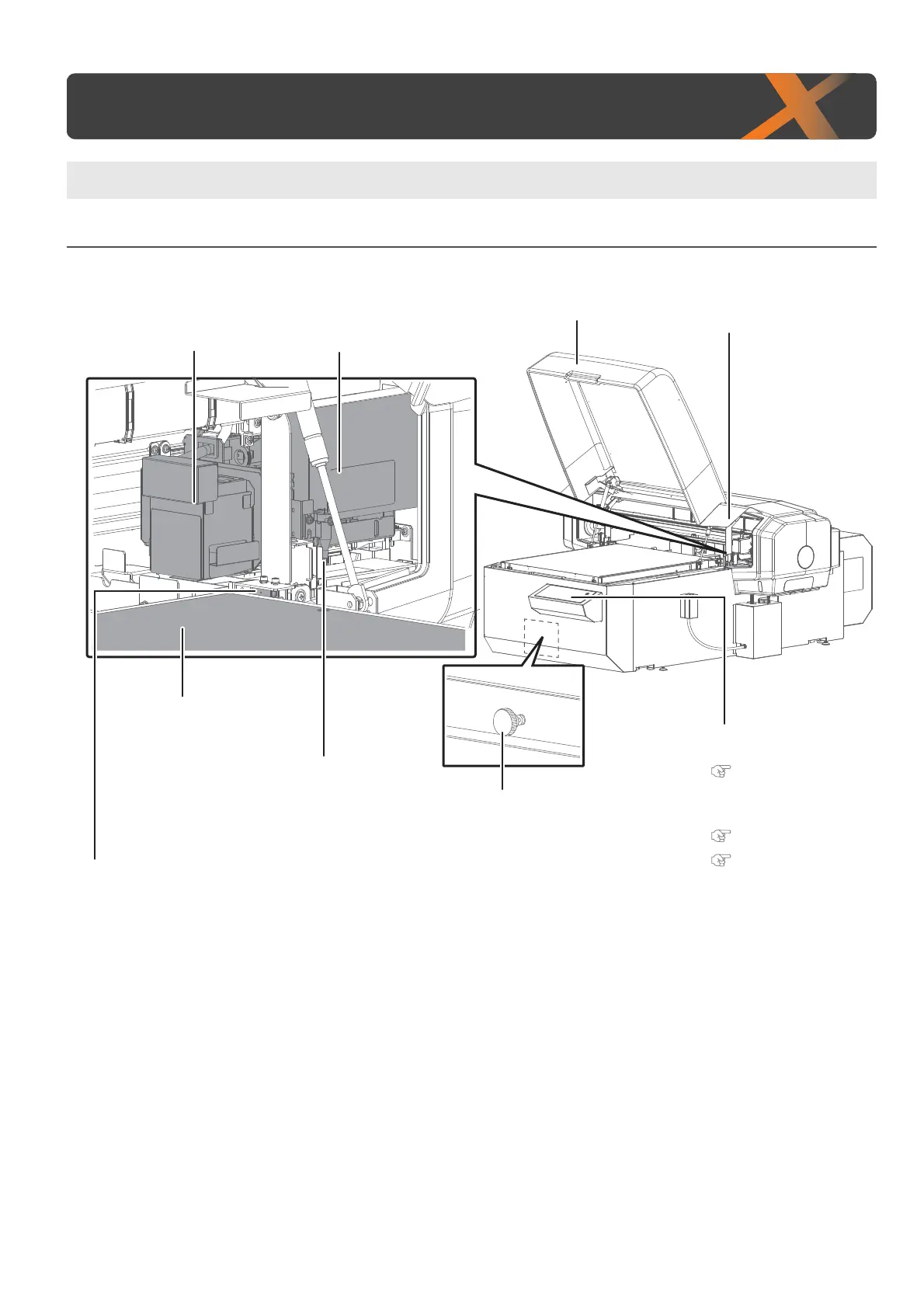

Main components of your printer
Front side
Introduction
Carriage
Contains the print head,
the LED pointer and
UV-LED unit.
UV-LED unit
Unit that emits the
UV (ultraviolet) light
to cure the ink.
Operation panel
Table
The media is printed on this.
It has a vacuum fan inside.
LED pointer
Used for setting the
origin pointposition or
for checking the
printing area.
Obstacle sensor
Sensor for making sure
the media does not
contact the print head.
Front cover
Open when mounting
media.
Maintenance cover
Open when performing
maintenance.
Handle
This handle is used for
service/maintenance by
maintenance personnel.
DO NOT use it for any purpose
other than instructed in this
manual.
"How to use touch
screen on front
panel" P. 9
"Front panel" P. 10
"Icon displays on
operation panel" P.
11
