mycom K Series - Structure of Semi-hermetic Motor

2200Q2JE-HO-KHM-N_2015.02.
Chapter 2 Product Specifications and Structure
Ammonia Semi-hermetic Motor with K-series Compressor 2.4 Structure of Semi-hermetic Motor
2-6
2.4 Structure of Semi-hermetic Motor
2.4.1 Sectional View
of the Motor

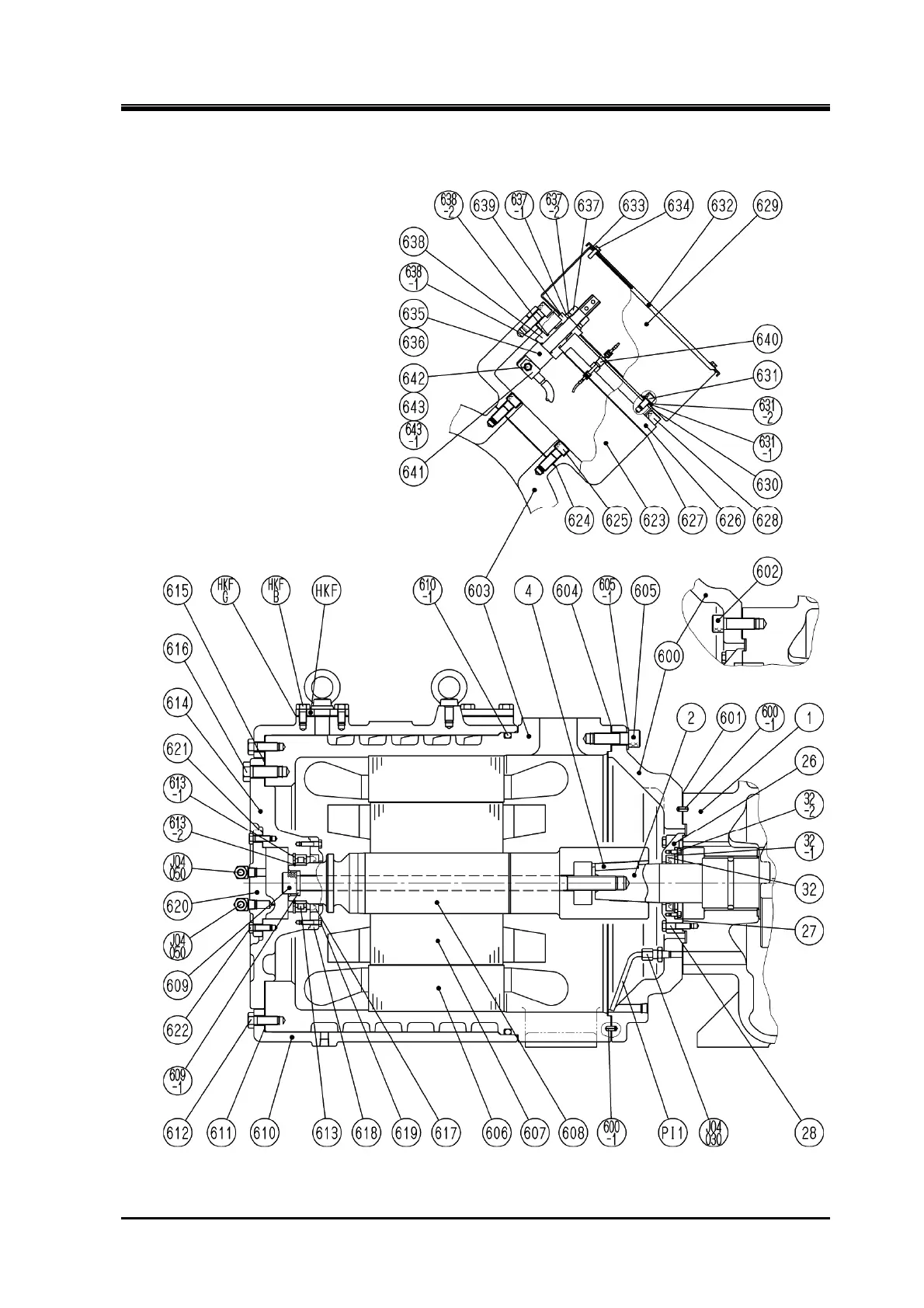

Figure 2-3 Sectional View of the K-series Semi-hermetic Motor
