Chapter 5 Maintenance and Inspection
Ammonia Semi-hermetic Motor with K-series Compressor 5.1 Precautions for Maintenance
5-16
5.4.2 Compressor Oil Seal Retainer

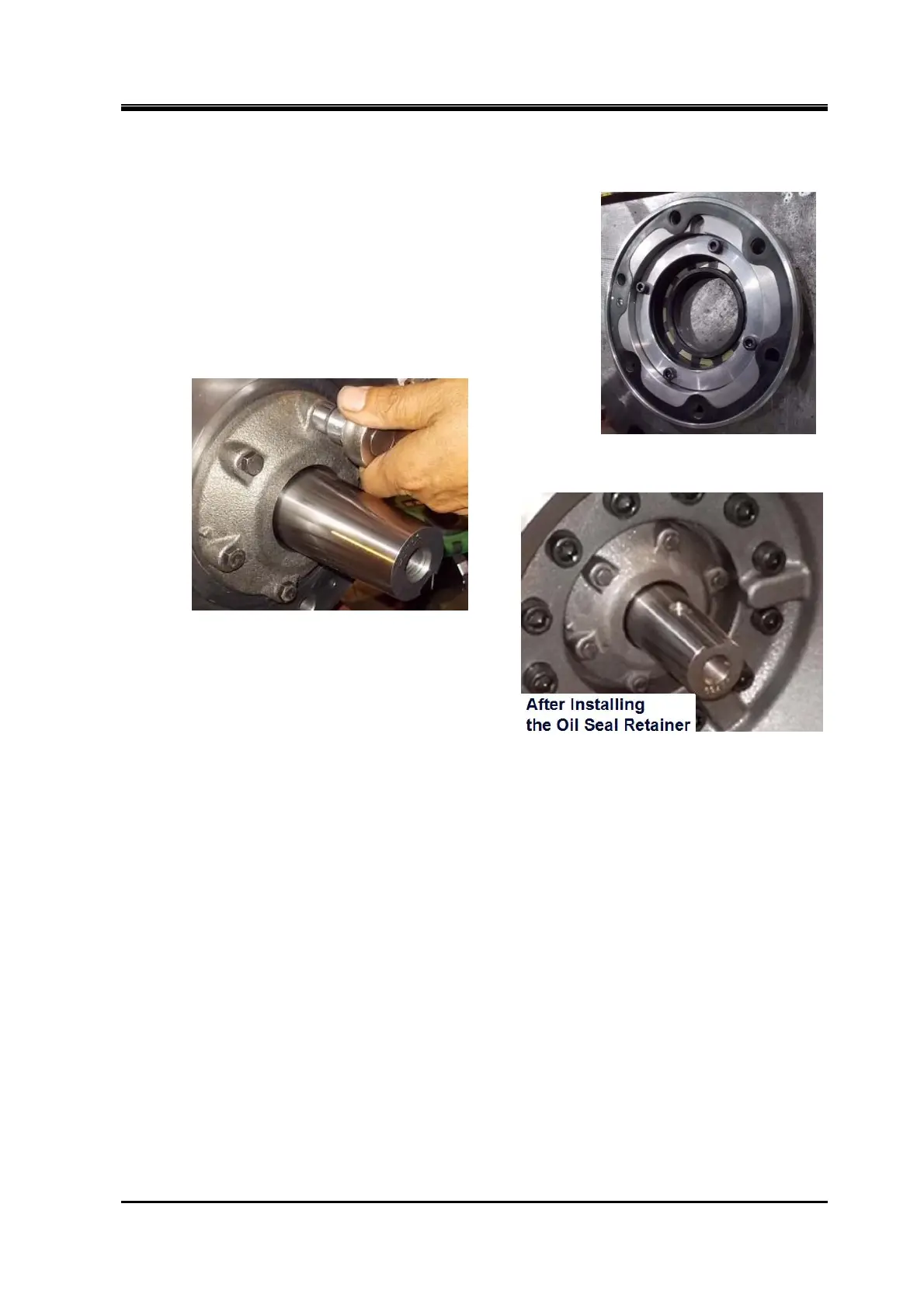

a) Apply oil on the gasket [27] and attach it to the oil seal retainer
[26] while allowing the bolt holes to match the oil holes (picture
to the right).
b) Apply oil on the lip (in contact with shaft) of the oil seal and the
sealing area of the compressor crank shaft.
While keeping the oil seal retainer in the right angle with the
shaft, fit it in the crank case. Mount the oil seal retainer so that
the oil hole of the crank case matches that of the oil seal
retainer.
c) While holding the oil seal retainer, screw in the
bolts [28] (above picture), and tighten them with the
specified torque.
