5.4.5 Motor Bearing and Motor Oil Seal Retainer

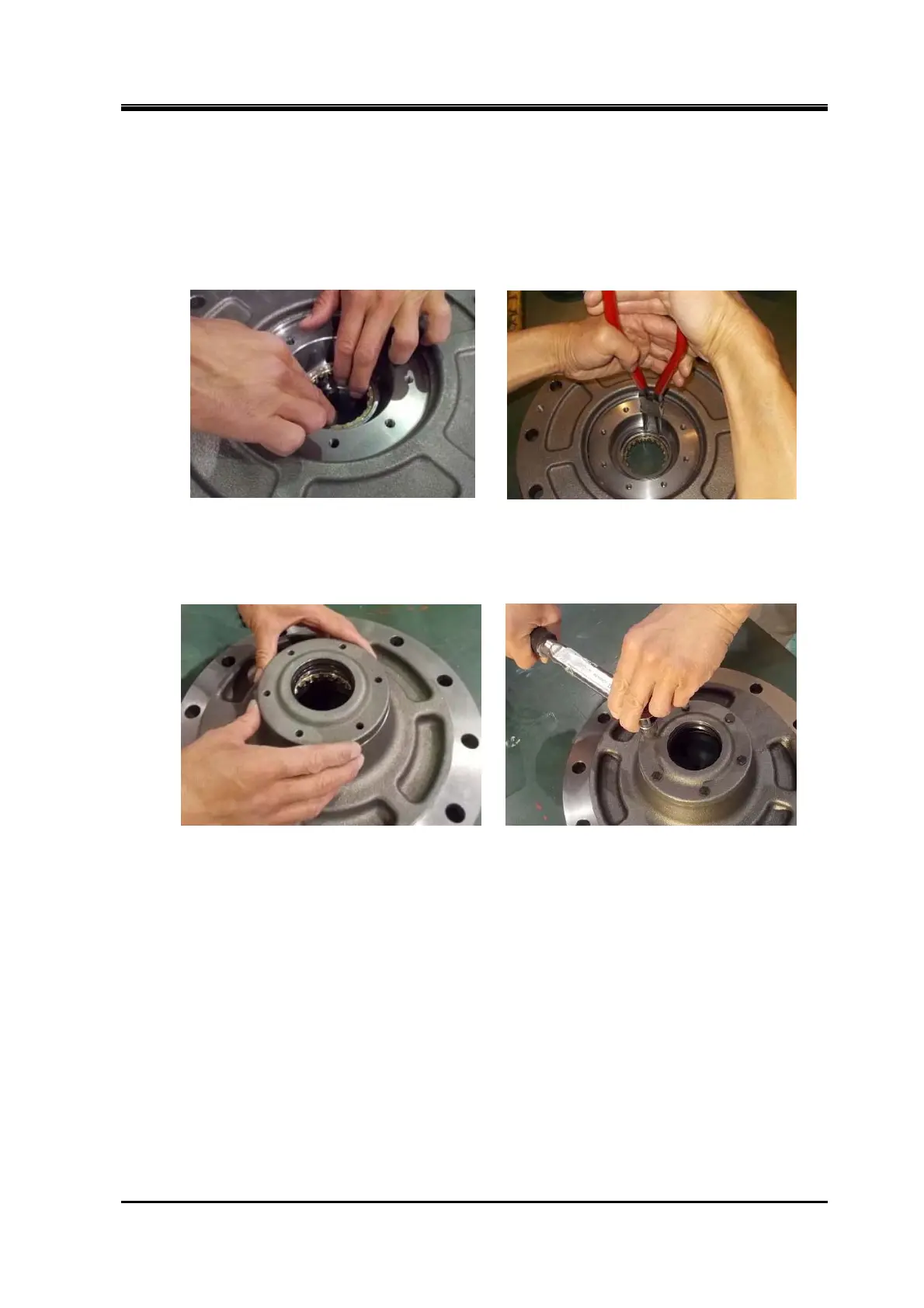

a) When the bearing has been removed for the replacement of motor bearing [613], mount the
bearing in the motor bearing retainer [614]. After inserting the outer race that is in pair with the
planetary ring of the bearing (following picture to the left), attach the snap ring A [613-1] for motor
bearing in the groove in front side (following picture to the right).
b) Install the oil seal retainer [618] on the motor bearing retainer [614] (following picture to the left).
c) Screw in the six bolts [619], and tighten them with the specified torque (following picture to the
right).
