2200Q2JE-HO-KHM-N_2015.02.
Chapter 3 Installation
Ammonia Semi-hermetic Motor with K-series Compressor 3.2 Installation Work
3-3

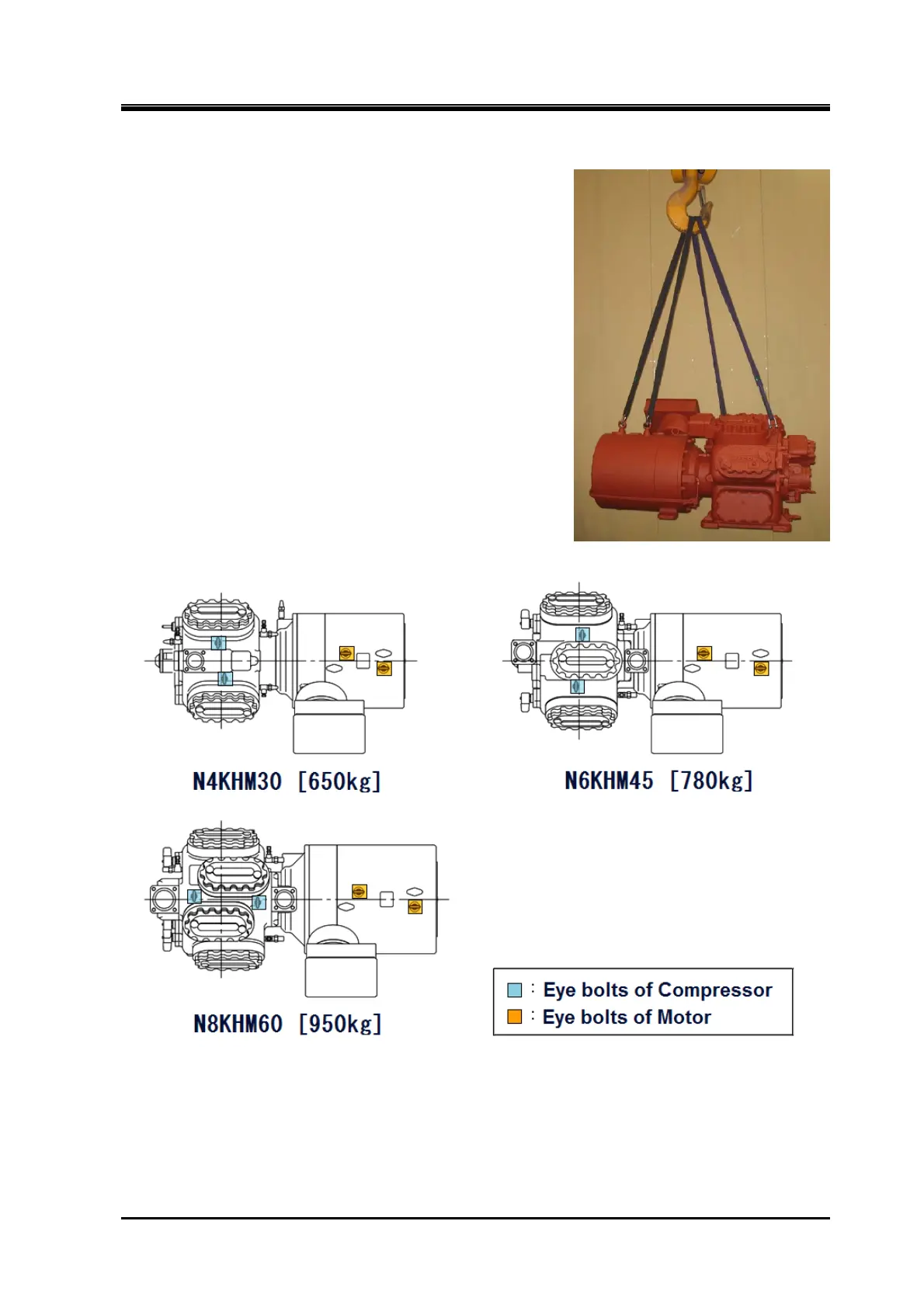

Example for Lifting Up this product:
For slinging up this product, the use of belt slings or wire ropes
(hooking wire) facilitates the lifting in an equalized load at each
of the four eye bolts.
If no hook is attached to each of the belt slings or wire ropes,
hang the load by using each of the eye bolts and the eye (ring)
of the lifting tools via a shackle.
Figure 3-1 Positions of Eye Bolts
To Next Page
