iVector S2
Installation manual
iVector S2 • 2022-07-01
US
Installation
2.1 Positioning the unit
2.2 Installation clearances

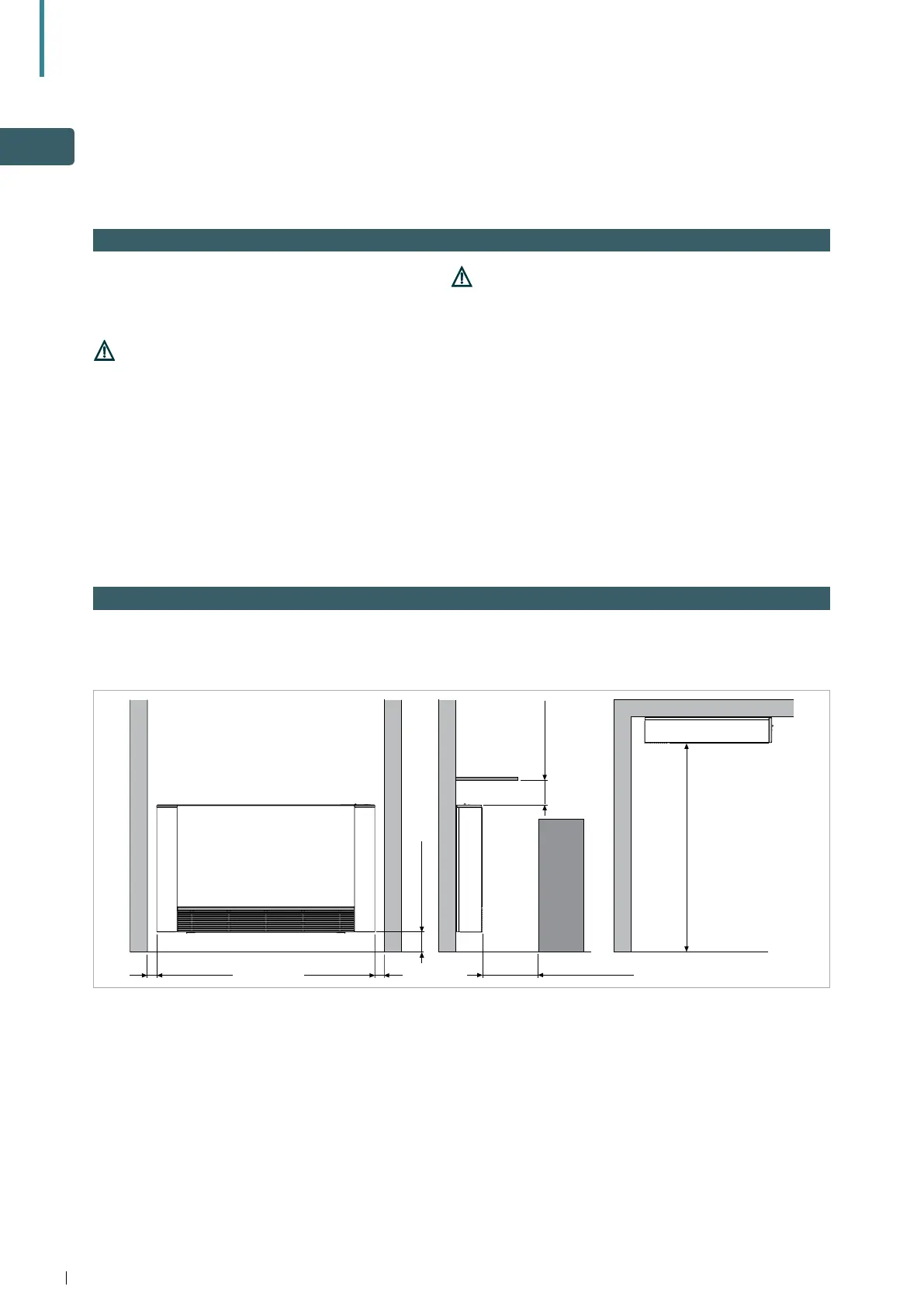

The figure below indicates the minimum clearance
between the surface-mounted unit and any adjacent
furniture.
20 mm (7/8“) 20 mm (7/8“) 400 mm (15-3/4“)
80 mm (3-5/32“)
2100 mm (8‘ - 6“)
This unit must not be installed in a bathroom, in damp
areas or places with possible contact with water.
Avoid installing the unit:
· in positions subject to exposure to direct sunlight;
· in proximity to sources of heat;
· in places with oil fumes
· in places subject to high frequency radio waves
The following instructions refer to units with standard
water connections on the left hand side.
Make sure that:
· the surface on which the unit is to be installed is strong
enough to support the weight;
· the installation does not interfere with existing pipes or
electric wires ;
· the surface is perfectly flat;
· that the air inlet and outlet are free of obstructions;
· the installation surface is preferably near an external
wall to allow the discharge of the condensate outside;
· in case of ceiling installation (VS or VSI version) the
airflow is not directed towards room occupants
