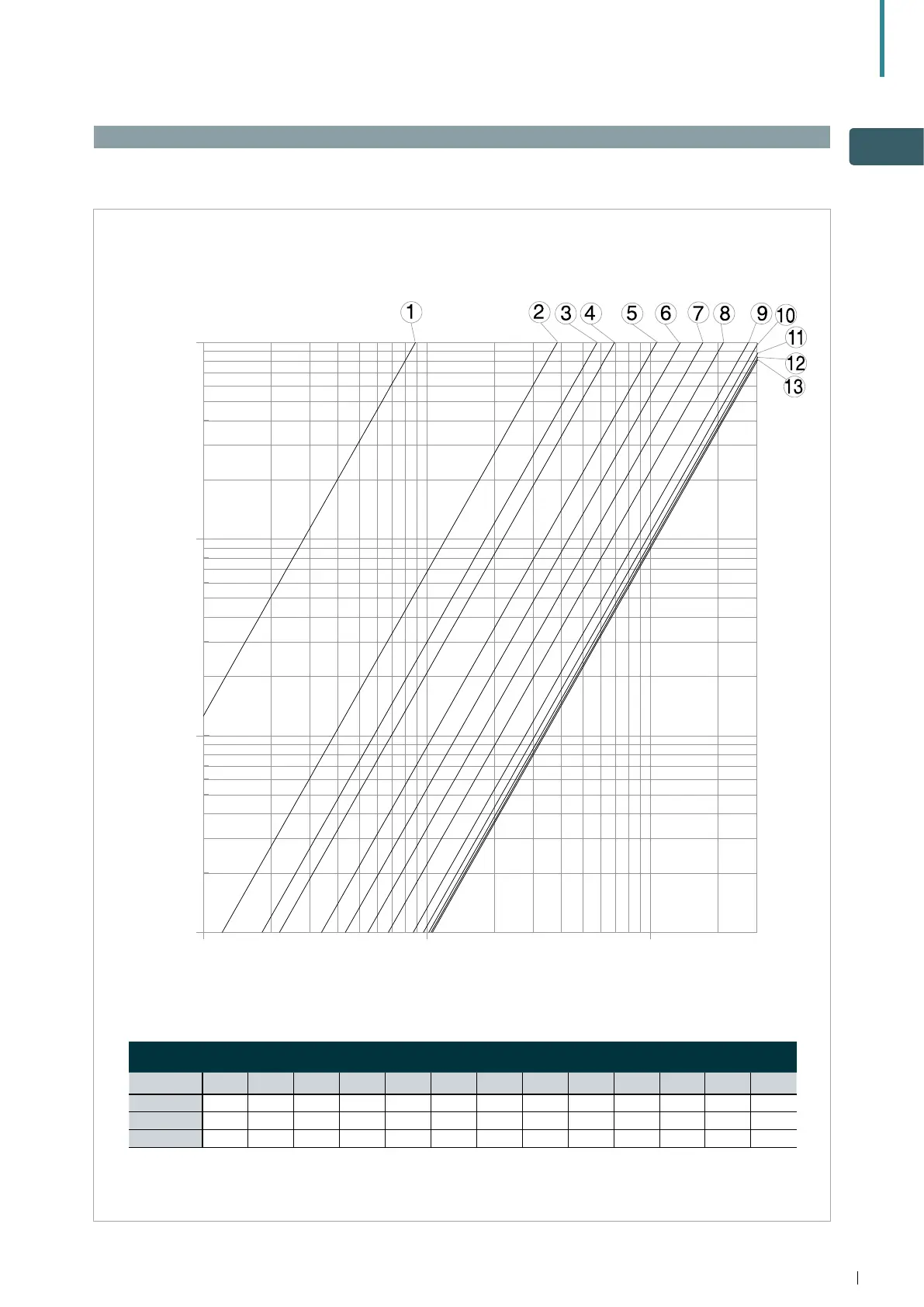

Pressure drop diagram
Pressure drop figures based on the return valve setting.
0.001
(0.0145)
0.01
(0.145)
0.1
(1.45)
1
(14.5)
10.0
(0.06)
100.0
(0.61)
1000.0
(6.1)
Dp - bar
(psi)
1 2 3 4 5 6 7 8 9 10 11 12 13 Pos.
1.25 1.5 1.75 2 2.25 2.5 2.75 3 3.5 4 4.5 5 5.5 Turns
0.09 0.38 0.58 0.69 1.07 1.37 1.72 2.13 2.75 3.06 3.23 3.31 3.35 Kv
Q [kg/h]
RETURN VALVE SETTINGS
Pos.
1 2 3
4 5 6 7 8 9 10 11
12 13
Turns 1.25 1.5 1.75 2 2.25 2.5 2.75 3 3.5 4 4.5 5 5.5
Kv 0.09 0.38 0.58 0.69 1.07 1.37 1.72 2.13 2.75 3.06 3.23 3.31 3.35
Cv 0.10 0.44 0.67 0.80 1.24 1.59 1.99 2.47 3.18 3.54 3.74 3.84 3.88
