N-Com BX4 PLUS - Installing the Battery and the Right-hand Side Speaker

BX4 PLUS
11

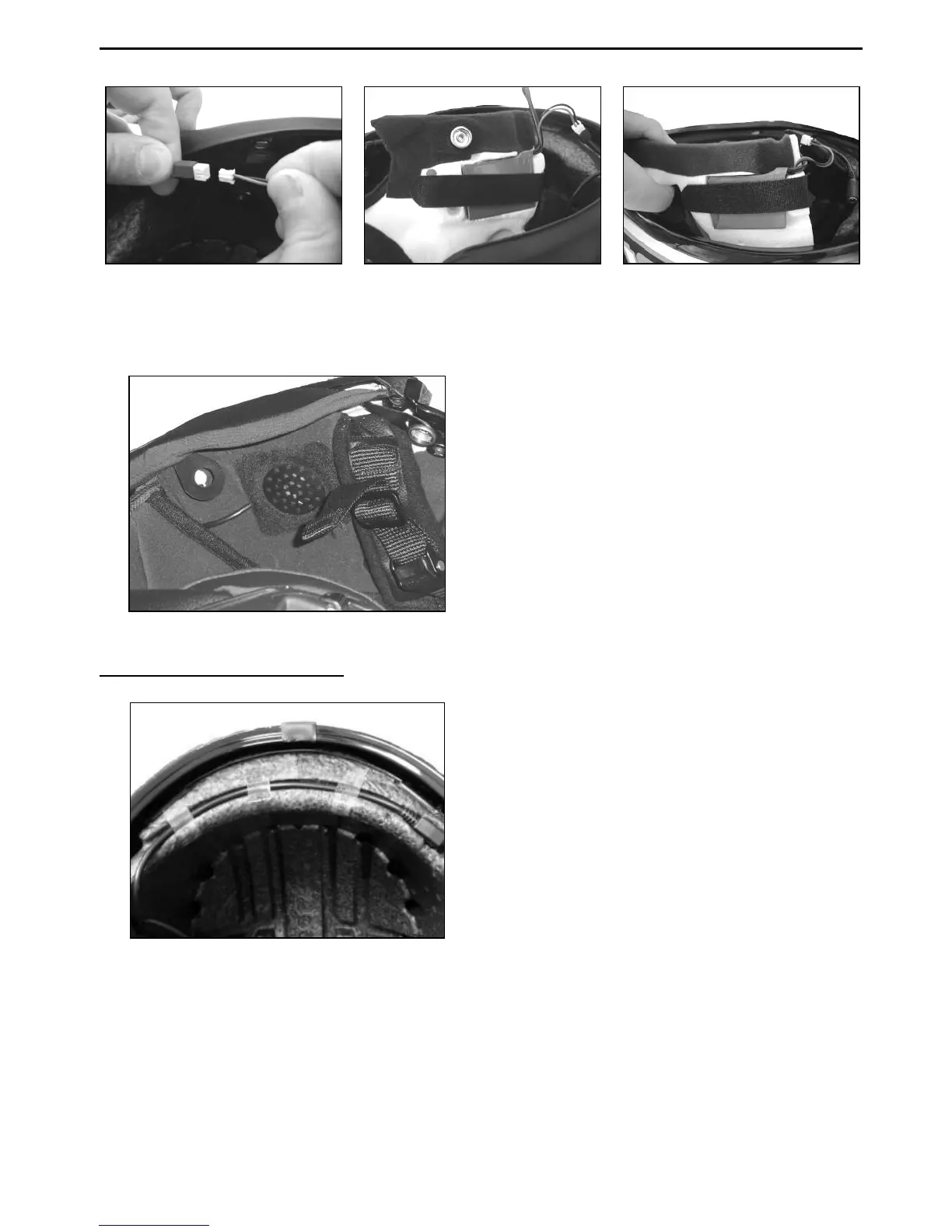

3.5. Installing the battery and the right-hand side speaker
 Connect the battery to the wiring system. (Fig. 16)
 Position the battery in the right polystyrene cheek pad housing and secure it using the
Velcro ribbon. (Fig. 17 / 18)
Only for full-face helmets: Insert the chin strap into the polystyrene cheek pad loop.
Fig. 16 Fig. 17 Fig. 18
Fig. 19
 Position the right-hand side speaker in
the specific cheek pad housing and
secure it using the specific adhesive
(Fig. 19).
 Reposition the right polystyrene cheek
pad in its housing.
Fig. 20
 Arrange the battery connector behind
the polystyrene cheek pad.
 Arrange the cable behind the
polystyrene shell or inside the relevant
housing.
