(Revised 2012-05-01

Page 81 of 170

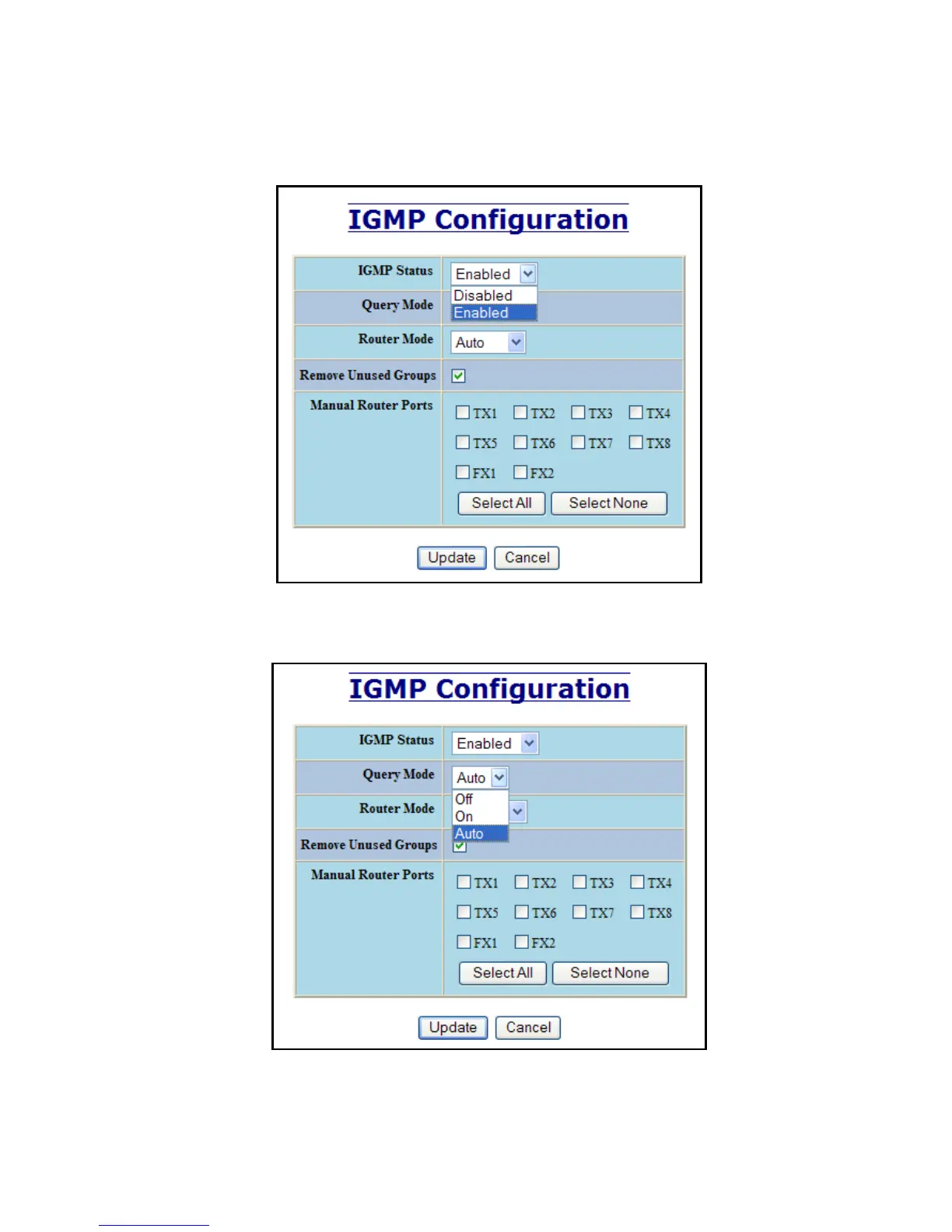

IGMP – Configuration, Continued…

The IGMP Status pull-down allows the user to enable or disable IGMP completely.

The Query Mode pull-down allows the user to set query mode for Automatic (the default), On (always), or

Off (never):
