11 of 53
www.NabcoEntrances.com GT1175 (H105 Medium) Hurricane Quick Set-Up and Parts Guide
Rev 8-10-16 P/N C-00106

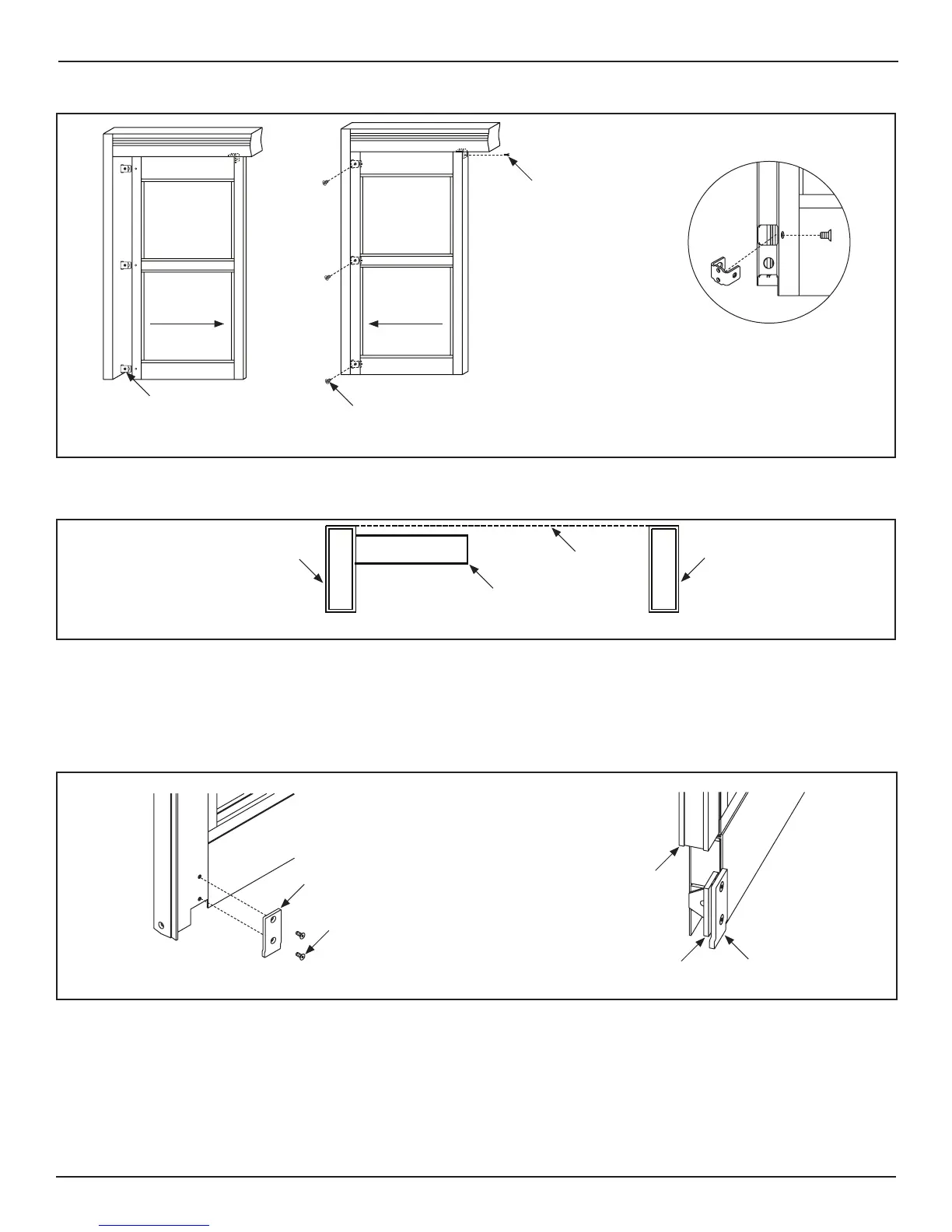

Figure 13 Slide Mounting Block into Top Rail
DN 1020
Moun ng Bracket
1/4-20 x 7/16”
Phillips Head Screw
1/4-20 x 1/2”
Phillips Head Screw
12. Snap a chalk line between Jamb tubes in front of Sidelite Panel.
a. If the Fixed Sidelite runs parallel to the chalk line it is square.
DN 0624
Chalk Line
Jamb Tube
Fixed Panel
Jamb Tube
Figure 14 Square Fixed Sidelite
1. Go to the boom of Strike Sle.
2. Remove the Cover Plate and (2) pre-installed 1/4-20 x 5/8 inch Socket Head Screws. Save for reinstallaon.
a. A Nut Plate is Preinstalled onto the back face of the Strike Plate directly behind where the Cover Plate is located. Do Not
remove the Nut Plate.
DN 1021
1/4-20 x 5/8”
Socket Head Screw
Cover Plate
Cover Plate
Nut Plate
Strike S le
Figure 15 Remove Cover Plate
3. Obtain the Double Roller Assembly.
a. For Bi-Part Slide doors a Le Hand and a Right Hand Double Roller Assembly will be provided. Be sure to select the
Double Roller that corresponds to the right side or the le side of door.
4. Install the Double Roller by sliding (2) rollers into the Boom rail so the bracket scks out from underneath in direcon of
where the Slide door is to be installed.
a. Push rollers back into Boom Rail so the Floor Bracket can be installed.
b. Do not install Slide Door onto Boom Guide Assembly at this me.
To Next Page
