GT1175 (H105 Medium) Hurricane Quick Set-Up and Parts Guide www.NabcoEntrances.com
P/N C-00106 Rev 8-10-16

FOR UNITS WITHOUT THRESHOLD SKIP TO
SECTION 4
Note: Floor tracks are factory cut to be the same width as the door opening. Extending the oor track from Jamb to Jamb is
oponal. To order addional track, please contact customer service at (877) 622-2694.
Floor Tracks for 1175 Hurricane Slide Door Systems can be installed two dierent ways:
► Surface

► Recessed
Installed inside a channel that is 1/2 inch deep across the full length of the track.


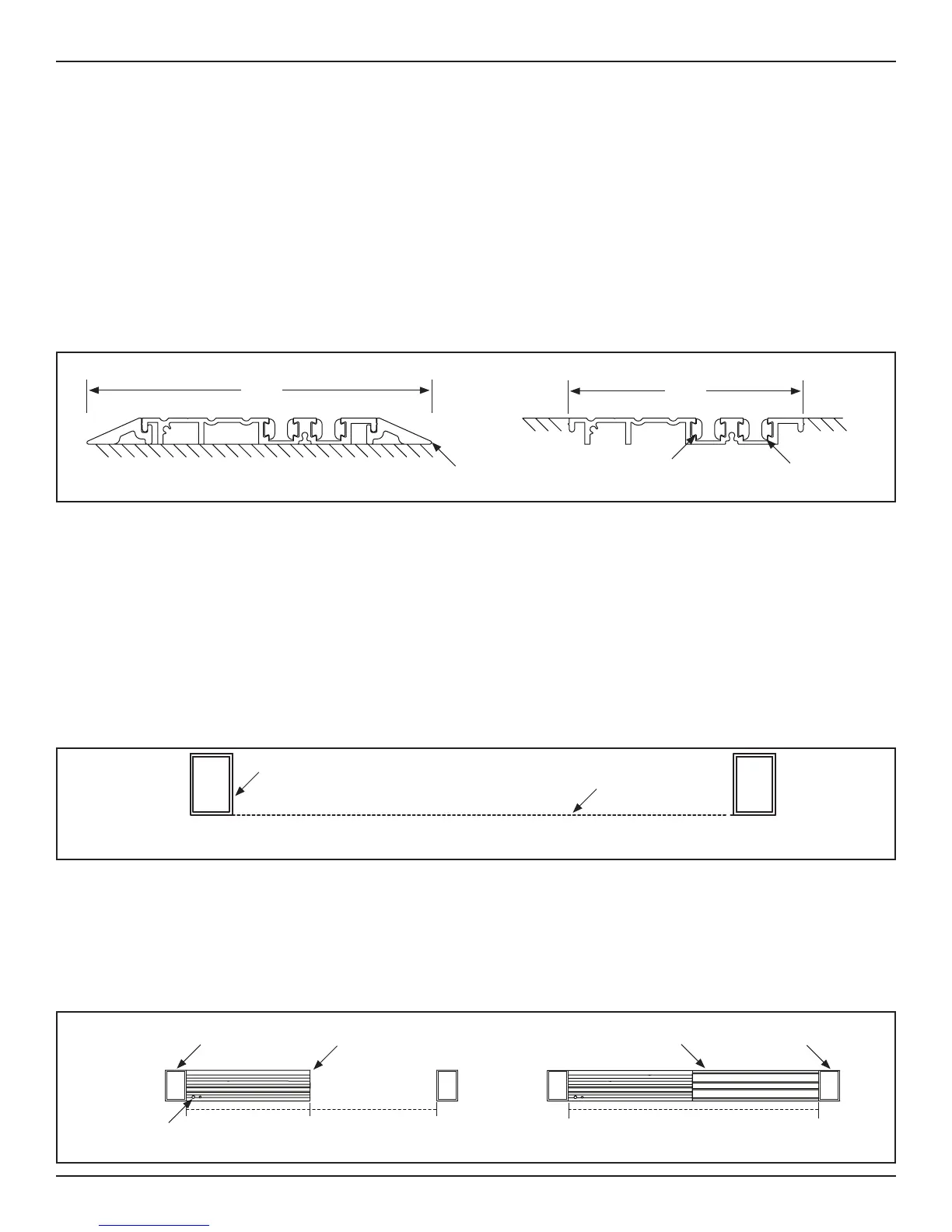

Figure 3 Recessed vs Surface Track
RECESSED TRACK
41/2”
Bumpers
7”
SURFACE TRACK
Ramp
DN 0798
Bumpers

Note: To avoid misalignment, Do Not permanently secure Floor Tracks unl the Slide Door installaon is complete.
The Full Open Hurricane Slide Door system is shipped with (2) dierent Floor Tracks:
► With Channels
Installed under the Swing Sidelite.
Channels keep the Bottom Guide aligned and free from scratches as the Slide door opens/closes.
► Without Channels
Installed under the Slide Door.
1. Obtain both Floor Tracks that were cut to specicaon at the NABCO Factory.
2. On the Breakout side of opening, snap a chalk line on the oor from Jamb to Jamb.
Figure 4 Snap Chalkline
DN 0931
Jamb Tube
Chalk Line
BREAKOUT SIDE
3. Obtain the Floor Track with Channels.
4. Bu the edge of Floor Track (with Channels) against the inside face of the Pivot Jamb tube with (2) predrilled Screw holes
facing the Breakout Side of Opening.
5. Align the full length of Floor Track (with Channels) so it is ush with the chalk line.
6. Obtain the Floor Track without Channels that was cut to specicaons at the NABCO Factory.
7. Posion the Floor Track (without Channels) between the Floor Track (with Channels) and the Strike Jamb Tube.
8. Align the full length of Floor Track (without Channels) so it is ush with the chalk line.
DN 0930
BREAKOUT SIDE
Swing Sidelite
Slide Door
Floor Track
(with Channels)
Floor Track
(without Channels)
Swing Sidelite
Pivot Jamb Tube
Strike Jamb Tube
Screw Holes
Figure 5 Floor Track Placement
