www.NabcoEntrances.com GT1175 (H105 Medium) Hurricane Quick Set-Up and Parts Guide
Rev 8-10-16 P/N C-00106
9. Plumb the Floor Track by hanging a Plumb Bob from the Header.
DN 1014
Header Cover
Plumb Line + 1/8” to edge of Track
4.5”
1/8”
EXTERIOR

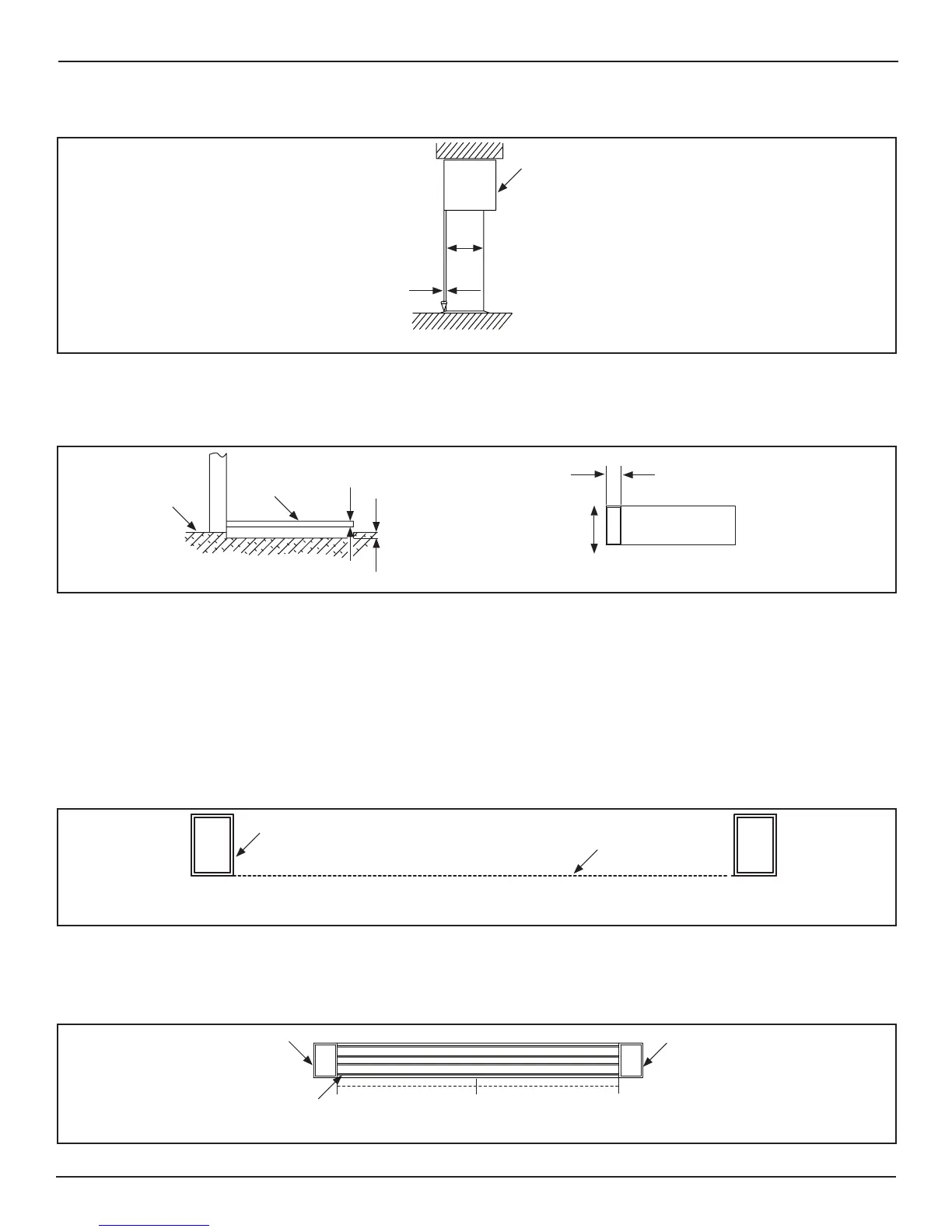

Figure 6 Plumb Line

1. On the Breakout side of building, snap a chalk line on the oor from Jamb to Jamb.
2. Create a channel that is 1/2 inch deep, and 4-1/2 inches wide, and the full length between both Jamb Tubes.
Figure 7 Track Recess
DN 0966
Cut to full
width of system
4-1/2” (2 Panel)
1.75”
1/2”
1/2”
Track
Floor Surface
3. Obtain and then insert the Floor Track (without Channels) on the side of the Pivot Jamb tube.
4. Obtain and then insert the Floor Track (with Channels) on the side of the Strike Jamb Tube.
5. Ensure there are no gaps between the Floor Tracks and the Jamb Tubes.

FOR FULL OPEN UNITS SKIP TO
SECTION 5
Note: To avoid misalignment, Do Not permanently secure Floor Tracks unl the Slide Door installaon is complete.
1. Obtain the Floor Track that was cut to specicaon at the NABCO Factory.
2. On the Non-Breakout side of opening, snap a chalk line on the oor from Jamb to Jamb.
Figure 8 Snap Chalkline
DN 1015
Jamb Tube
Chalk Line
NONBREAKOUT SIDE
3. Posion the Floor Track between the Pivot Jamb tube and the Strike Jamb Tube.
a. (1) Aluminum Bar has been preinstalled underneath the Floor Track located in the middle. This Aluminum Bar is used to
reinforce the Fixed Sidelite Boom Bracket.
4. Align the full length of Floor Track so it is ush with the chalk line.
DN 1016
NONBREAKOUT SIDE
Swing Sidelite
Floor Track
Pivot Jamb Tube Strike Jamb Tube
Slide Door
Figure 9 Floor Track Placement
5. Plumb the Floor Track by hanging a Plumb Bob from the Header.
