Nabco GT1175 Quick Setup Guide

13 of 53
www.NabcoEntrances.com GT1175 (H105 Medium) Hurricane Quick Set-Up and Parts Guide
Rev 8-10-16 P/N C-00106

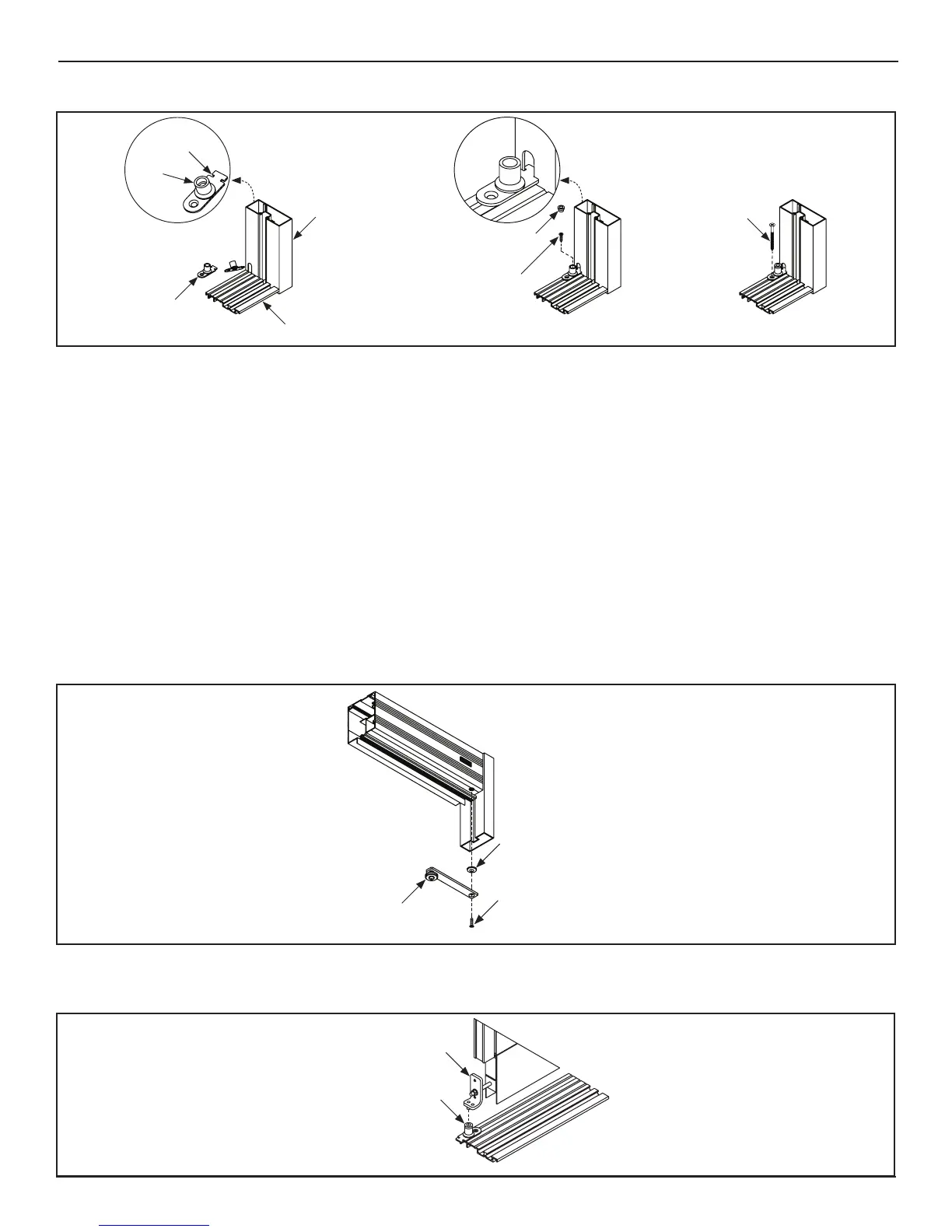

Figure 19 Secure the Floor Pivot
DN 1000
Floor Pivot
Bushing
1/4”-20 x 1”
Phillips Head Screw
Pivot
Jamb Tube
Floor Track
1/4 x 2-3/4”
Flathead Tapcon
Notch
Barrel
3. Insert (1) 1/4-20 x 1 inch Phillips Head screw into the Barrel of the Floor Pivot.
4. Secure the Floor Pivot to the Floor Track.
5. Cap the Barrel with (1) Bushing.
6. Go to the screw hole located in front of the Barrel.
7. With a 1/4 inch Masonry drill bit, drill through the track at least 2-3/4 inches.
8. Secure the Floor Pivot to the Floor with (1) 1/4 X 2-3/4 inch Flathead Tapcon.

1. Obtain (1) Limit Arm, (1) Washer, and (1) 1/4-20 x 1 inch Phillips Head screw.
2. Flip the Limit Arm so the Roller Guide is facing down, towards the Top Rail of Swing Sidelite.
3. Insert (1) 1/4-20 x 1 inch Phillips Head screw through the boom of the Limit Arm (so the pointed end is facing up towards
the Header).
4. Slide (1) Washer onto the exposed end of the 1/4-20 x 1 inch Phillips Head screw.
5. Go to the pre-drilled screw hole located at the boom of Header (approximately 6 inches from the Pivot end).
6. Insert the 1/4-20 x 1 inch Phillips Head screw into the screw hole. Loosely ghten (just enough to keep the assembly from
falling out of the screw hole).
a. Limit Arm installaon is completed aer the Swing Sidelite is aached to both Pivots.
Figure 20 Install the Limit Arm
DN 1001
Limit Arm
Washer
1/4-20 x 1”
Phillips Screw
BREAKOUT SIDE

1. Go underneath the Pivot Sle. Insert the Boom Pivot into the Floor Pivot Barrel.
DN 1004
Bo om Pivot
(Located inside Pivot S le)
Floor Pivot
(Installed inside Pivot Jamb Tube)
Figure 21 Insert Bottom Pivot into Floor Pivot Barrel
