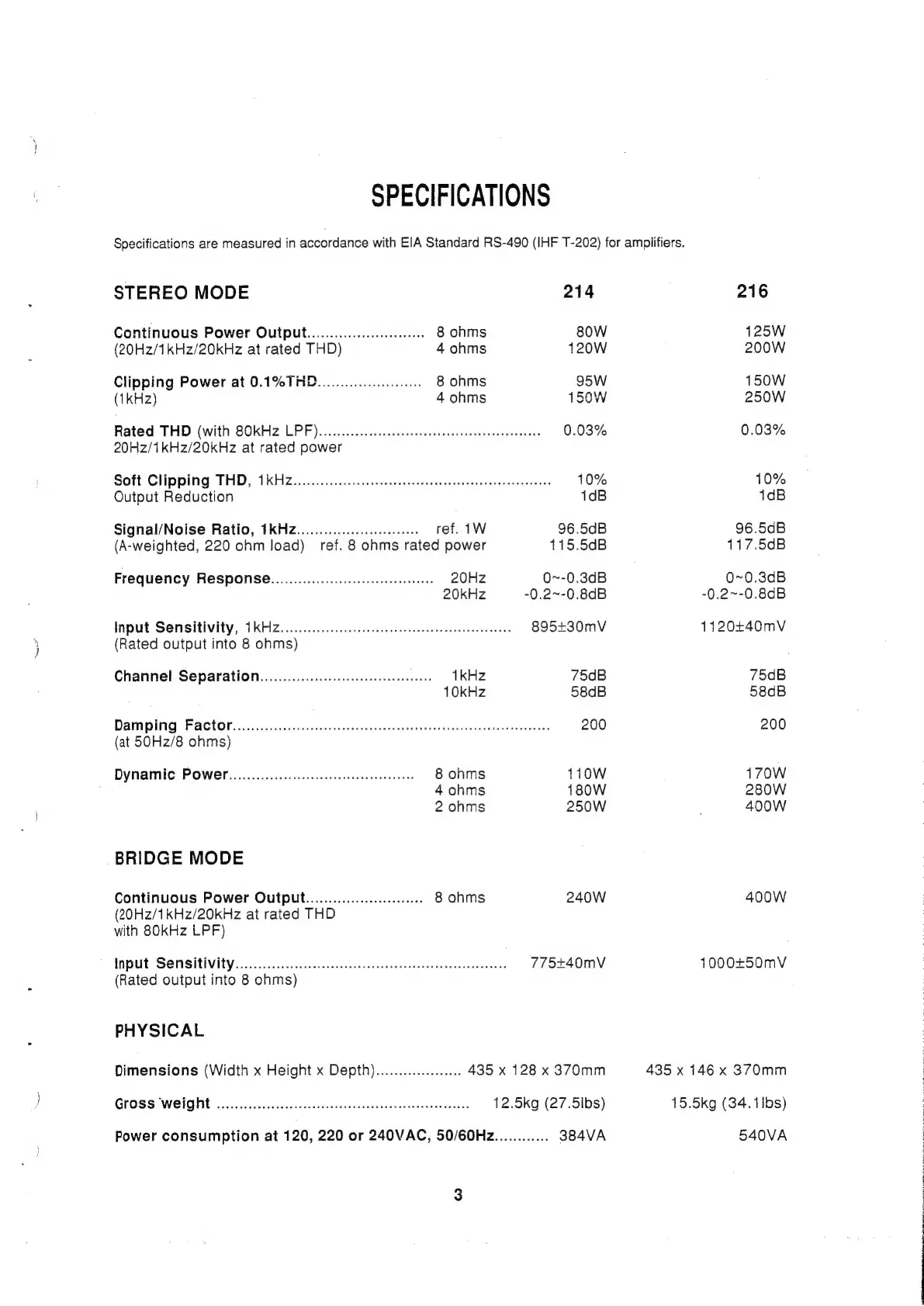

SPECIFICATIONS
Specifications are measured in accordance with EIA Standard RS-490 (IHF T-202) for amplifiers.
STEREO MODE 214
Continuous Power Output... 8 ohms 80W
(20H2/1kHz/20kHz at rated THD) 4 ohms 120W
Clipping Power at 0.1%THD..........0.. 8 ohms 95W
(1kHz) 4 ohms 150W
Rated THD (with 8OKHZ LPF)...........ccccccccseceeeeeeeeeteeeceeeeeeeners 0.03%
20H2/1kHz/20kHz at rated power
Soft Clipping THD, 1KHZ........... ec ccecssseeensennteeeeeeeeeeeeeeeeeeees 10%
Output Reduction 1dB
Signal/Noise Ratio, 1KHZ.......... ee ref. 1W 96.5dB
(A-weighted, 220 ohm load) ref. 8 ohms rated power 115.5dB
Frequency ReSponse............... cece eee eeeeee 20Hz 0~-0.3dB
20kHz -0.2~-0.8dB
Input Sensitivity, 1KHZ...... eee eeseseeeestneeeeeeeeeees 895+30mV
(Rated output into 8 ohms)
Channel Separation.............00..ceceeeeeeees 1kHz 75dB
10kHz 58dB
DAMPING FaCtOlesiecscccsteccassesencestonvsccusiattereeeeagates st qadvusei on vecteaed 200
(at 50Hz/8 ohms)
Dynamic Powe?l............. cece eeeeeeeeeeeeees 8 ohms 110W
4 ohms 180W
2 ohms 250W
BRIDGE MODE
Continuous Power Output........000 8 ohms 240W
(20H2/1kHz/20kHz at rated THD
with 80kHz LPF)
Input Sensitivity.........000 ene eeeeeeeeeeneeeeeeeeeaa es 775+40mV
(Rated output into 8 ohms)
PHYSICAL
Dimensions (Width x Height x Depth)... 435 x 128 x 370mm
Gross Weight seis cerca ehhh ees ethers at 12.5kg (27.5ibs)
Power consumption at 120, 220 or 240VAC, 50/60Hz............ 384VA
216
125W
200W
150W
250W
0.03%
10%
1dB
96.5dB
117.5dB
0~0.3dB
-0.2~-0.8dB
1120+40mV
75dB
58dB
200
170W
280W
400W
400W
1000450mV
435 x 146 x 370mm
15.5kg (34. 1Ibs)
540VA
