NAD 216 - Front Panel Overview; Front Panel Controls and Indicators; Safety Alerts; Rear Panel Overview

WARNING: TO PREVENT FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.

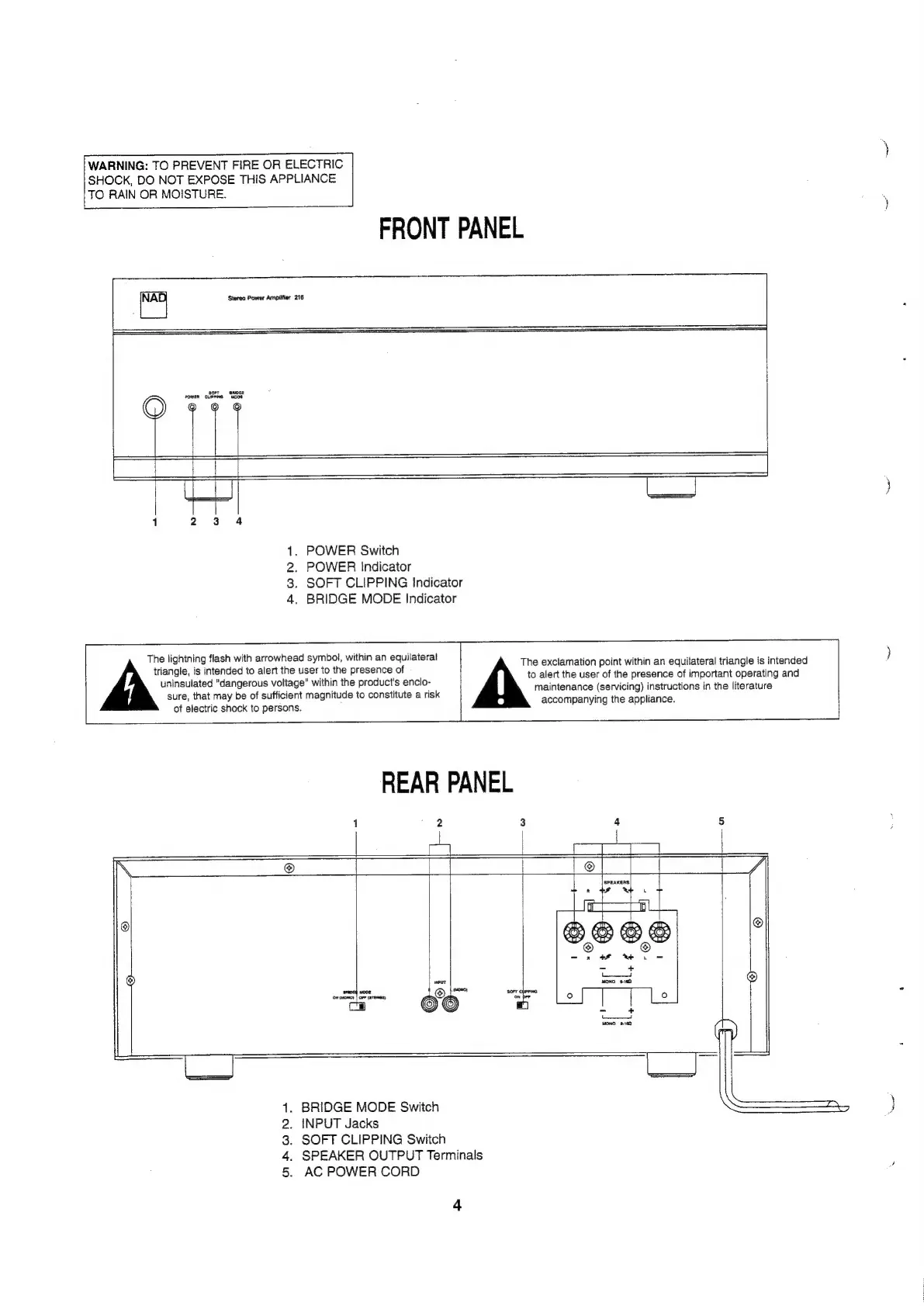

FRONT PANEL
Stereo Power Ampiifier 216
sort snoat
POWER CLIPPING MODE
POWER Switch
POWER Indicator
SOFT CLIPPING Indicator
BRIDGE MODE Indicator
ROMs
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclo-
The exclamation point within an equilateral triangle is intended
to alert the user of the presence of important operating and
maintenance (servicing) instructions in the literature
sure,
that
may
be
of
sufficient
magnitude
to
constitute
a
risk
accompanying
the
appliance.
of electric shock to persons.
REAR PANEL
‘wra0a$ woo
‘Or aMOMO) | OFF (aTERED)
1. BRIDGE MODE Switch
2. INPUT Jacks
3. SOFT CLIPPING Switch
4. SPEAKER OUTPUT Terminals
5. AC POWER CORD
