NAD 314 - Specifications; Power Amplifier Specifications

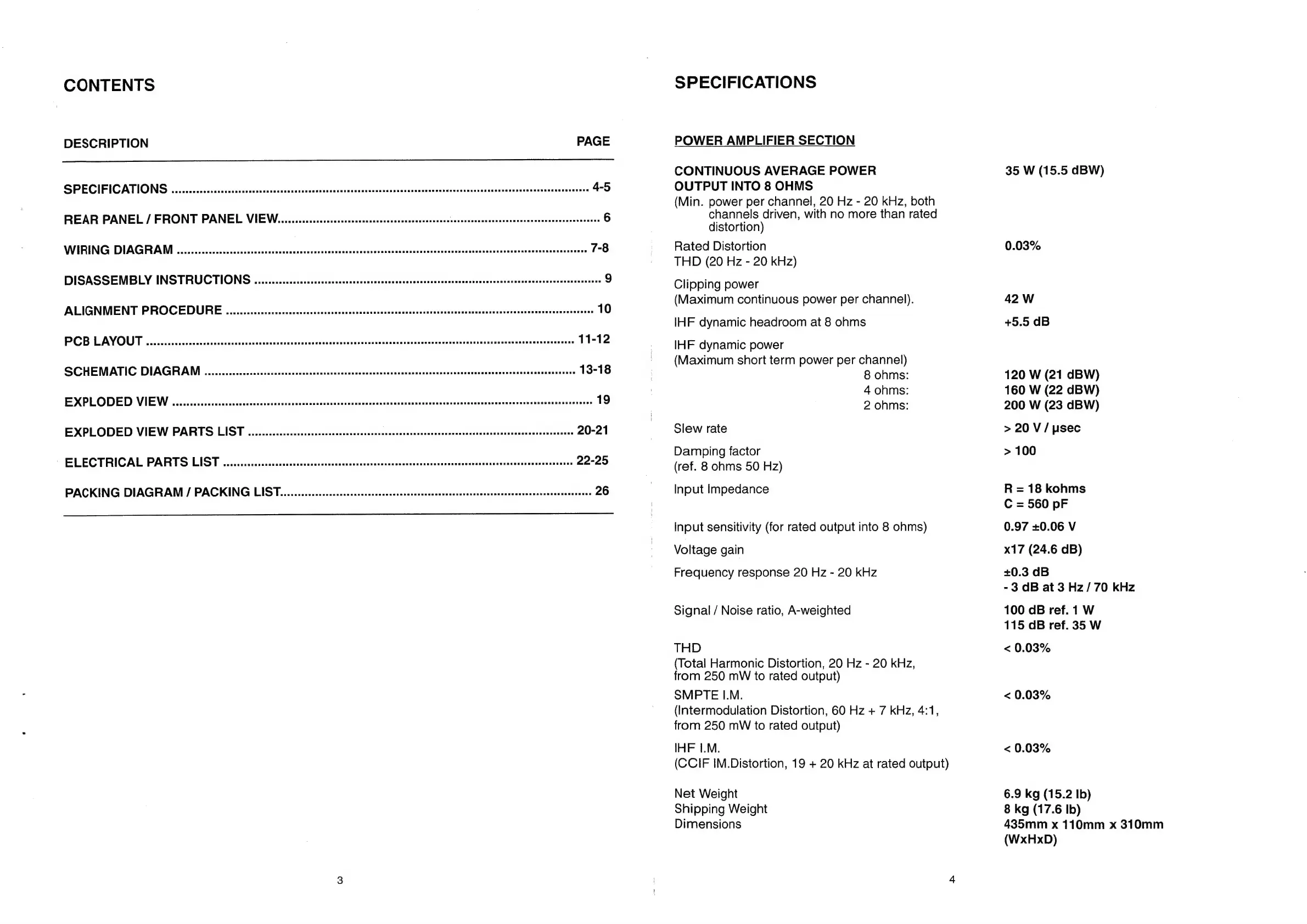

CONTENTS
DESCRIPTION
PAGE
SPECIFICATIONS.
.....cssssssesessessereeesecsccersccesscensssnnnsassnssasccseanansacsensseesnsaenesnanesneasannaneessccansenesenaeesses
4-5
REAR
PANEL
/
FRONT
PANEL
VIEW.........cccsssesseessssesseseesseeensenenees
Kgabucuadaabapheawnageanmacanseabenawanges
6
WIRING
DIAGRAM
...........::ccccssecsesseeessseeensscceesssnnenssssncenenssceeessenneeanaceeenseeenasesennaneeeenauaeeenaenenenane®
7-8
DISASSEMBLY
INSTRUCTIONS
...........:::ecccscnessssnsesssscesssssseseeessceeenseeeenstennsassenssneeessnsnaeeaseanenseaees
9
ALIGNMENT
PROCEDURE
.........::s:eccsseeceessseersesereensssneusensscceusesseeseseeenenecenanesensneneeenenuneceneneeensaees
10
PCB
LAYOUT
.......:2::ecsssescosssnscceseeceenscessnanccssscescsssnnsscssnncenensanecenensecertanssesnscsesnensnansereessenesseneeess
11-12
SCHEMATIC
DIAGRAM
........::cccsscecssssensssceessnsnesessnnsessnsceceeenaenenesseeeenneeeasaeessneeensscaaeaaasaeesenzoees
13-18
EXPLODED
VIEW
.......::ccssessvesseecesstorenseocsensnsesenscnsensnsnessnnencoesenenseeneuenenseasensessnonsusanneneeseaaneeesansenss
19
EXPLODED
VIEW
PARTS
LIST.
.......-..:cscsccsssssssssnsnssenssssesssencesenseesessoeenneassnnesenseuesusenanseecsaners
20-21
ELECTRICAL
PARTS
LIST
......:cc::sccssesesescsenenseusenssnrsssscccesessenecsnecsesessorsnsesssasensnenaerenenenenensas
22-25
PACKING
DIAGRAM
/
PACKING
LIST.)..........ccccssssssesssscessessseeeesseeesseeesensesneeessneeeenseeesenseeeeneee
26
SPECIFICATIONS
POWER AMPLIFIER SECTION
CONTINUOUS AVERAGE POWER
OUTPUT INTO 8 OHMS
(Min. power per channel, 20 Hz - 20 kHz, both
channels driven, with no more than rated
distortion)
Rated Distortion
THD (20 Hz - 20 kHz)
Clipping power
(Maximum continuous power per channel).
IHF dynamic headroom at 8 ohms
IHF dynamic power
(Maximum short term power per channel)
8 ohms:
4 ohms:
2 ohms:
Slew rate
Damping factor
(ref. 8 ohms 50 Hz)
Input Impedance
Input sensitivity (for rated output into 8 ohms)
Voltage gain
Frequency response 20 Hz - 20 kHz
Signal / Noise ratio, A-weighted
THD
(Total Harmonic Distortion, 20 Hz - 20 kHz,
from 250 mW to rated output)
SMPTE I.M.
(Intermodulation Distortion, 60 Hz + 7 kHz, 4:1,
from 250 mW to rated output)
IHF I.M.
(CCIF IM.Distortion, 19 + 20 kHz at rated output)
Net Weight
Shipping Weight
Dimensions
35 W (15.5 dBW)
0.03%
42 W
+5.5 dB
120 W (21 dBW)
160 W (22 dBW)
200 W (23 dBW)
> 20 V/ usec
> 100
R= 18 kohms
C = 560 pF
0.97 +0.06 V
x17 (24.6 dB)
+0.3 dB
- 3 dB at 3 Hz/ 70 kHz
100 dB ref. 1 W
115 dB ref. 35 W
< 0.03%
< 0.03%
< 0.03%
6.9 kg (15.2 Ib)
8 kg (17.6 Ib)
435mm x 110mm x 310mm
(WxHxD)
