NAD 5420 - Specifications

CONTENTS
SAFETY INFORMATION anal
FRONT/REAR PANEL CONTROLS 7
CONTENTS AND SPECIFICATIONS
ALIGNMENT PROCEDURE
PICK-UP REPLACEMENT
WIRING DIAGRAM
ADJUSTMENT POINTS
CIRCUIT DIAGRAM
P.C.B. LAYOUT(PARTS SIDE)
REMOTE CONTROL CIRCUIT
MECHANISM EXPLODED VIEW
MECHANISM EXPLODED PARTS LIST
ELECTRICAL PARTS LIST
EXPLODED VIEW
PACKING DIAGRAM
SERVICE CONTACT INFORMATION

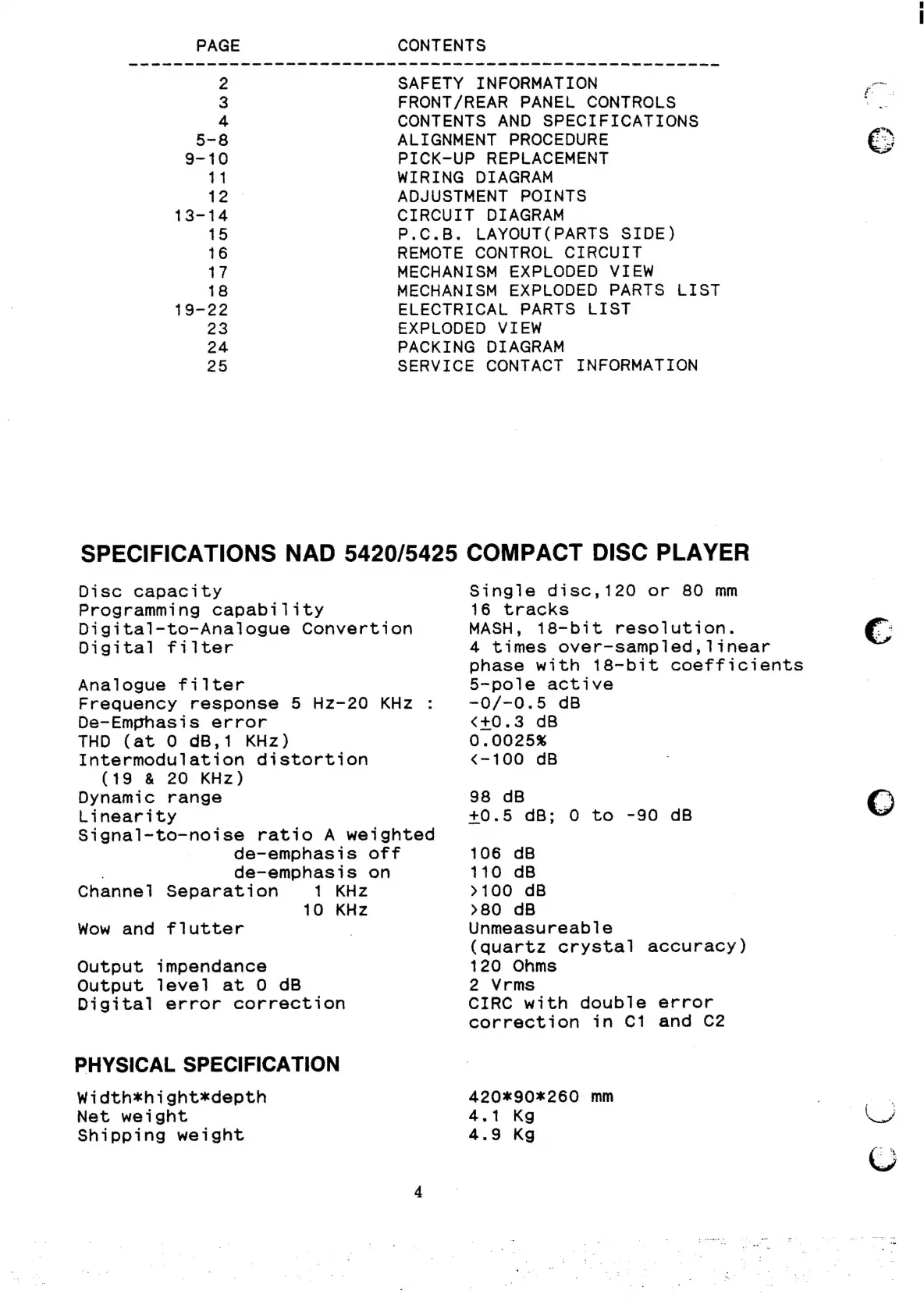

SPECIFICATIONS NAD 5420/5425 COMPACT DISC PLAYER
Disc capacity
Programming capability
Digital-to-Analogue Convertion
Digital filter
Analogue filter
Frequency response 5 Hz-20 KHz
De-Emphasis error
THD (at O dB,1 KHz)
Intermodulation distortion
(19 & 20 KHz)
Dynamic range
Linearity
Signal-to-noise ratio A weighted
de-emphasis off
. de-emphasis on
Channel Separation 1 KHz
10 KHz
Wow and flutter
Output iImpendance
Output level at O dB
Digital error correction
PHYSICAL SPECIFICATION
Width*hightxdepth
Net weight
Shipping weight
Single disc,120 or 80 mm
16 tracks
MASH, 18-bit resolution.
4 times over-sampled, linear
phase with 18-bit coefficients
5-pole active
~0/-0.5 dB
<+0.3 dB
0.0025%
<~100 dB
98 dB
+0.5 dB; 0 to -90 dB
106 dB
110 dB
>100 dB
»80 dB
Unmeasureable
(quartz crystal accuracy)
120 Ohms
2 Vrms
CIRC with double error
correction in Ci and C2
420*90*260 mm
4.1 Kg
4.9 Kg
