NAD C 546BEE Service Manual

- 11 -
PRECAUTIONS WHEN CHANGING LASER PICK-UP

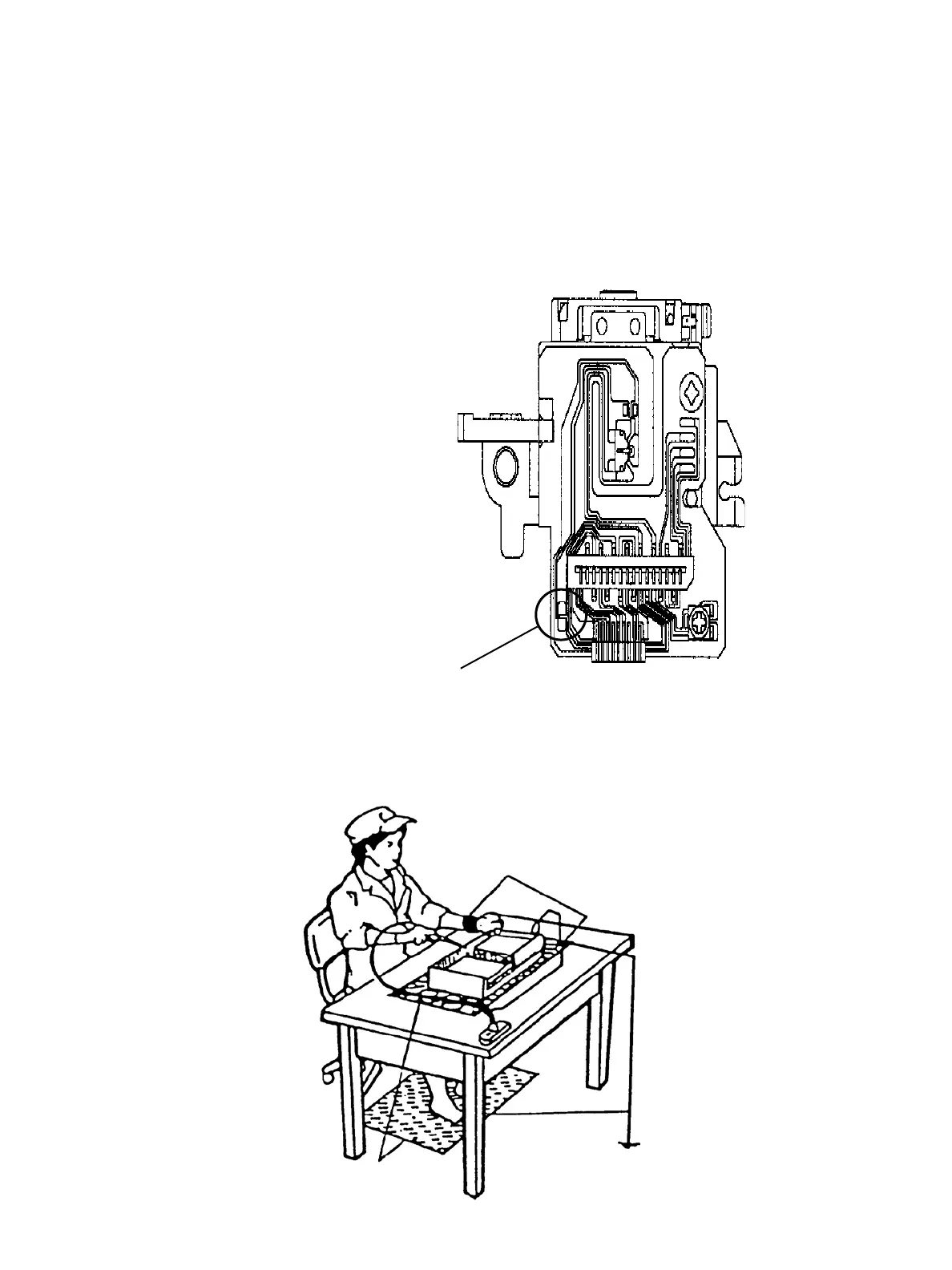

When removing the pick-up assembly, short circuit the PCB tracks on the optical block as show in the drawing in
order to protect the pick-up before removal.
NOTE: Replacement pick-up assemblies are supplied with the PCB pattern already protected.
DO NOT REMOVE THE SHORT CIRCUITS UNTIL YOU HAVE FINISHED FITTING THE PICK-UP.
Caution:
Laser diodes are extremely susceptible to damage from static electricity. Even if a static discharge does not ruin
the diode, it can shorten its life or cause it to work improperly. When replacing the pick-up, use a conductive mat, a
grounded soldering iron, and so on, to protect the laser diode from static damage.
Ground Conductive
Wrist Band for Body
Ground Line
Less than
10 ohm
Conductive Gum Mat
Soldering
Iron with
Ground
wire
Protective soldering place
for laser diode

NAD C 546BEE Specifications

General

Frequency range	5 - 20000 Hz
Audio formats supported	MP3, WMA
Signal-to-Noise Ratio (SNR)	118 dB
Total Harmonic Distortion (THD)	0.0035 %
CD-R playback	Yes
Device type	Portable CD player
Product color	Graphite
Channel separation	110 dB
Playback disc types	CD-R, CD-RW
Disc types supported	CD-R
Power	9 W
Power source type	AC
AC adapter input voltage	230 V
Power consumption (standby)	0.5 W
USB 2.0 ports quantity	1
Package weight	6300 g

Weight and Dimensions

Depth	435 mm
Width	307 mm
Height	89 mm
Weight	4900 g
