NAD M25 C - Front Panel Controls

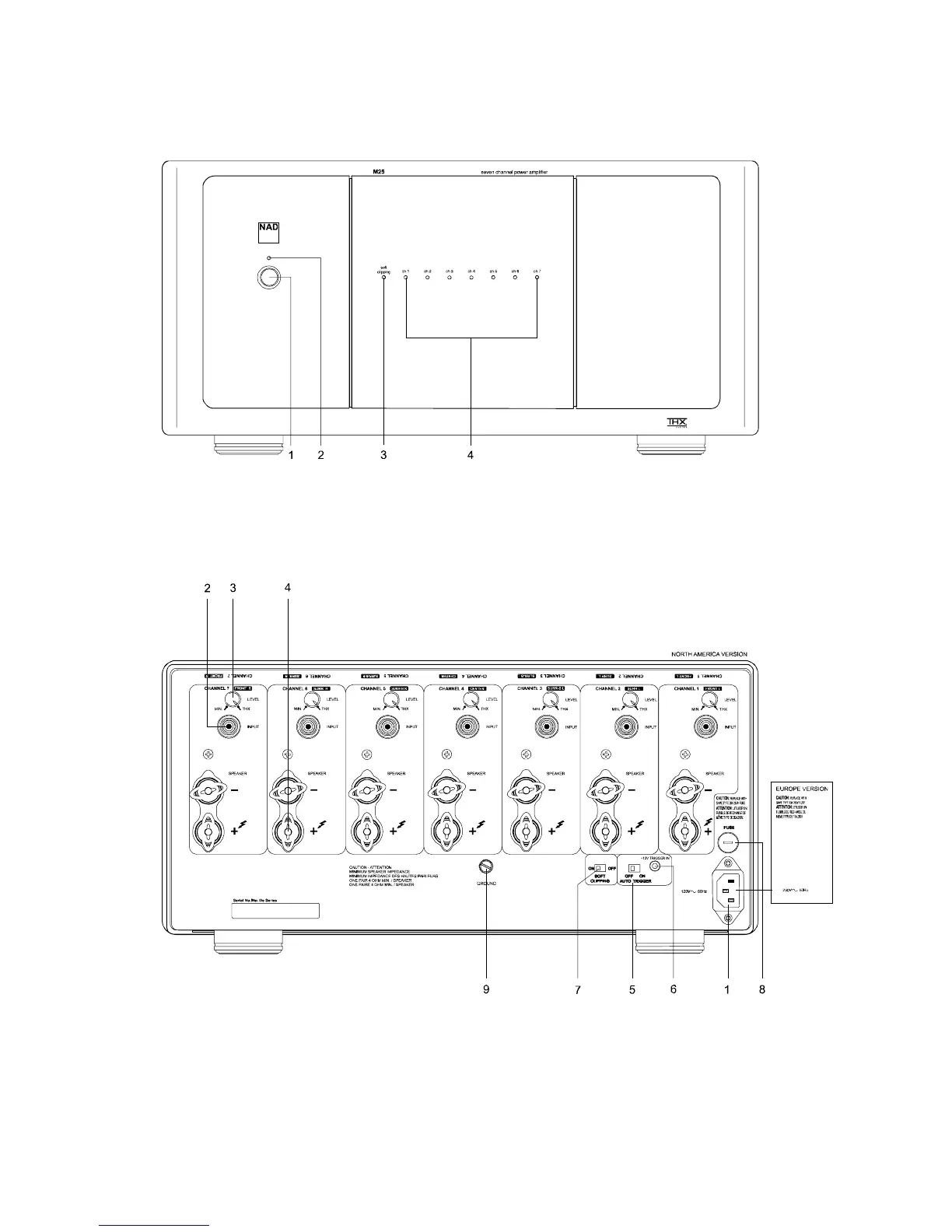

FRONT PANEL / REAR PANEL VIEW
FRONT PANEL CONTROLS
1. POWER SWITCH
2. POWER INDICATOR
3. SOFT CLIPPING INDICATOR
4. PROTECTION INDICATOR
1. AC INLET
2. INPUT JACK
3. LEVEL CONTROL
4. SPEAKER TERMINALS
5.AUTO TRIGGER SWITCH
6. 12V TRIGGER INPUT
7. SOFT CLIPPING SWITCH
8. MAINS FUSE
9. GROUND TERMINAL
-3-
