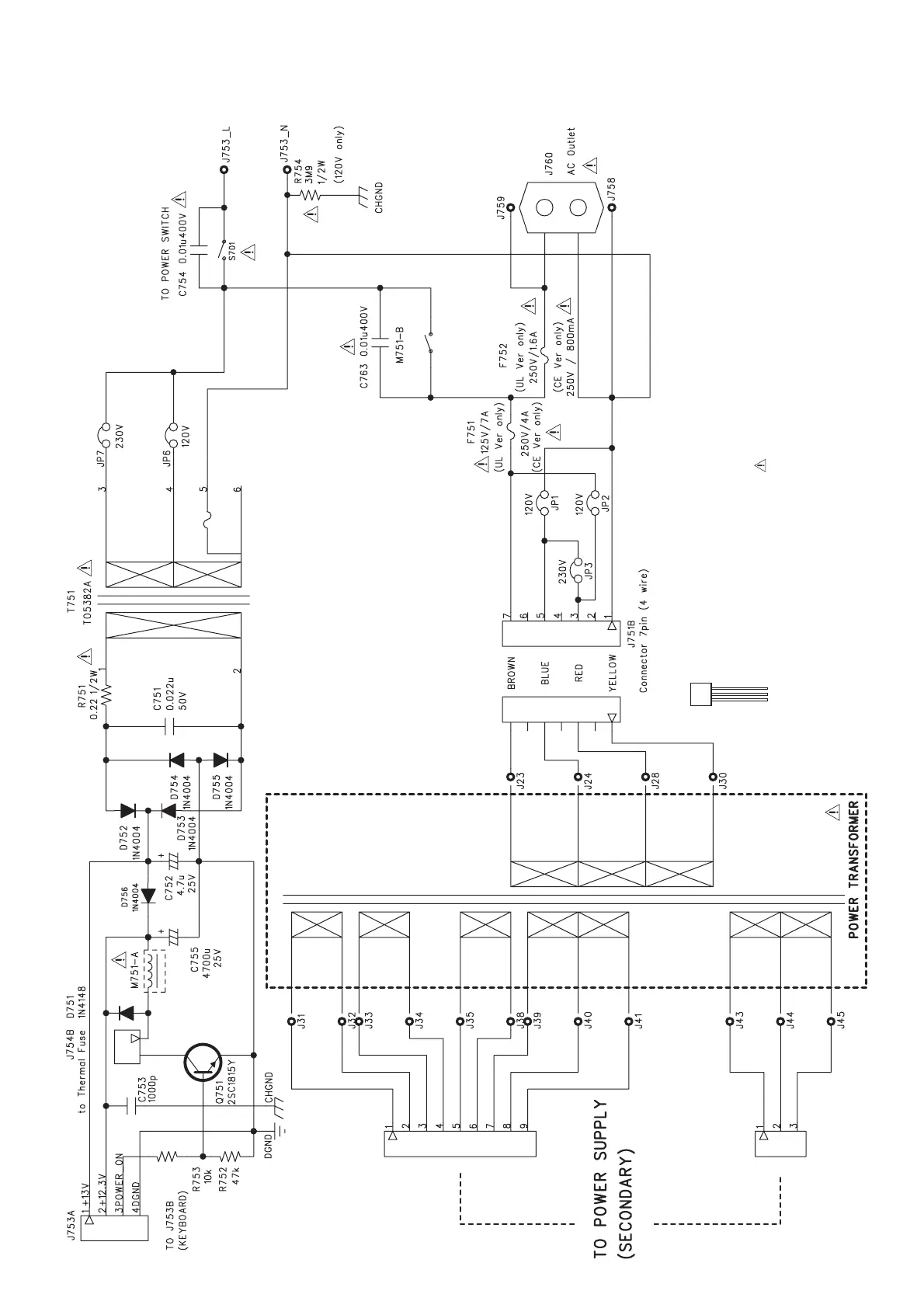

POWER SUPPLY (STAND BY)
E C B
2SC1815
RESISTORS : F-FUSIBLE, UNLESS OTHERWISE SPECIFIED ARE CARBON FILM.
NOTE: 1. RESISTORS, UNLESS OTHERWISE SPECIFIED, ARE 1/6W, 5%.
2. COMPONENTS MARKED
ARE SAFETY CRITIAL PARTS.
