NAC 252 Connections

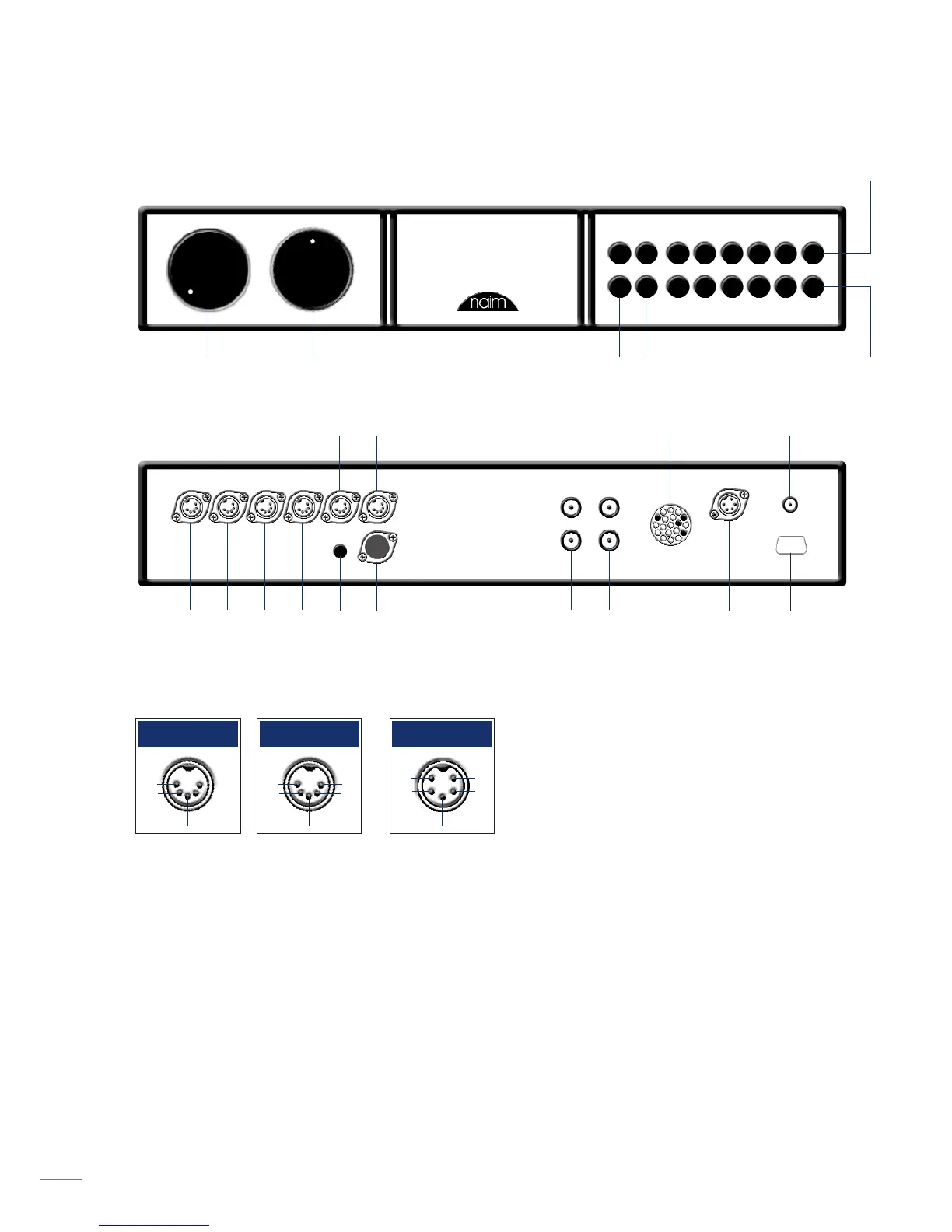

9.1 Front
9.2 Rear
volume
in 1
cd
in 2
tuner
in 3
tape
in 4
a/v
in 5
aux 1
in 6
aux 2
cd
phono
ch 1
ch 2
signal
ground
aux 2
phono
ch 1
ch 2
Supercap
in
balance
mono
source selectors
record selectorsmute
rc5 control inSupercap in
Specifications
NAC 252 and Supercap
Input sensitivities: 75mV, 47kΩ
Overload margins: 40dB (all inputs all audio
frequencies)
Main output level: 0.775V, <50Ω
Tape output level: 75mV, 600Ω
Auxiliary power outputs: To suit Stageline or Prefix
phono stage, or Headline
headphone amplifier.
Case size (H x W x D): 87 x 432 x 314mm
Mains Supply: 100V. 115V. 230V - 50/60Hz
(Supercap)
ch1
in
-ve
ch 2
in
Inputs 1, 2 & 6
ch1
in
ch1
out
ch2
out
-ve
ch 2
in
Inputs 3, 4 & 5
+ve
+ve
ch1
-ve
ch 2
Input 6
(alternative)
in 6 (alternative)
optional
RS232 data
port
Note
The NAC 252 AUX 2 input is provided with two sockets. The
lower socket, fitted on delivery with a blanking cover, is
intended for use with a Stageline or Prefix phono stage and
incorporates an appropriate DC power supply. The two
sockets must not be used simultaneously.
