NAIM NAC 112 - ISSUE 2 - NAC 252 Power Supply Connection

11
NAC 252 Connections

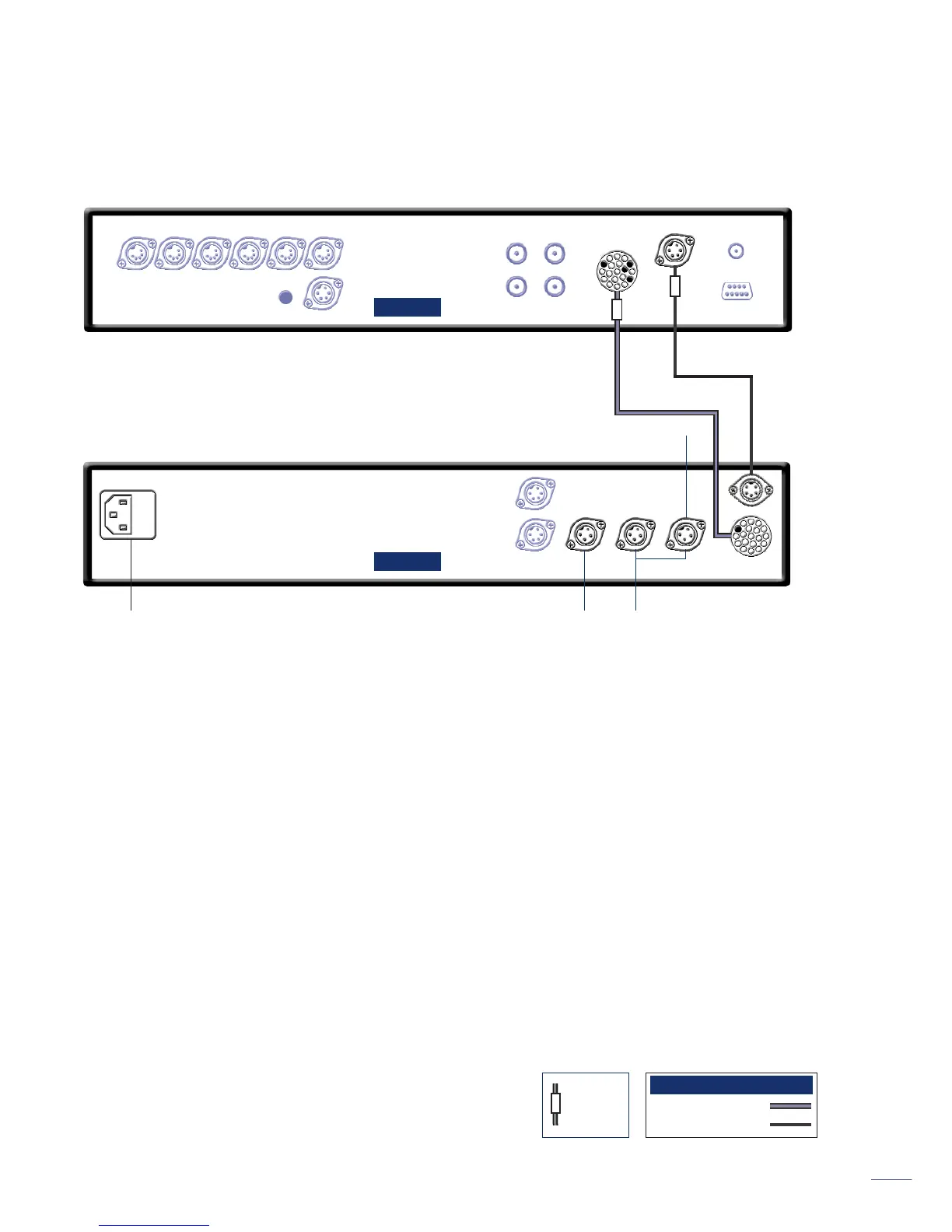

9.3 NAC 252 connection to Supercap power supply
NAC 252 Burndy
240° 5 to 5 pin DIN
Interconnect Cables
cable
direction
marker
Note
For best performance the
Burndy and 5 pin DIN
cables should be run as
close together as
possible.
mains input
to stereo power amplifiers
to mono or dual mono
power amplifiers
additional signal output
SUPERCAP
NAC 252
