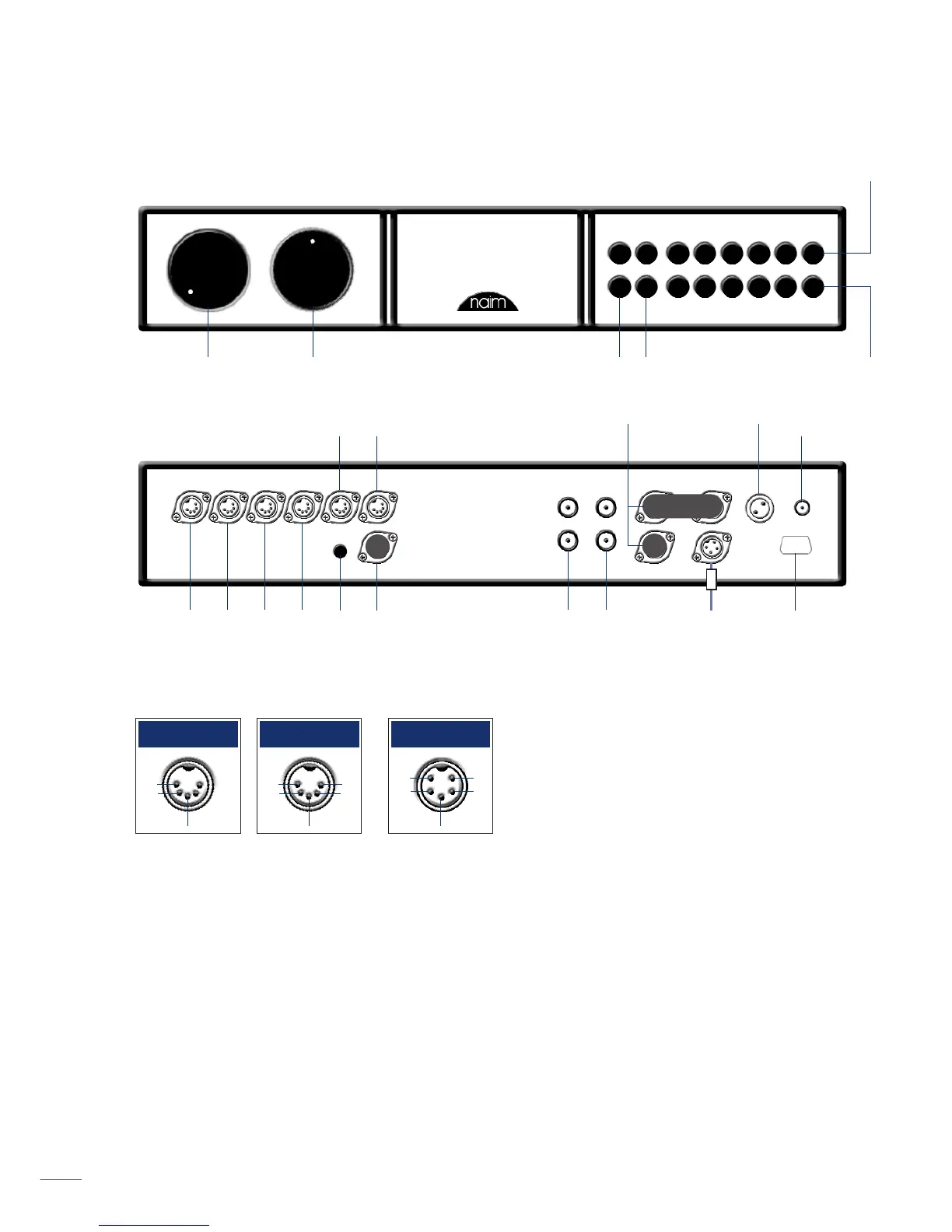

NAC 282 Connections
11.1 Front
11.2 Rear
volume
in 1
cd
in 2
tuner
in 3
tape
in 4
a/v
in 5
aux 1
in 6
aux 2
cd
phono
ch 1
ch 2
signal
ground
aux 2
phono
ch 1
ch 2
balance
mono
source selectors
record selectorsmute
rc5 control in
to NAPSC
Power supply/output option sockets
with link and blanking plugs fitted
Specifications
NAC 282 and NAPSC
Input sensitivities: 75mV, 47kΩ
Overload margins: 40dB (all inputs all audio
frequencies)
Main output level: 0.775V, <50Ω
Tape output level: 75mV, 600Ω
Auxiliary power outputs: To suit Naim Stageline phono
stage, or Headline headphone
amplifier.
Case size (H x W x D): 87 x 432 x 314mm
Mains Supply: 100V. 115V. 230V - 50/60Hz
(NAPSC)
ch1
in
-ve
ch 2
in
Inputs 1, 2 & 6
ch1
in
ch1
out
ch2
out
-ve
ch 2
in
Inputs 3, 4 & 5
+ve
+ve
ch1
-ve
ch 2
Input 6
(alternative)
in 6 (alternative)
to power
amplifier with
internal
power supply
Note
The NAC 282 AUX 2 input is provided with two sockets. The
lower socket, fitted on delivery with a blanking cover, is
intended for use with a Stageline or Prefix phono stage and
incorporates an appropriate DC power supply. The two
sockets must not be used simultaneously.
optional
RS232 data
port
