NAIM NAC 112 - ISSUE 2 - NAC 282 Power Supply Connections

15
NAC 282 Connections

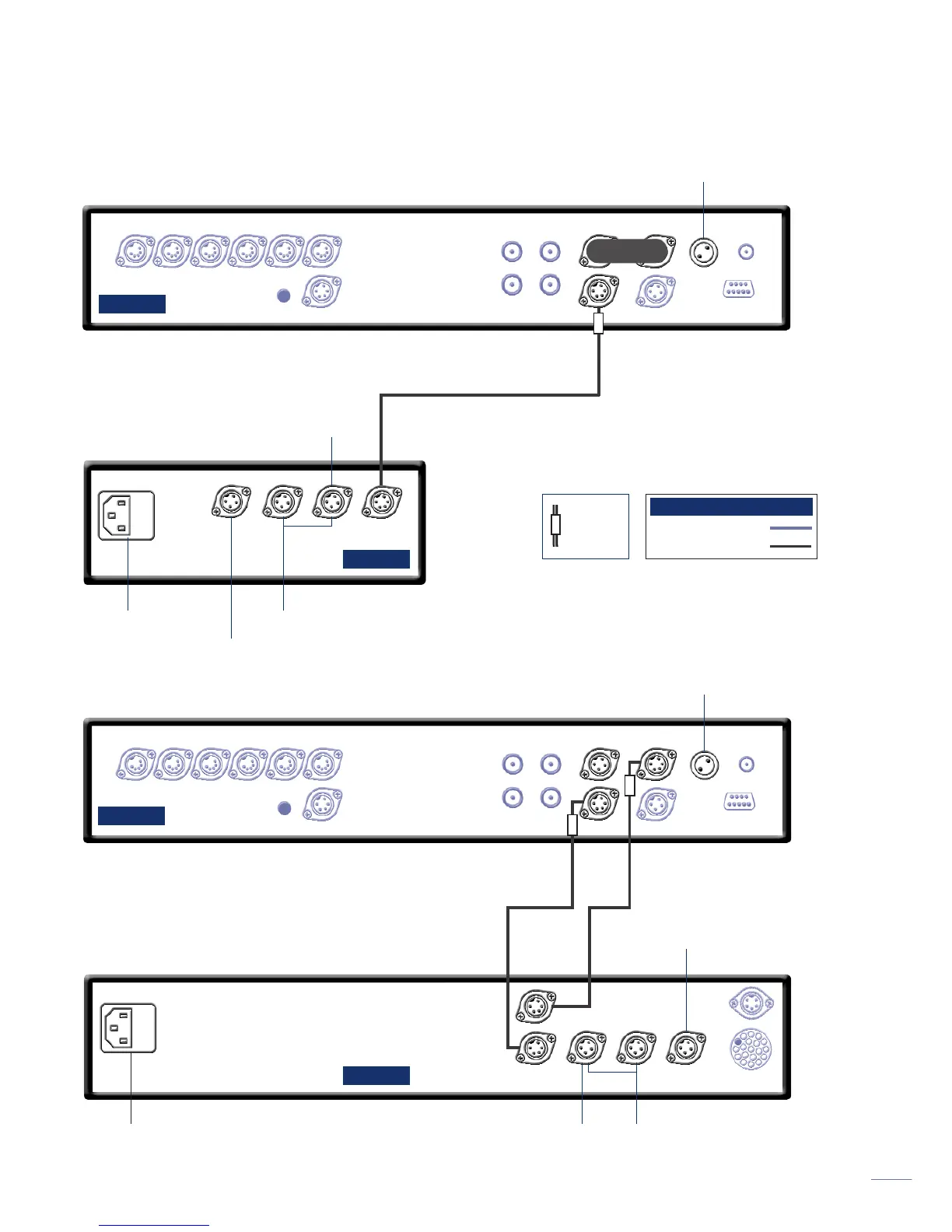

11.3 NAC 282 connection to Hi-Cap power supply
cable
direction
marker
mains input
to stereo power amplifiers
additional signal output
to mono or dual mono
power amplifiers
to NAPSC
11.4 NAC 282 connection to Supercap power supply
to NAPSC
mains input
additional signal
output
to mono or dual mono
power amplifiers
to stereo
power amplifiers
Note
NAC 282 can also be powered by two Hi-Cap supplies. In
this case they are connected to the same sockets as the
two Supercap power supply cables.
HI-CAP
NAC 282
NAC 282
SUPERCAP
4 to 4 pin DIN
240° 5 to 5 pin DIN
Interconnect Cables
