NAC 202 Connections

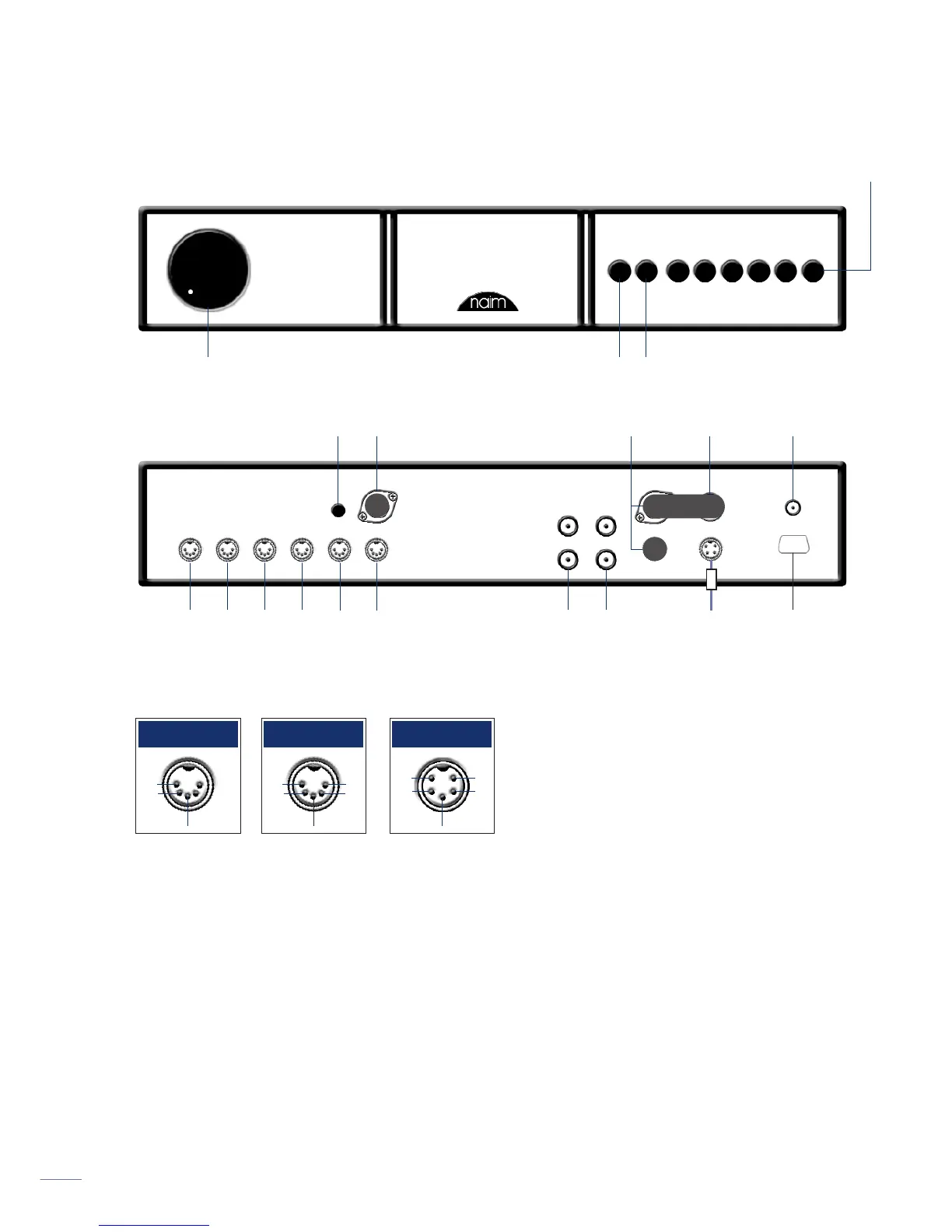

13.1 Front
13.2 Rear
volume
in 1
cd
in 2
tuner
in 3
tape
in 4
a/v
signal
ground
in 6
(alternative)
cd
phono
ch 1
ch 2
in 5
aux 1
aux 2
phono
ch 1
ch 2
mon
source selectors
mute
rc5 control in
to NAPSC
(optional)
Power supply/output
option sockets with
link and blanking
plugs fitted
Specifications
NAC 202
Input sensitivities: 75mV, 47kΩ
Overload margins: 40dB (all inputs all audio
frequencies)
Main output level: 0.775V, <50Ω
Tape output level: 75mV, 600Ω
Auxiliary power outputs: To suit Stageline or Prefix
phono stage, or Headline
headphone amplifier.
Case size (H x W x D): 87 x 432 x 314mm
ch1
in
-ve
ch 2
in
Inputs 1, 2 & 6
ch1
in
ch1
out
ch2
out
-ve
ch 2
in
Inputs 3, 4 & 5
+ve
+ve
ch1
-ve
ch 2
Input 6
(alternative)
in 6
aux 2
to power
amplifier with
internal
power supply
Note
The NAC 202 AUX 2 input is provided with two sockets. The
upper socket, fitted on delivery with a blanking cover, is
intended for use with a Stageline or Prefix phono stage or a
Headline headphone amplifier and incorporates an
appropriate DC power supply. The two sockets must not be
used simultaneously.
optional
RS232 data
port
