NAC 202 Connections

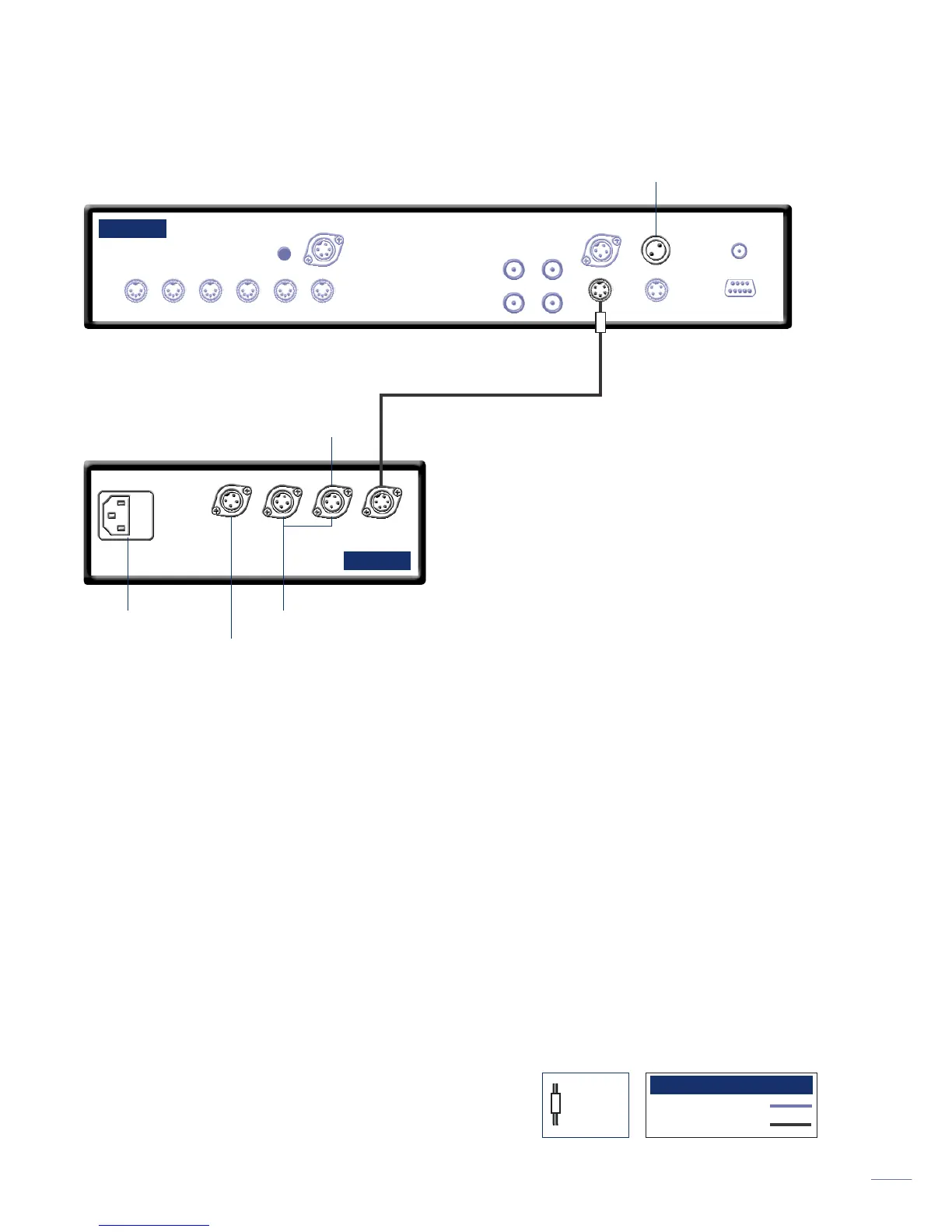

13.3 NAC 202 connection to Hi-Cap power supply
cable
direction
marker
mains input
to stereo power amplifiers
additional signal output
to mono or dual mono
power amplifiers
to NAPSC (optional)
Note
NAC 202 may also be powered by Supercap or Flatcap 2
power supplies connected in a similar manner to the Hi-Cap.
Note
The NAPSC socket to 4
pin DIN link plug must
remain in place if no
NAPSC is used.
4 to 4 pin DIN
240° 5 to 5 pin DIN
Interconnect Cables
NAC 202
HI-CAP
