22

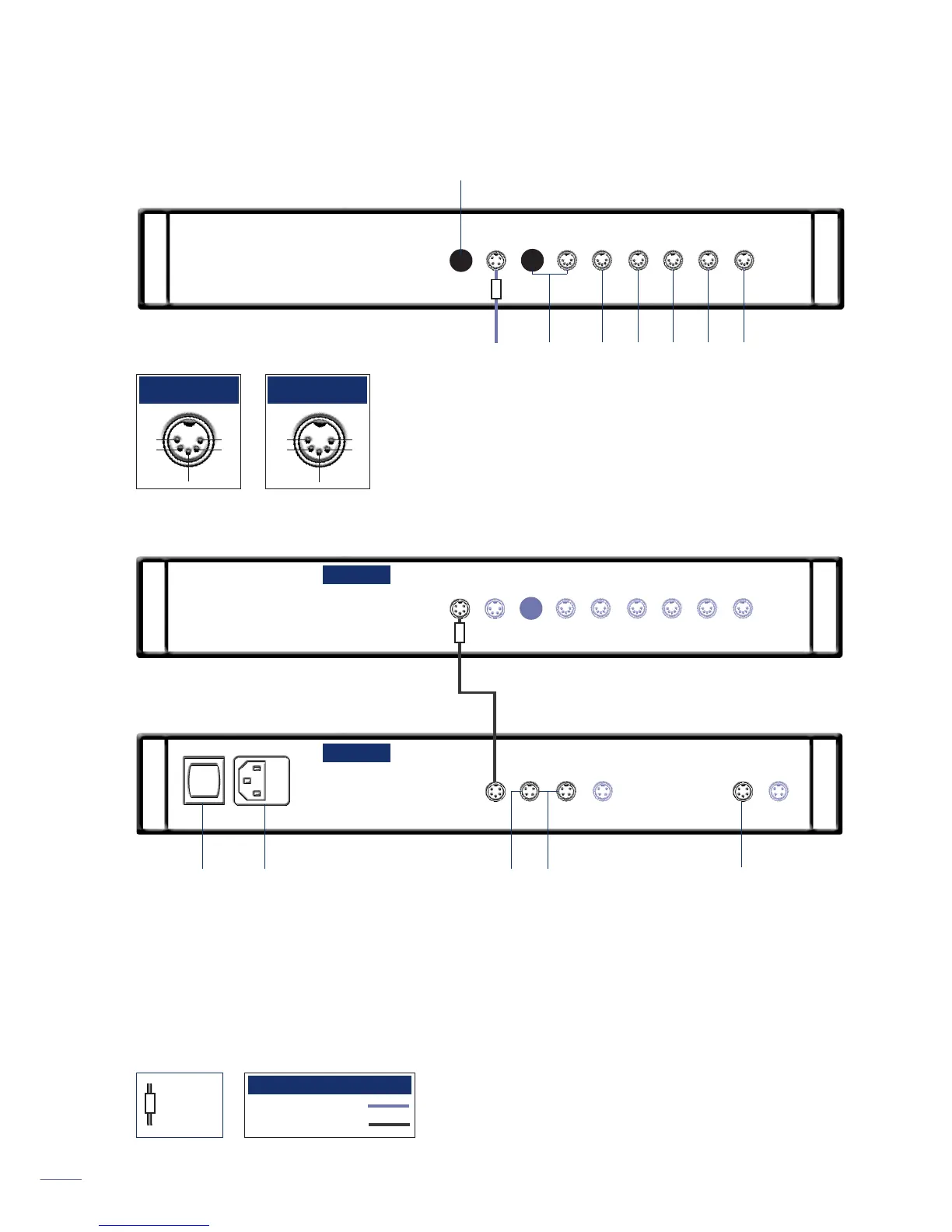

15.2 NAC 112 connected to FLATCAP 2 Power Supply
NAC 112 Connections
ch1
in
ch1
out
ch2
out
-ve
ch2
in
ch1
in
ch2
in
TAPE, AV & AUX 1
Inputs
nc
nc
-ve
CD, TUNER & AUX
2 Inputs
Note
The NAC 112 features various technologies to reduce
microphonic effects, in particular a compliant mounting for
the main circuit boards and the DIN sockets on the rear.
Some movement of the board and sockets when
connecting/disconnecting is normal.
Note
The NAC 112 AUX 2 input is provided with two sockets. The
left hand socket, fitted on delivery with a blanking cover, is
intended for use with a Stageline or Prefix phono stage or a
Headline headphone amplifier and incorporates an
appropriate DC power supply. The two sockets must not be
used simultaneously.
cd tuner tape av
aux 1 aux 2
to stereo power amplifiers with
preamplifier power supply output
power
mains input
for CD5, Headline or
Stageline. Additional
interconnects
required.
to stereo power
amplifiers
to mono or dual
mono power
amplifiers
NAC 112
FLATCAP 2
15.1 NAC 112 rear
cable
direction
marker
Specifications
NAC 112
Input sensitivities: 75mV, 47kΩ
Overload margins: 35dB (all inputs, all audio
frequencies)
Main output level: 0.775V, <50Ω
Tape output level: 75mV, 600Ω
Auxiliary power outputs: To suit Stageline or Prefix
phono stage, or Headline
headphone amplifier.
Case size (H x W x D): 69.4 x 432 x 301mm
Mains Supply: 100V. 115V. 230V - 50/60Hz
4 to 4 pin DIN
240° 5 to 5 pin DIN
Interconnect Cables
Power supply/output option socket
with link and blanking plug fitted
