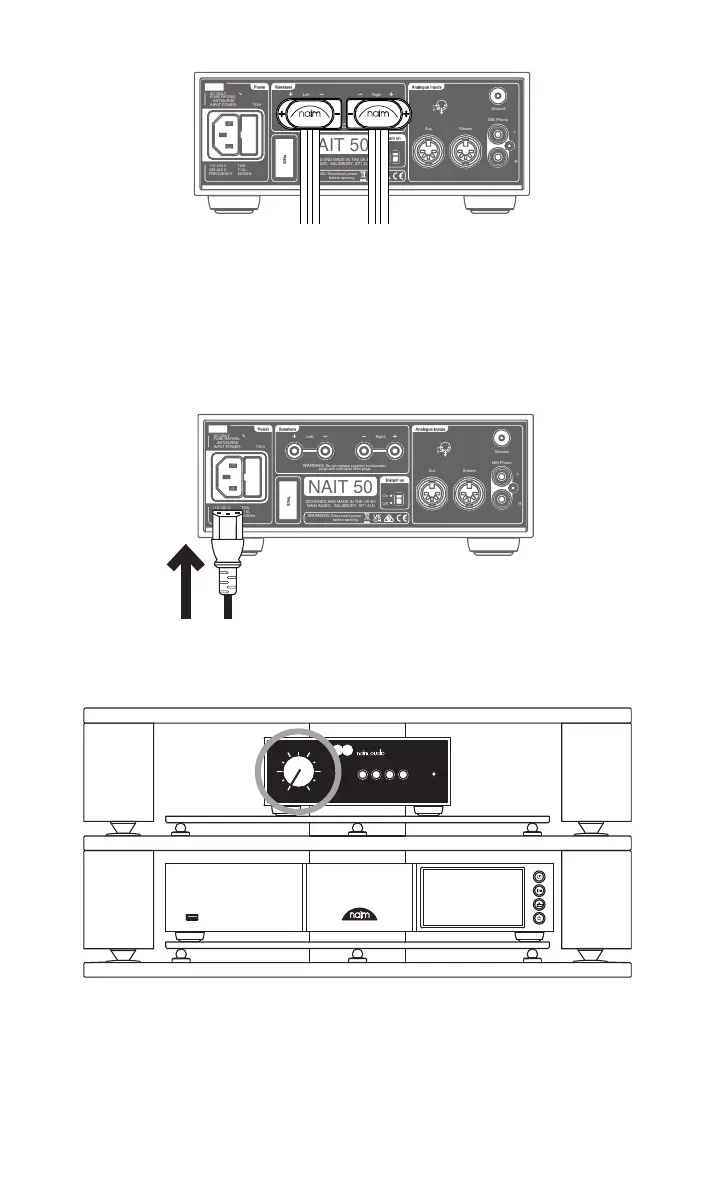

Finally, connect the power cable to the NAIT 50.
Check that the volume is at minimum, then turn on the source and, lastly, the
NAIT 50.
For more information, see section 5.4
Connect speaker cables to the NAIT 50, ensuring each cable is connected to
the correct speaker and both are in phase.
For more information, see section 5.3.
