FPΣ
Installation and Wiring
5-4

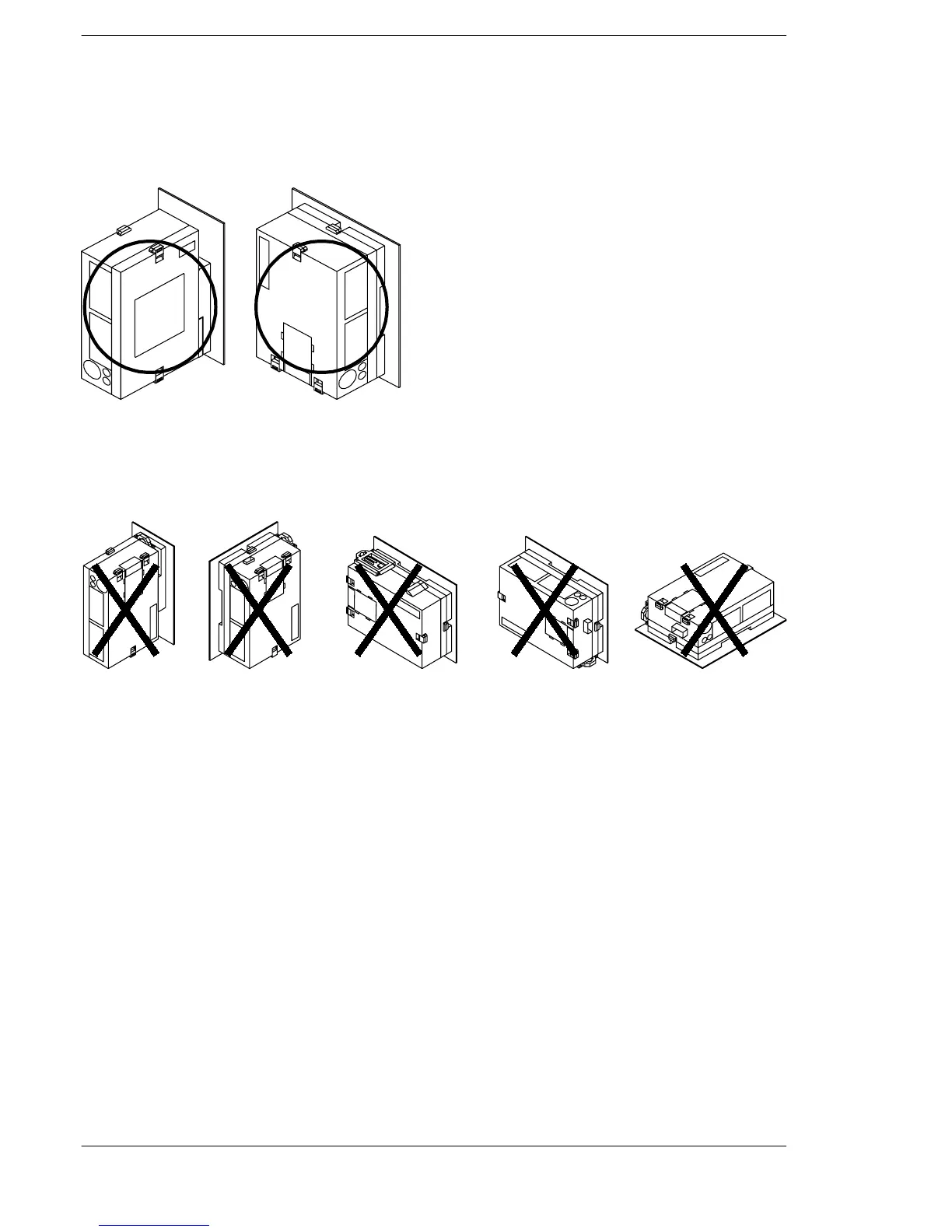

Measures regarding heat discharge
Always install the unit orientated withthe tool port facing outward onthe bottom in order
to prevent the generation of heat.
CORRECT
Figure 23: FPΣ Installation-heat discharge
Do not install the FPΣ control unit as shown below.
Upside-down Installation which
blocks the air duct
Installations such that
the input and output
connectors face down
Input and output
connectors on top
Horizontal
installation of the unit
INCORRECT
Figure 24: FPΣ Installation direction
Donotinstalltheunitabove deviceswhichgenerateheat suchas heaters, transformers
or large scale resistors.
