NAMCO Time Crisis User Manual

Page 25
7. REMOVING AND REPLACING ASSEMBLIES AND PARTS
7-1 Replacing the Monitor
The monitor is heavy. At least two people are required to remove the monitor.

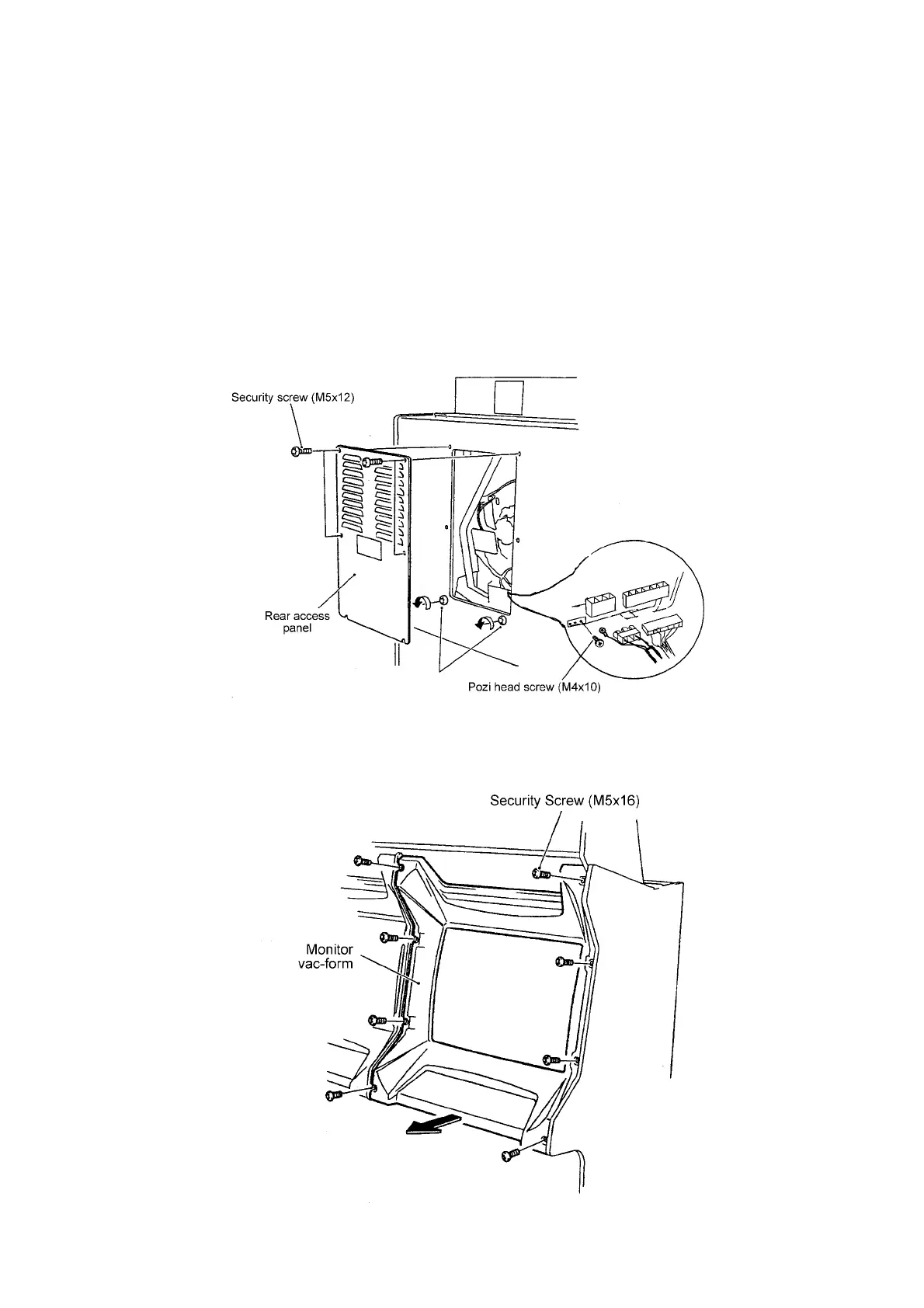

1. Remove the 2off upper security screw (M5x12) and slacken the 2off lower
security screw (M5x12), and remove the monitor rear access panel.
2. Remove the pozi head screw (M4x10) and remove the Earth wire and
connectors from the monitor.
3. Remove 8off security screw (M5x16) and remove the monitor vac-form.
